INDOOR UNIT (HYDRO BOX) | – | |
OUTDOOR UNIT | EDLA09DA3V3 | |
Rated Capacity | Heat (kW) | 9.37 |
Cool (kW) | – | |
Rated Input | Heat (kW) | 1.91 |
Cool (kW) | – | |
Leaving water temperature range | Heat (°C) | 15 to 60 |
Cool (°) | – | |
Casing Material | Indoor (mm) | – |
Outdoor (mm) | Painted Galvanised Steel Plate | |
Colour | Indoor | – |
Outdoor | Light Grey (Black Grille) | |
Electric booster heater (kW) | 3 | |
COP (Heating Efficiency) | 4.91 | |
EER (Cooling Efficiency) | – | |
Dimensions (HxWxD) | Indoor (mm) | – |
Outdoor (mm) | 870x1380x460 | |
Weight | Indoor (kg) | – |
Outdoor (kg) | 149 | |
Outdoor operation range | Heat (°C) | -25 to 35 |
Cool (°C) | – | |
Refrigerant charge | R32 (kg) | 3.8 |
Power | 1 Phase, 230V, 50Hz | |
Indoor sound pressure level | (dBA) | – |
Outdoor EPA sound power level | Heat (dBA) | 62 |

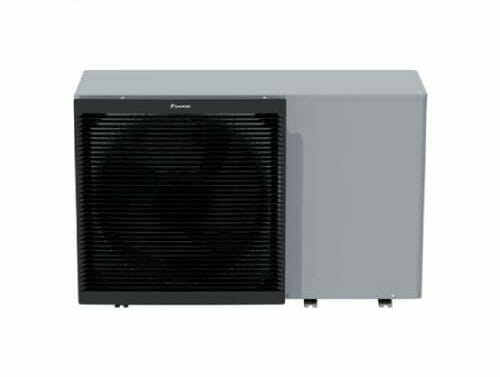

Daikin Mono-Bloc EDLA09DA3 9.37kW Heating Only Altherma System Air Conditioner
Daikin Mono-Bloc EDLA09DA3 9.37kW Heating Only Altherma System Air Conditioner
System: EDLA09DA3
Outdoor Unit: EDLA09DA3V3
Flow Switch: EKFLSW1
-
Efficient Heating
Utilises free heat from the ambient air to maintain ideal comfort conditions in your home. In addition, the inverter technology inherent in Atherma means your energy savings are even greater.
-
Safe
Works without the need for oil, flammable gas (LPG, Natural) or other hazardous substances thus reducing the potential risks that these fuels can create. Furthermore, there is no need for a gas connection or a fuel tank.
-
R32 Refrigerant
Enables increased energy efficiency and a significant reduction in ‘Global Warming Potential Factor’ – great for the environmentally conscious.
-
Flexible Connection
Compatibility with a range of third-party fan coils, radiators, and underfloor heat emitters ensures the optimal solution can be tailored to your home.
-
Powerful Operation
Even in the coldest weather, the Altherma system is still able to extract heat energy from the ambient air. In the event there is insufficient heat in the outdoor air, Altherma is equipped with a backup heater to cover the shortfall.
-
Zone Control
System controller offers the ability to control the individual water temperature of up to two zones or emitters – ideal for meeting the varying cooling or heating needs of occupants.
Description
9.37 kW Heating
Efficient heating | Flexible Connection
