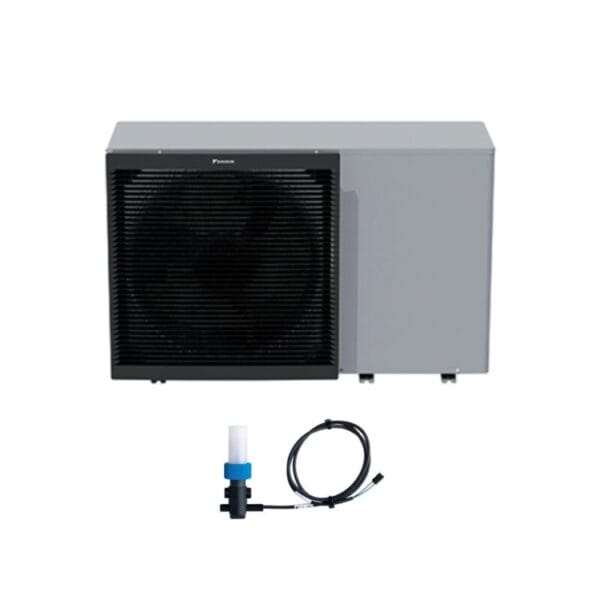

Daikin Mono-Bloc EBLA09DA3 9.1kW Reverse Cycle Altherma System Air Conditioner

SKU: EBLA09DA3

Daikin Mono-Bloc EBLA09DA3 9.1kW Reverse Cycle Altherma System Air Conditioner

System: EBLA09DA3

Outdoor Unit: EBLA09DA3V3

Flow Switch: EKFLSW1


INDOOR UNIT (HYDRO BOX)
OUTDOOR UNIT EBLA09DA3V3
Rated Capacity Heat (kW) 9.37
Cool (kW) 9.1
Rated Input Heat (kW) 1.91
Cool (kW) 1.71
Leaving water temperature range Heat (°C) 15 to 60
Cool (°C) 5 to 22
Casing Material Indoor (mm)
Outdoor (mm) Painted Galvanised Steel Plate
Colour Indoor
Outdoor Light Grey (Black Grille)
Electric booster heater (kW) 3
COP (Heating Efficiency) 4.91
EER (Cooling Efficiency) 5.32
Dimensions (HxWxD) Indoor (mm)
Outdoor (mm) 870x1380x460
Weight Indoor (kg)
Outdoor (kg) 149
Outdoor operation range Heat (°C) -25 to 35
Cool (°C) 10 to 43
Refrigerant charge R32 (kg) 3.8
Power supply 1 Phase, 230V, 50Hz
Indoor sound pressure level (dBA)
Outdoor EPA sound power level Heat (dBA) 62



  • Efficient Operation

    Efficient Heating

    Utilises free heat from the ambient air to maintain ideal comfort conditions in your home. In addition, the inverter technology inherent in Atherma means your energy savings are even greater.

  • Safe

    Works without the need for oil, flammable gas (LPG, Natural) or other hazardous substances thus reducing the potential risks that these fuels can create. Furthermore, there is no need for a gas connection or a fuel tank.

  • R32-Refrigerant

    R32 Refrigerant

    Enables increased energy efficiency and a significant reduction in ‘Global Warming Potential Factor’ – great for the environmentally conscious.

  • Flexible Installation

    Flexible Connection

    Compatibility with a range of third-party fan coils, radiators, and underfloor heat emitters ensures the optimal solution can be tailored to your home.

  • Inverter Powerful Operation

    Powerful Operation

    Even in the coldest weather, the Altherma system is still able to extract heat energy from the ambient air. In the event there is insufficient heat in the outdoor air, Altherma is equipped with a backup heater to cover the shortfall.

  • Zone Control

    System controller offers the ability to control the individual water temperature of up to two zones or emitters – ideal for meeting the varying cooling or heating needs of occupants.

View the brochure of Daikin Altherma Mono-Bloc

Description

9.10 kW Cooling
9.37 kW Heating

Efficient heating | Flexible Connection
