DAIKIN FFA50B-CE2V 5.0kW Compact Cassette Air Conditioner System R32 | 1 Phase
5.0 kW Cooling
6.0 kW Heating

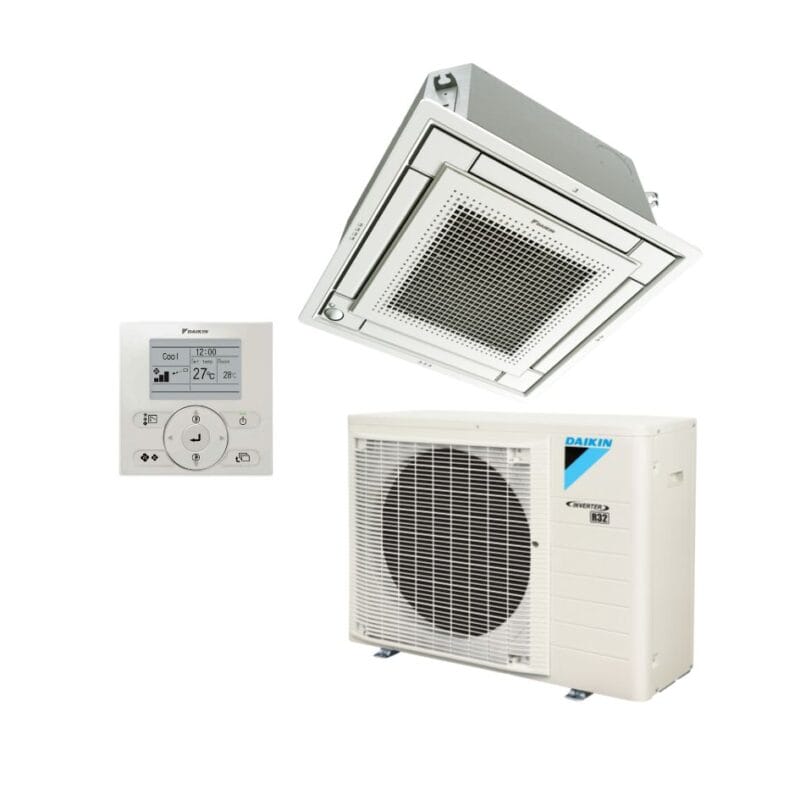

DAIKIN FFA50B-CE2V 5.0kW Compact Cassette Air Conditioner System
Indoor: FFA50BVM / Outdoor: RZAC50E2VM single phase
Fascia: BYFQ60CAW / Wall Controller: BRC1E63
|
Model Name
|
Indoor unit | FFA50BVM | ||
| Outdoor unit | RZAC50E2VM | |||
| Power supply |
1 Phase, 220-240V / 220-230V, 50 / 60Hz
|
|||
| Cooling capacity 1,3 Rated (Min. – Max.) | kW | 5.0 (1.5-6.0) | ||
| Heating capacity 2,3 Rated (Min. – Max.) | kW | 6.0 (1.4-7.0) | ||
|
Power consumption
|
Cooling 1 | kW | 1.11 | |
| Heating 2 | kW | 1.55 | ||
| EER | Cooling | kW/kW | 4.5 | |
| COP | Heating | kW/kW | 3.87 | |
| AEER | Cooling | 4.42 | ||
| ACOP | Heating | 3.82 | ||
|
TCSPF (Cooling) Commercial / Residential
|
Hot | 6.17 / 5.74 | ||
| Average | 6.15 / 5.14 | |||
| Cold | 6.49 / 5.20 | |||
|
HSPF (Heating) Commercial / Residential
|
Hot | 4.87 / 4.87 | ||
| Average | 4.56 / 4.34 | |||
| Cold | 4.12 / 3.84 | |||
|
Indoor unit
|
Colour
|
Unit | ——— | |
| Decoration panel | White | |||
|
Airflow rate (H / M / L)
|
/s | 200 / 167 / 125 | ||
| m3/min | 12.0 / 10.0 / 7.5 | |||
| Sound pressure level 4 (H / M / L) | dB(A) | 39.0 / 34.0 / 27.0 | ||
| Sound power level | dB(A) | 56 | ||
|
Dimensions (HXWXD)
|
Unit | mm | 260X575X575 (+63) 5 | |
| Decoration panel | mm | 46X620X620 | ||
|
Machine weight
|
Unit | kg | 17.5 | |
| Decoration panel | kg | 2.8 | ||
|
Certified operation range
|
Cooling | °CWB | 14 to 23 | |
| Heating | °CDB | 10 to 30 | ||
| Outdoor | Colour | Ivory White | ||
|
unit
|
Compressor
|
Type |
Hermetically sealed swing type
|
|
| Motor output | kW | 1.3 | ||
| Refrigerant charge (R-32) | kg | 1.50 (Charged for 10 m) | ||
| Sound pressure level 4 | Cooling / Heating | dB(A) | 48 / 48 | |
| Sound power level | dB(A) | 62 | ||
| Dimensions (HXWXD) | mm | 695X930X350 | ||
| Machine weight | kg | 54 | ||
|
Certified operation range
|
Cooling | °CDB | -10 to 46 | |
| Heating | °CWB | -15 to 18 | ||
|
Piping connections
|
Liquid (Flare) | mm | o/ 6.4 | |
| Gas (Flare) | mm | o/ 12.7 | ||
|
Drain
|
Indoor unit | mm | VP20 (I.D. o/ 20XO.D. o/ 26) | |
| Outdoor unit 6 | mm | Connectable hose I.D. o/ 16 | ||
| Max. interunit piping length | m | 30 (Equivalent length 45) | ||
| Max. installation height difference | m | 20 | ||
| Heat insulation | Both liquid and gas piping | |||
Round Flow Cassette with Streamer
-
Available in Reverse Cycle (Heating & Cooling)
-
Capacities Premium Inverter: 5.0kW-14.0kW
-
Refrigerant R32
The SkyAir Round Flow Cassette with Streamer utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete. Additionally, its built-in Streamer technology facilitates powerful oxidative decomposition of pollutants present on the cassette’s filter for enhanced indoor air quality.
The Round Flow Cassette with Streamer are paired with our Premium Inverter (RZAV) condensers, offering building owners substantial operating efficiencies to help minimise operating costs. R22 retrofit capability is also available on these condensers allowing for a simplified cost effective replacement solution.
Daikin Compact Cassette Air Conditioners
Available in : Reverse Cycle (Heating & Cooling)
Capacities : 2.5kW, 3.5kW, 5.0kW, 6.0kW, 7.1kW
Refrigerant : R32
Daikin’s SkyAir Compact Cassette is a powerful, efficient and discreet solution for commercial, retail and office-based applications where both aesthetics and performance are paramount.
The Compact Cassette combines the latest technology with innovative functions for high operating efficiency and user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels.
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Daikin SkyAir
Designed for use in shops, restaurants and small offices, Daikin Sky Air provides a comfortable environment for building occupants all year round and offers building owners substantial operating efficiencies to help minimize operating costs.
