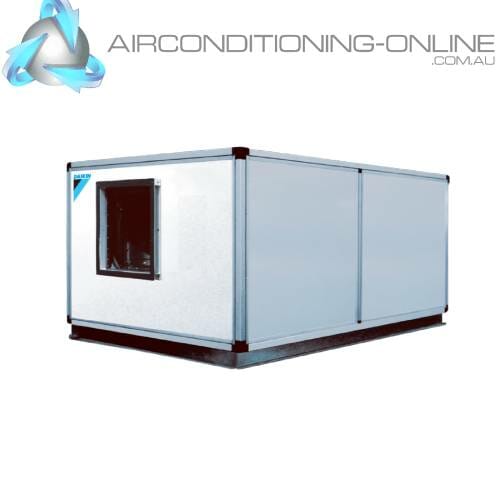

Daikin 20HP VRV Standard AHU 50mm TDSP

SKU: AHUR20DBVJ

An industry first, the VRV air handling unit has been designed and engineered by Daikin to create new opportunities for applying VRV into retail, offices, cinemas and commercial applications with large open spaces.

Highlights:
  • Available in two types, Standard Series or Outdoor Air Series from 6HP to 60HP
  • Daikin’s VRV AHU are paired with VRV IV Heat Pump outdoor units for superior EER & COP performance
  • Harnesses all features of VRV IV Heat Pump including Variable Refrigerant Technology (VRT)*, Daikin’s Inverter Technology and connection to building management systems.
  • ESP of up to 500Pa enables flexible ductwork design
  • Ultimate installation flexibility
    • Double skin with either 25mm or 50mm thick PU insulated panels with thermal break options.
    • Long pipe runs of up to 165m**
    • Custom configurations are also available to suit site constraints



Compare

Features of VRV AHU – Inlet Temperature control

  • Harnessing VRV IV current and latest technology of VRT
  • Inverter controlled system
  • Can be easily controlled via standard wired remote control (BRCIE62)
  • Comes in double skin panel model
  • Easily manage using intelligent Touch Manager central control system
    • Communication protocol using Dill-Net to communicate with all existing Dakin communication devices and even BMS.
  • Can be placed indoor or outdoor

*Optional items required

Benefits of using VR AHU

  • Quality assured
    • VR AHU are manufactured by Daikin factory.
  • Ease of installation
    • No additional system such as cooling tower, chiller, and long water piping system are required. This also reduces the total system maintenance costs.
    • Flexible design of the ducting system.
  • Cover large area with different ducting configuration.
  • VRV AHU can provide ESP up to 500Pa*
(Standard Model)
  • Total solution concept
    • Integrating an AHU into the total building climate system enables both design and installation procedures to be based on a single common technology. This simplifies project follow-up, installation, commissioning and maintenance since only one party is involved.
    • VRV AHU system can be coupled and mixed with other type indoor unit to work together concurrently.
      (Connection ratio 50% – 110%)

For ESP more than 500Pa, please contact Daikin’s Sales Office
