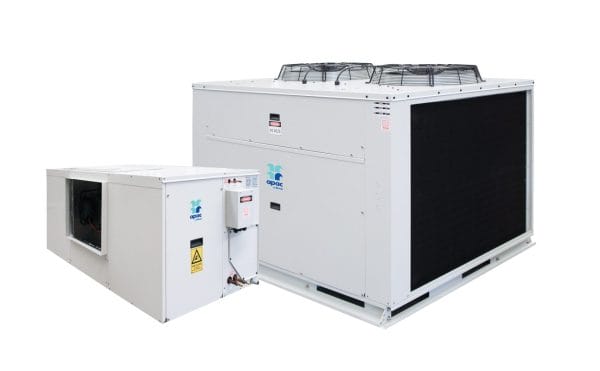

Apac S015ILR / S015OVR 15.54 kW Split Ducted Unit (Low Profile)

Apac S015ILR / S015OVR 15.54 kW Split Ducted Unit (Low Profile)

SKU: S015ILR / S015OVR

Apac S015ILR / S015OVR 15.54 kW Split Ducted Unit (Low Profile)
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant
Indoor: S015ILR | Outdoor: S015OVR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle)
 Indoor Unit S015ILR
Outdoor Unit S015OVR
Rated Cooling
 Total Capacity (kW)3 15.54
Sensible3 12.13
EER (kW/ikW)3 3.7
Rated Heating1
 Total Capacity (kW) 14.7
COP 3.87
MEPS Certified Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type Hybrid Axial
Speed Control Pressure Transducer
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 5.3
No of Circuits 1
Indoor Fan
 Type EC Centrifugal Blower
Speed Control Variable Speed
Qty 1
Airflow Indoor (L/s)
 Nominal 835
Maximum 1044
Minimum 626
Available External
Static Pressure		 Pa +200 Pa
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4 Outdoor/Indoor/
Total		 7.5/ 2.8/ 11.3
Full Load Amps5 Outdoor/Indoor/
Total		 12/4.4/16.4
Outdoor Dimensions (mm)
 Height 1162
Width 730
Length 1550
Indoor Dimensions (mm)
 Height 444
Width 1225
Length 655
Indoor and Outdoor Pipe Connection Diameter
 Liquid mm (inch) 9.5 (3/8″) x 1
Gas mm (inch) 19.1 (3/4″) x 1
Nominal Weight 2. Outdoor kg 214
Nominal Weight 2. Indoor kg 70
Rated Sound Power
db(A)
61.7

1. For reverse cycle model only

2. For base model only. Factory options will vary

3. Performance excludes ikW of evaporator fan motor

4. R.L.A – Run Load Amps are based on current drawn at nominal conditions

5. F.L.A – Full Load Amps are based on the overload settings [max current] of all compressor and fan motor(s)

Features

  • Low profile space saving design suitable for in-ceiling installation
  • EC direct drive centrifugal blower (12-23kW)
  • EC plug fans 024-045 with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified

Factory options customised to order Outdoor

  • Compressor soft starter
  • Copper/copper coil(s)
  • Capacity modulation control
  • High static pressure outdoor fans
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • High Level Interface (HLI) Modbus connectivity
  • Cable markers

Indoor

  • Double layered insulation to indoor section
  • Copper/copper coil(s)
  • Indoor coil(s) with anti-corrosion post-treatment

Factory options engineered to order Outdoor

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial
    Indoor
  •  Stainless steel external fixings
  • Coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  •  R22/R407C application

Apac S015ILR / S015OVR 15.54 kW Split Ducted Unit (Low Profile) – Brochure

Description

15.54 kW Cooling
14.70 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
