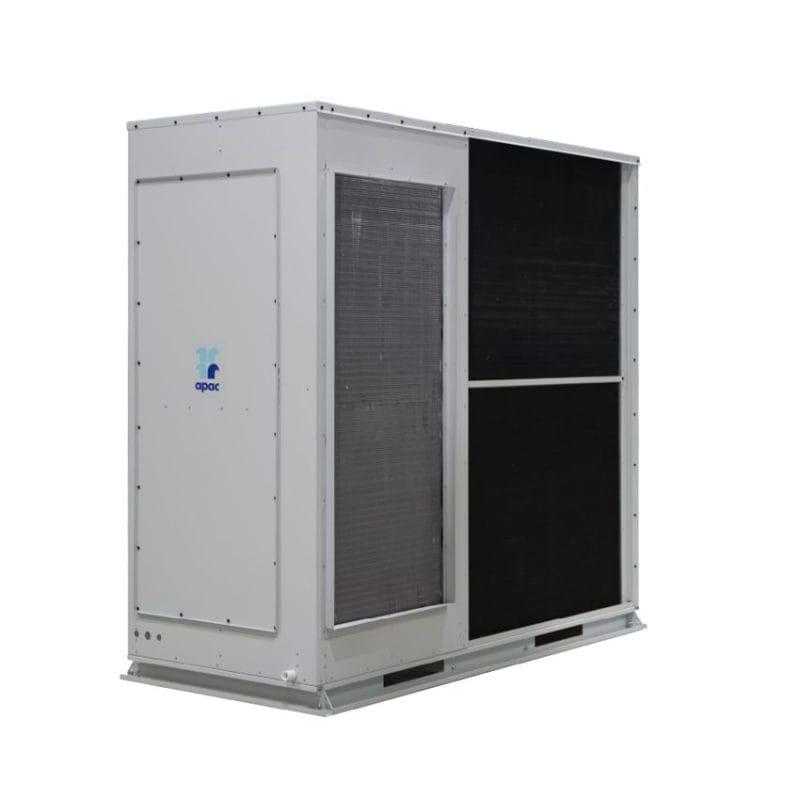

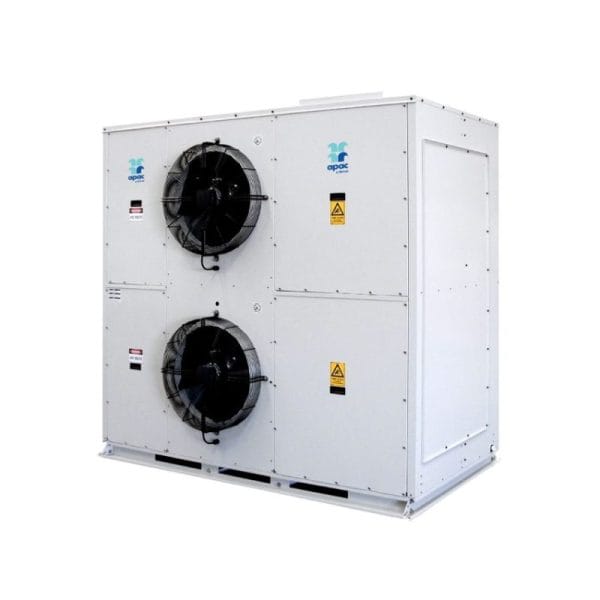

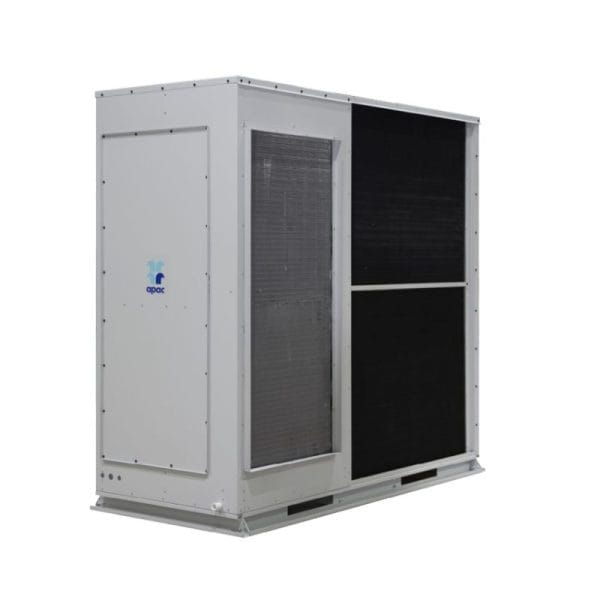

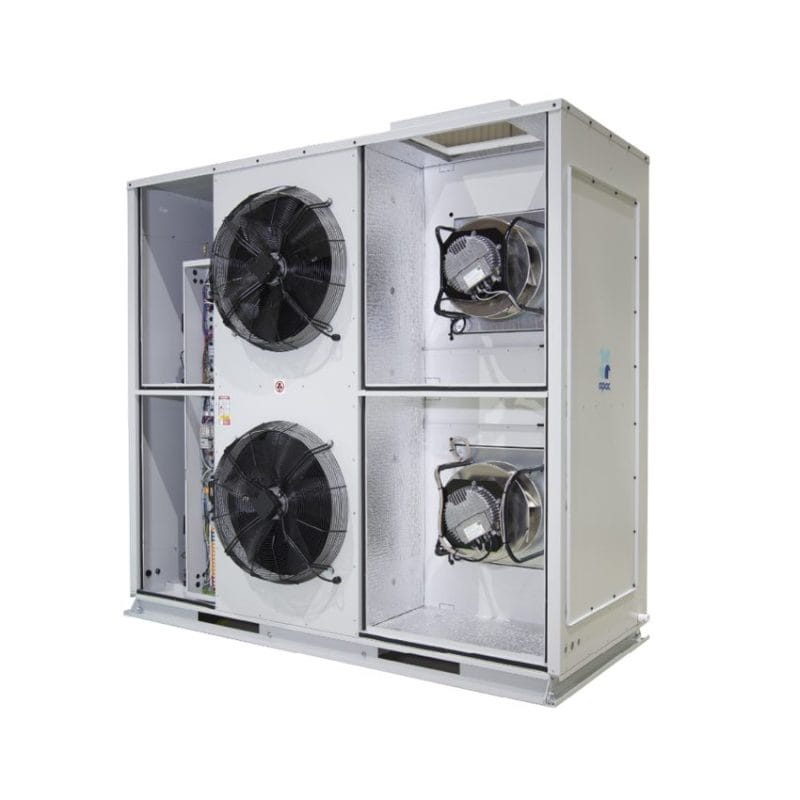

Apac P035AVR 34.13 kW Signature Vertical Package Unit
34.13 kW Cooling | 27.06 kW Heating
Apac P035AVR 34.13 kW Signature Vertical Package Unit
- High static capability up to 500pa
- Quieter operation with 12db(A) sound reduction
- Condenser coil anti-corrosion protection | MEPS Compliant
5 Years Manufacturer’s Warranty
| Model Number (Reverse Cycle) | Vertical Packaged | P035AVR |
|
Rated Cooling
|
Total Capacity (kW)3 | 34.13 |
| Sensible3 | 27.06 | |
| EER (kW/ikW)3 | 3.44 | |
|
Rated Heating1
|
Total Capacity (kW) | 34.25 |
| COP | 3.85 | |
| MEPS Certified | Yes | |
|
Operating Range
|
Maximum °C | +50 |
| Minimum °C | -10 | |
| Capacity Steps | % | 0/50/100 |
|
Compressor
|
Type | Scroll |
| Starter | D.O.L (Optional Soft Starter) | |
| Qty | 2 | |
|
Outdoor Fan
|
Type | Hybrid Axial |
| Speed Control | Pressure Transducer | |
| Qty | 2 | |
|
Refrigerant System
|
Type | R410A |
| Charge Per Circuit kg | 5.70 | |
| No of Circuits | 2 | |
|
Indoor Fan
|
Type | EC Plug |
| Speed Control | Potentiometer | |
| Qty | 1 | |
|
Airflow Indoor (L/s)
|
Nominal | 1750 |
| Maximum | 2188 | |
| Minimum | 1313 | |
| Available External Static Pressure | Pa | High Static Capability (See Performance Curves) |
| IP Rating | IP44 | |
| Power Supply | (Volt/Phase/Hz) | 400-415V / 3Ph + N / 50Hz |
| Rated Load Amps4 | Total | 19.80 |
| Full Load Amps5 | Total | 31.40 |
|
Dimensions (mm)
|
Height | 2140 |
| Width | 2250 | |
| Length | 950 | |
| Nominal Weight2. | kg | 590 |
| Rated Sound Power | db(A) | 66.5 |
Features
- Scroll type compressors
- EC plug indoor fans with high static capability up to 500pa
- Hybrid axial fan
- TXV refrigerant control
- Condenser coil anti-corrosion protection
- 25mm PE closed cell insulation
- Phase fail protection relay
- MEPS certified
Factory options customised to order
- Compressor soft starter
- High static pressure outdoor fans
- Double layered insulation to indoor section
- Capacity modulation control
- Outdoor coil(s) with anti-corrosion post-treatment
- Indoor coil(s) with anti-corrosion post-treatment
- Outdoor coil guards, powder coated
- Discharge & suction isolation valves
- Liquid line isolation valves across filter drier
- High Level Interface (HLI) Modbus connectivity
- APAC Supply & Return connections
- Cable markers
- Fire relay
Factory options engineered to order
- 316 stainless steel cabinet, unpainted
- 304 stainless steel cabinet, powder coated
- Stainless steel external fixings
- Outdoor coil(s) copper / copper
- Indoor coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- Ductable air off in lieu of standard axial
