SKU: P029AHR

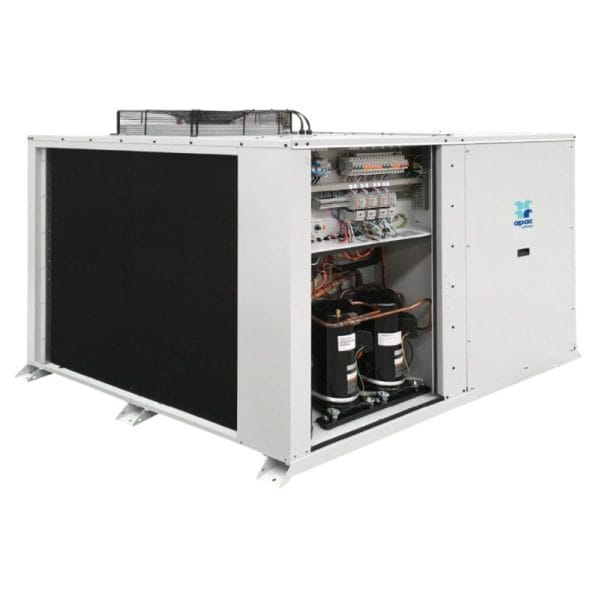

Apac P029AHR 31.00 kW Signature Compact Rooftop Package Unit
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant | System: P029AHR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle) Packaged Unit P029AHR
Rated Cooling
 Total Capacity (kW)3 31
Sensible3 24.76
EER (kW/ikW)3 3.41
Rated Heating1
 Total Capacity (kW) 30.1
COP 3.88
MEPS Certified Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/50/100
Compressor
 Type Tandem Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type EC Axial
Speed Control Pressure Transducer
Qty 1
Refrigerant System
 Type R410A
Charge Per Circuit kg 6.75
No of Circuits 1
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 1613
Maximum 2016
Minimum 1210
Available External
Static Pressure		 Pa High Static Capability (See Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4. Total 15.3
Full Load Amps5. Total 26.7
Total
Dimensions (mm)
 Height
Width 1550
Length 1850
Nominal Weight2. Total kg 465
Rated Sound Power db(A)

Features

  • Tandem scoll compressors for high system efficiency at full & part load
  • 35% smaller footprint than equivalent RTU
  • 25% less gas charge than equivalent RTU
  • 42% less components than equivalent RTU
  • EC plug fans with high static capability up to 500pa
  • EC hybrid axial fan
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified

Factory options customised to order

  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  •  APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  •  Integrated filter frame 50mm
  •  Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial

Apac P029AHR 31.00 kW Signature Compact Rooftop Package Unit – Brochure

Description

31.00 kW Cooling
30.10 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
