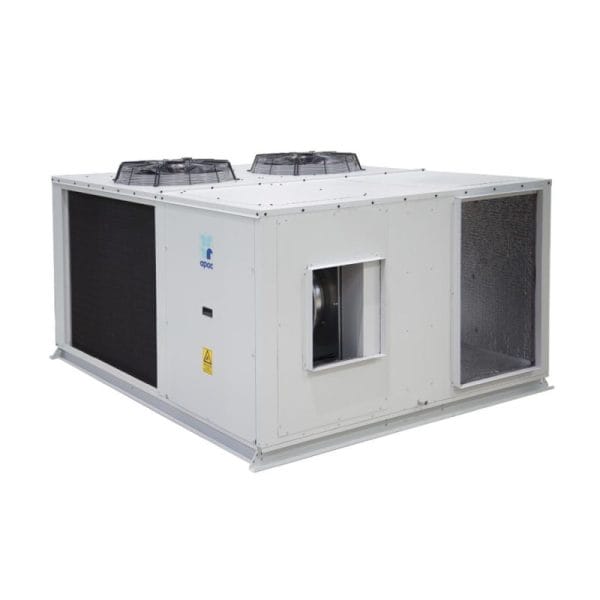

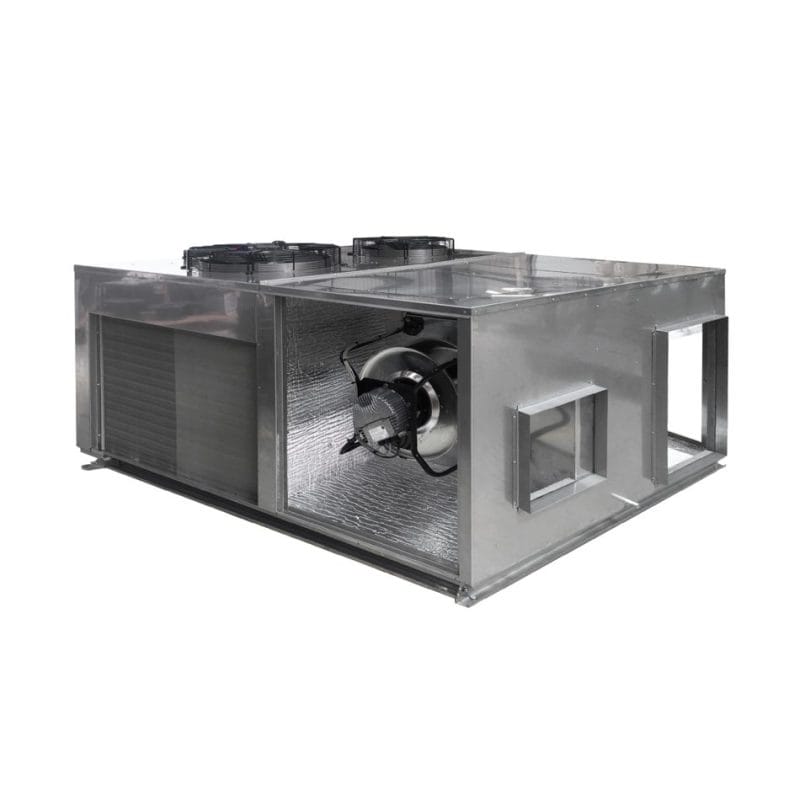

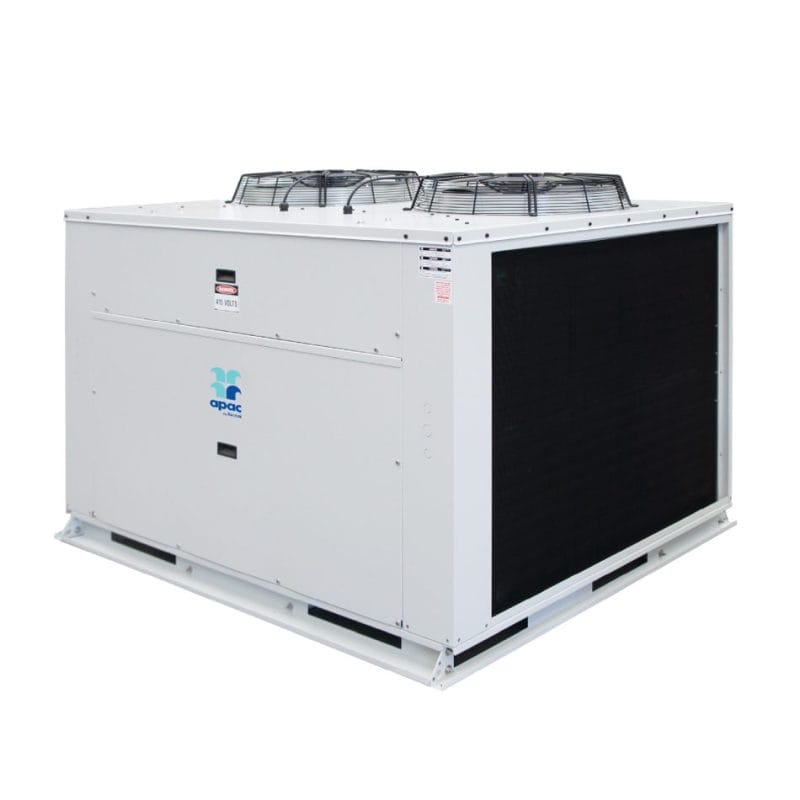

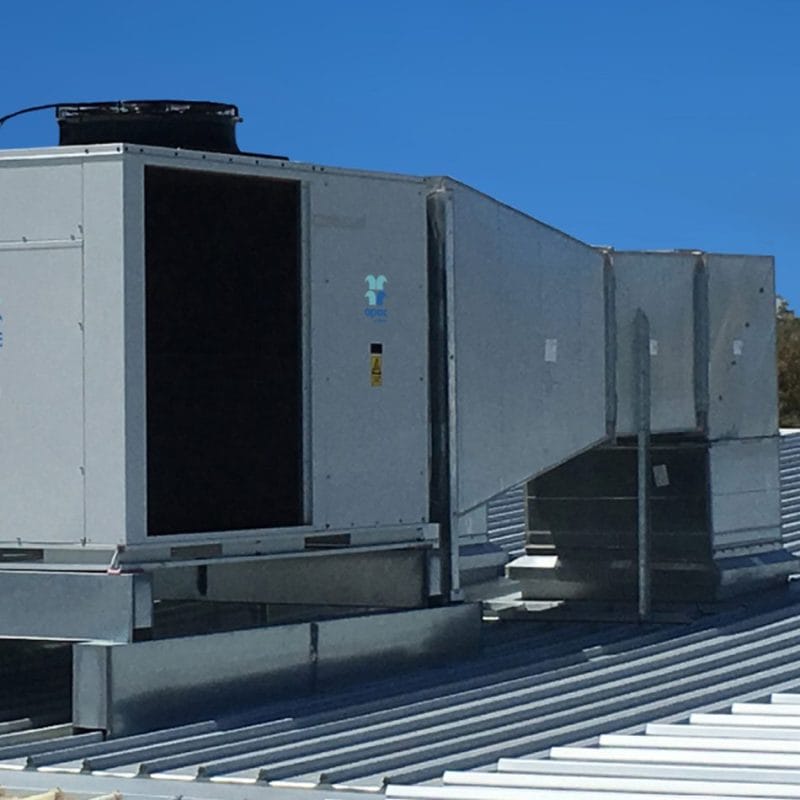

Apac P012AHR 12.57 kW Signature Rooftop Package Unit

SKU: P012AHR

Apac P012AHR 12.57 kW Signature Rooftop Package Unit
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant | System: P012AHR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle) Packaged Unit P012AHR
Rated Cooling
 Total Capacity (kW)3 12.57
Sensible 3 9.7
EER (kW/ikW)3 3.59
Rated Heating1
 Total Capacity (kW) 11.9
COP 3.66
MEPS
Certified		 MEPS Certified/ BCA Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type Hybrid Axial
Speed Control Variable Speed
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 3.95
No of Circuits 1
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 625
Maximum 781
Minimum 469
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load
Amps4		 Total 6.8
Full Load
Amps5		 Total 12.3
Dimensions (mm)
 Height 1162
Width 1550
Length 1700
Nominal
Weight2.		 kg 350
Rated Sound Power db(A) 61.7



Features

  • Scroll type compressors
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant

    Factory options customised to order
  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  • APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  • Integrated filter frame 50mm
  • Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axia

Apac P012AHR Signature Rooftop Package – Brochure

Description

12.57 kW Cooling
11.90 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
