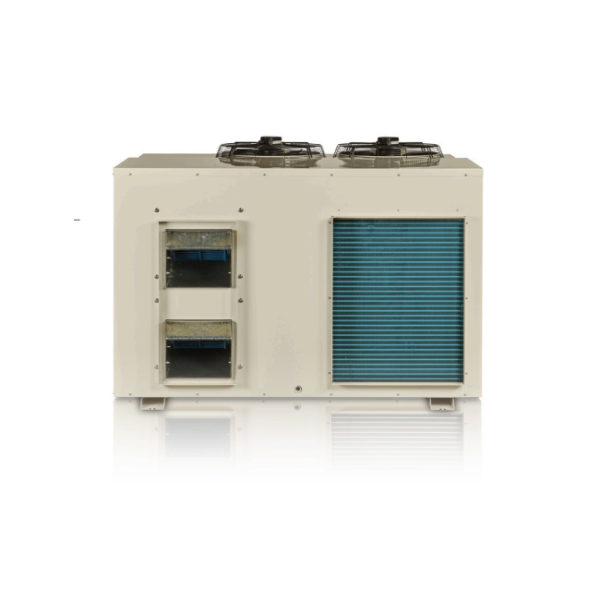

ActronAir PCG290U 28.30kW Fixed Speed Commercial Packaged Unit 3 Phase
Vertical Discharge | Blue fin epoxy coated indoor + outdoor coil protection | R410A refrigerant | Two-speed outdoor condenser fans minimise outdoor noise
Options come in; left/right, under/over, side-by-side, or vertical configurations.
| PCG290U | ||||
|
1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling | 29.5 | ||
| Heating | 27.4 | |||
|
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling | 28.3 | ||
| Heating | 28.6 | |||
|
Input Power (kW) (AS/NZS3823.1.2)
|
Cooling | 8.45 | ||
| Heating | 7.97 | |||
|
2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2) |
Cooling | 3.35 | ||
| Heating | 3.59 | |||
| Power Supply (V / Ph / Hz) | 400 / 3Ph + N / 50Hz | |||
| Rated Load Amps (AS/NZS3823.1.2) | 24.5 | |||
| Full Load Amps (AS/NZS3823.1.2) | 30.9 | |||
| 4 Circuit Breaker Amps | 32 | |||
| IP Rating | IP44 | |||
|
Compressor
|
Type / No. per Unit | Compliant Scroll / 1 | ||
| Starting Method | D.O.L | |||
| No. Refrigeration Circuits/No. Capacity Stages (Capacity range) | 1 / 1 (100% capacity) | |||
| Refrigerant | R410A | |||
|
Fans (Type x Number per unit)
|
Outdoor | Axial / 6 Pole External Rotor / Direct Drive x 2 | ||
| Indoor | Twin Deck Centrifugal / ECM Direct Drive x 1 | |||
|
Airflow Range Indoor (l/s)
|
Maximum | 1650 | ||
| Nominal | 1500 | |||
| Minimum | 1275 | |||
|
External Static Pressure (Pa) at:
|
Maximum Airflow | 266 | ||
| Nominal Airflow | 285 | |||
|
Unit Dimensions (mm)
|
Depth | 1590 | ||
| Height | 1330 | |||
| Width | 1875 | |||
| 5 Nominal Weight (kgs) | 450 | |||
|
6 Sound Pressure Level (dBA)
7 Sound Power Level (dBA) |
Outdoor (low/high fan) |
56.9 / 60.9 | ||
| Outdoor (low/high fan) |
73.9 / 77.9 | |||
| MEPS Compliant | Yes | |||
Our Commercial Ducted air conditioning system is the perfect solution for retail and light commercial installations. That could be anything from doctor’s surgeries to restaurants to classrooms to offices. Offering robust performance, energy efficiency, installation flexibility and the levels of service ActronAir is renowned for, the Commercial Ducted range provides an overall value package that can’t be beaten in the marketplace. The trusted commercial solution engineered to exceed Australian Standards.
Guaranteed to perform up to 50°C | Flexibility for installation and commissioning | Above and beyond Australian Standards
Vertical Discharge | Blue fin epoxy coated indoor | outdoor coil protection | R410A refrigerant | Two-speed outdoor condenser fans
minimise outdoor noise | Options come in; left/right, under/over | side-by-side, or vertical configurations | Compliant Scroll
28.30 kW Cooling
28.60 kW Heating
