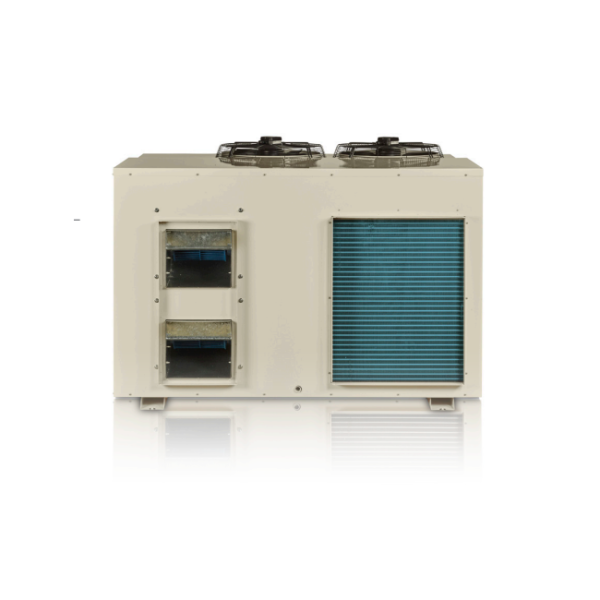

ActronAir PCA330U 34.66kW Fixed Speed Commercial Packaged Unit 3 Phase
ActronAir PCA330U 34.66kW Fixed Speed Commercial Packaged Unit 3 Phase
Vertical Discharge » Blue fin epoxy coated indoor + outdoor coil protection » R410A refrigerant
» Two-speed outdoor condenser fans minimise outdoor noise » Options come in; left/right, under/over, side-by-side, or vertical configurations.
| Three Phase | ||
| PCA330U | ||
| 1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2) | Cooling | 34.66 |
| Heating | 32.73 | |
| Nett (Rated) Capacity (kW) (AS/NZS3823.1.2) | Cooling | 33.00 |
| Heating | 34.50 | |
| Input Power (kW) (AS/NZS3823.1.2) | Cooling | 10.48 |
| Heating | 10.30 | |
| 2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2) |
Cooling | 3.15 |
| Heating | 3.35 | |
| Power Supply (V / Ph / Hz) | 400 – 415V / 3Ph + N / 50Hz | |
| Rated Load Amps (AS/NZS3823.1.2) | 23.3 | |
| Full Load Amps (AS/NZS3823.1.2) | 29.7 | |
| 4 Circuit Breaker Amps | 32.0 | |
| IP Rating | IP44 | |
| Compressor | Type / No. per Unit | Compliant Scroll / 1 |
| Starting Method | D.O.L. | |
| No. Refrigeration Circuits/No. Capacity Stages (Capacity range) | 1 / 1 (100% capacity) | |
| Refrigerant | R410A | |
|
Fans (Type x Number per unit) |
Outdoor | Axial / 6 Pole External Rotor / Direct Drive x 2 |
|
Indoor |
Twin Deck Centrifugal / 4 Pole / Direct Drive x 1 |
|
|
Airflow Range Indoor (l/s) |
Maximum | 1892 |
| Nominal | 1720 | |
| Minimum | 1462 | |
| External Static Pressure (Pa) at: | Maximum Airflow | 132 |
| Nominal Airflow | 205 | |
|
Unit Dimensions (mm) |
Depth | 1590 |
| Height | 1330 | |
| Width | 1875 | |
| 5 Nominal Weight (kgs) | 470 | |
|
6 Sound Pressure Level (dBA) 7 Sound Power Level (dBA) |
Outdoor
(low/high fan) |
58.8 / 62.8 |
| Outdoor
(low/high fan) |
75.8 / 79.8 | |
| MEPS Compliant | Yes | |
To view the Brochure
Click here
Description
34.66 kW Cooling
32.73 kW Heating
