ActronAir CRS13AS / EVA13AS-V 13.02kW Aires Vertical Indoor Split Ducted Air Conditioner System | 1 Phase

SKU: CRS13AS / EVA13AS-V

ActronAir CRS13AS / EVA13AS-V 13.02kW Aires Vertical Indoor Split Ducted Air Conditioner System | 1 Phase
Includes Vertical Indoor EVA13AS-V – Includes 8 Zone Integrated & 20m CAT5E Cable – Yellow  | Outdoor CRS13AS
Optional Controllers: NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)

Optional Zone Barrels:

Optional Insulated Copper Pair Coil

5 Years Manufacturer’s Warranty




> > > >
Model
Number
Weight (kg) Height
Clearance
EVA13AS-V 44 DUCT WORK

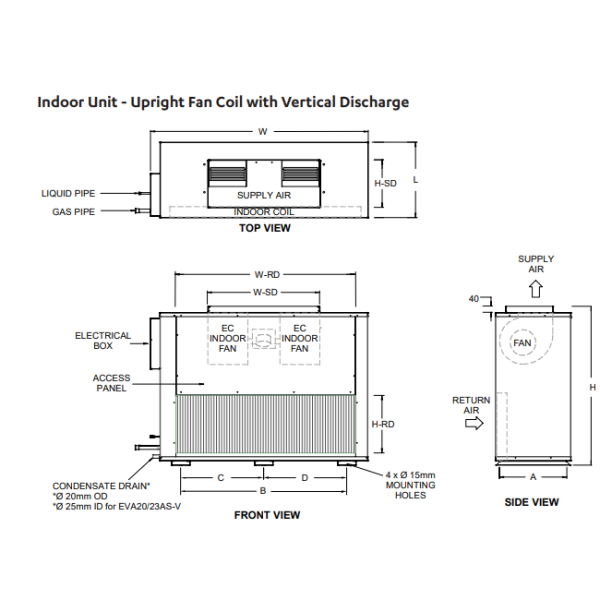

Unit Model Number
Overall Nominal Dimension (OA) Mounting Distance Base Foot
(Centre to Centre)
Supply Duct Return Duct
Gas Pipe
(Swaged)
Liquid Pipe (Swaged)
H W L A B C D H-SD x W-SD H-RD x W-RD
EVA13AS-V 875 1075 405 350 790 300 x 715 365 x 895 Ø 19.05mm (3/4″) Ø 9.52mm (3/8″)

Better together with Unity IQ.

AIRES seamlessly integrates with our locally designed and manufactured control systems, featuring advanced Unity IQ control logic.
This harmonious combination ensures that every component within the system operates in perfect synergy, delivering the precise comfort you desire.

Australian Made Comfort Experience the peace of mind that comes with Australian-made controls and a thoughtfully designed indoor unit, complete with zoning designed for how Australians truly live.

Quiet Operation Comfort comes not only in how you feel but also in what you hear, or with the AIRES, what you don’t hear. Using the latest technologies such as variable speed DC Inverters, modulating DC outdoor fans, and smooth operating EC indoor fans, the AIRES has been designed with your noise comfort in mind.

R32 Refrigerant ActronAir is environmentally aware and considers the potential impact and costeffectiveness of the refrigerants it uses. That’s why AIRES utilises R32, with a substantially lower Global Warming Potential than some alternative refrigerants, while enjoying the benefits of optimised energy efficiency.

Enhanced Performance – With its DC inverter technology, which allows its compressor to modulate, the AIRES system is able to deliver smooth capacity transitions to meet your heating and cooling demands.

Energy Efficient – Maintain comfort without breaking the bank. Using inverter technology, the AIRES system will automatically adjust its capacity to provide only the conditioning that is required, thereby reducing your running costs.

Compact Space Saving Outdoor Unit  – The AIRES outdoor unit features a sleek and compact design that provides you with the flexibility to install it in a range of locations. Save valuable space while enjoying powerful cooling and heating.

ActronAir CRS13AS / EVA13AS-V 13.02kW Aires Vertical Indoor Split Ducted Air Conditioner System | 1 Phase – Brochure

Description

13.02 kW Cooling
15.00 kW Heating

Vertical Indoor | Quiet Mode
