ActronAir CRE-140CS / URC-140CS 14.0kW Cascade Series 2 Gen C Inverter Cassette Split System Air Conditioner
13.95 kW Cooling | 14.50 kW Heating
ActronAir CRE-140CS / URC-140CS 14.0kW Cascade Series 2 Gen C Inverter Cassette Split System Air Conditioner

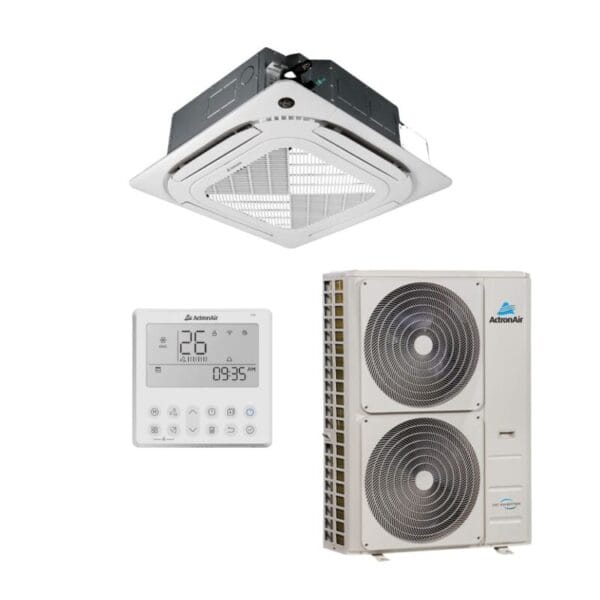

Includes Indoor CRE-140CS – Outdoor URC-140CS | Includes Wired Controller
Includes C4-P3 4-way Panel | Built In Drain Pump Fitted as Standard
5 Years Manufacturer’s Warranty
| OUTDOOR MODEL | URC-140CS | |
| INDOOR MODEL | CRE-140CS | |
| Nett (Rated) Capacity (kW) (AS/NZS3823.1.1) | Cooling (min – max) | 13.95 (3.60 – 16.00) |
| Heating (min – max) | 14.50 (2.75 – 17.30) | |
| Input Power (kW) (AS/NZS3823.1.1) | Cooling Rated | 4.08 |
| Heating Rated | 4.41 | |
| 1 EER Rated (AS/NZS3823.1.1) 2 COP Rated (AS/NZS3823.1.1) |
Cooling | 3.37 |
| Heating | 3.47 | |
| Star Rating (AS/NZS3823.1.1) | Cooling | 4 STAR |
| Seasonal Performance Factor Residential | TCSPF (Hot / Mixed / Cold) | 5.94 / 5.36 / 5.66 |
| HSPF (Hot / Mixed / Cold) | 4.95 / 4.26 / 3.77 | |
| Power Supply – (V / Ph / Hz) | Outdoor | 220 – 240 V / 1PH+N / 50Hz |
| Rated Load Amps (AS/NZS3823.1.1) | Cooling | 18.0 |
| Heating | 16.7 | |
| Full Load Amps (AS/NZS3823.1.1) | 31.0 | |
| Circuit Breaker Amps | 32.0 | |
| 3 Suggested Minimum Mains Cable Size | 6.0mm2 | |
| 3 Suggested Minimum Indoor to Outdoor Power Cable Size & Type | 1.0mm2 2 Core + Earth |
|
| IP Rating | Outdoor | IPX4 |
| Indoor | IPX0 | |
| Compressor Type | Inverter Twin-Rotary | |
| Refrigerant | R-32 | |
| Airflow Range Indoor (l/s) | High | 505 |
| Medium | 459 | |
| Low | 350 | |
| Outdoor Dimensions (mm) | Depth | 415 |
| Height | 1333 | |
| Width | 952 | |
| Indoor Dimensions (mm) | Depth | 830 |
| Height | 287 | |
| Width | 830 | |
| Indoor Panel Dimensions (mm) | Depth | 950 |
| Height | 55 | |
| Width | 950 | |
| 4 Nominal Weight (kgs) | Outdoor | 95.1 |
| Indoor | 35.3 | |
| Indoor Sound Pressure Level (dBA) (Low / Med / High) | 54 / 49 / 46 | |
| 5 Outdoor Sound Pressure Level (dBA) 1m | 59.9 | |
| 6 Outdoor Sound Power Level (dBA) | 71 | |
| Outdoor Operating Range (°C) | Cooling | 0°C to 50°C |
| Heating | -20°C to 24°C | |
| MEPS Compliant | Yes |
| Wired Controller | WC-02 | |||
| Remote Controller – Optional | RC-03 | |||
| Easy Connect Wi-Fi App | Optional | |||
| Follow Me Function | Yes | |||
| Sleep | Yes | |||
| Turbo | Yes | |||
| Self Clean Operation | Yes | |||
| Auto Defrost Function | Yes | |||
| Timer On/Off | Yes | |||
| 7-Day Scheduler / Weekly timer | Yes | |||
| Dehumidification | Yes | |||
| Drain Pump | Yes | |||
| Hanging Brackets | Yes | |||
| Elevating Grill – Up to 4m | No | |||
| 360° Airflow | Yes | |||
| Independent Louvre Control | Yes | |||
| Supply Duct Outlet | Optional | |||
| Outside Air Intake | Optional | |||
| Hydrophilic Aluminium Coil Protection | Indoor | Yes | ||
| Outdoor | Yes | |||
| Louvre Memory | Yes | |||
| Demand Response | Ready | |||
| Indoor Fan Speed | 5-Speed | |||
| Outdoor Fan Speed | 5-Speed | |||
| Auto Restart Function | Yes | |||
| Fault Alarm Output Port | Yes | |||
| Remote On/Off | Yes | |||
| Field Piping and Connections | ||||
| Refrigerant | Factory Charge – (g) | 3600 | ||
| Pre-Charge Length – (m) | 5 | |||
| Additional Refrigerant Charge – (g/m) | 24 | |||
| Minimum Field Pipe Length – (m) | 3 | |||
| Maximum Field Pipe Length – (m) | 75 | |||
| Maximum Vertical Height Differential (m) included in max length | 30 | |||
| Field Pipe Size | Liquid Pipe – mm (inch) | 9.52 (3/8) | ||
| Gas Pipe – mm (inch) | 15.9 (5/8) | |||
| Outdoor Unit | Liquid Pipe – mm (inch) | 9.52 (3/8) | ||
| Gas Pipe – mm (inch) | 15.9 (5/8) | |||
| Indoor Unit | Liquid Pipe – mm (inch) | 9.52 (3/8) | ||
| Gas Pipe – mm (inch) | 15.9 (5/8) | |||
| Wiring Method | Hardwire to Outdoor | |||
| Interconnect Cables | 2 Core + Earth | |||
A perfect fit for suspended or ‘floating’ ceilings, the ceiling-mounted Cascade cassette system covers a wide range of applications, such as residential, retail and commercial spaces.
The Cascade has many state-of-the-art features, including 360° airflow, which delivers air from not only all four sides but from all four corners as well. It’s also stylishly attractive, with a discrete design that complements any surroundings.
Here for the long haul
ActronAir now uses gold fin epoxy coated protection on both indoor and outdoor coils as standard. This is to further reduce corrosion from the harsh Australian conditions, as well as assisting the defrosting process, thus improving heating efficiency.
Stylish, space-saving convenience
Aesthetically pleasing and unobtrusive, Cascade sits well out of the way, providing maximum comfort without attracting attention.
Comfort from every angle
For complete coverage, Cascade delivers 360º airflow from not only its four sides but also from its four corners.
Customised air control
Independent vane control gives you the flexibility to set different angles in each direction allowing you to customise airflow depending on where you need it most.
More cooling in extreme heat
With a market-leading operating range of up to 50°C, Cascade is guaranteed to keep working in hotter temperatures. Not only that, Cascade is also able to maintain far better capacity in extreme heat than comparable systems, which provides you with more cooling comfort right when you need it most.
Twin system for double the comfort
The Cascade cassette system has an additional feature, ideal for especially long rooms, or two adjacent areas of the same size. Intelligent engineering allows you to connect two smaller indoor units to the one outdoor unit. In a format that is essentially a ‘master and slave’ connection between the two indoor heads, it means the single Cascade system is able to condition more than the single space.
Description
14.50 kW Heating
Gold Fin Protection | Built In Drain Pump
