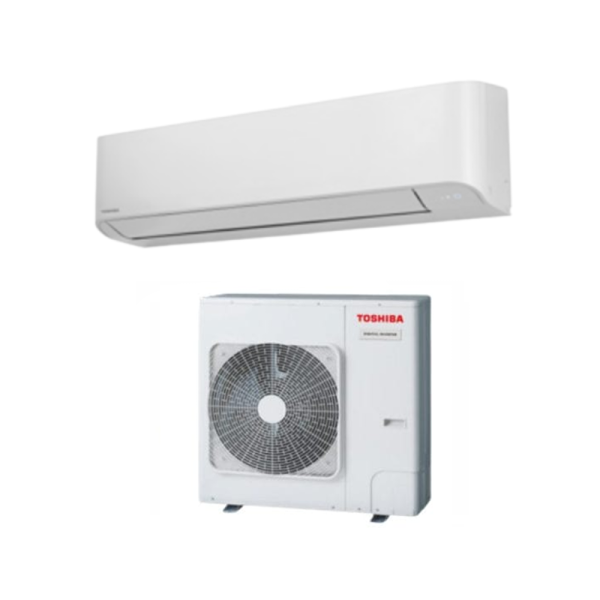

INDOOR UNIT | RAV-GM801KRTP-A | |
OUTDOOR UNIT | RAV-GP801ATP-A | |
Cooling Capacity Range | kW | 7.1 [1.9 – 8.0] |
Heating Capacity Range | kW | 8.0 [1 .5 – 10.6] |
EER | 3.9 | |
COP | 3.6 | |
Maximum Operating Current | A | 15.8 |
Dimensions – Indoor [H x W x D] | mm | 320 x 1050 x 250 |
Dimensions – Outdoor [H x W x D] | 890 x 900 x 320 | |
Weight – Indoor / Outdoor | kg | 14 / 67 |
Airflow [H / M / L] | l/s | 288 / 252 / 188 |
Sound Pressure Level Indoor / Outdoor | dB(A) | 45 / 52 |
Operating Range Cooling | °C db | -15 to 52 |
Operating Range Heating | -20 to 24 | |
Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
Maximum Pipe Length / Lift | m | 50 / 30 |
Maximum Pre-charged Length | 30 | |
Power Supply | Ph/V/Hz | 1ph / 220-240V / 50Hz |
