5.0 kW Cooling | 5.6 kW Heating

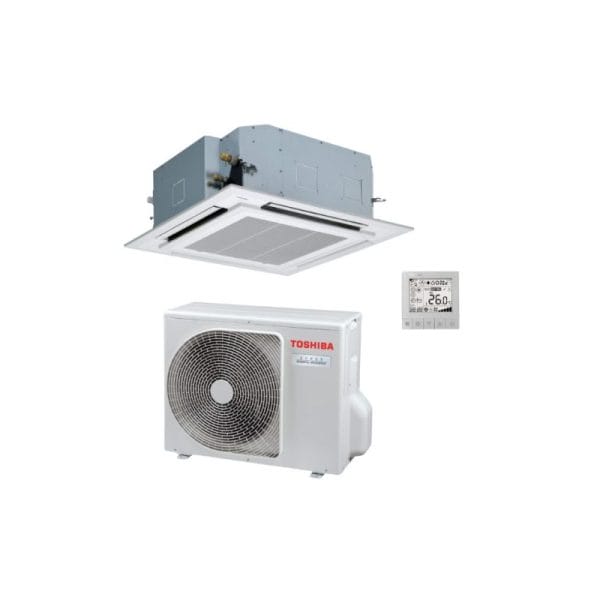

Toshiba GP561U 5.0kW Super Digital Inverter 4 Way Cassette Air Conditioner
Indoor RAV-GM561UTP-A | Outdoor RAV-GP561ATP-A | Integrated drain pump | Energy Efficient | 1 Phase
Wired controller RBC-ASCU11-E | Fascia RBC-U32PGP-E
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM561UTP-A | |
| OUTDOOR UNIT | RAV-GP561ATP-A | |
| Cooling Capacity Range | kW | 5.0 [1 .2 – 6.0] |
| Heating Capacity Range | kW | 5.6 [0.9 – 8.1] |
| EER | 4.1 | |
| COP | 4.63 | |
| Maximum Operating Current | A | 13.1 |
| Dimensions – Indoor [H x W x D] | mm | 256 x 840 x 840 |
| Dimensions – Outdoor [H x W x D] | 630 x 800 x 300 | |
| Dimensions – Panel [H x W x D] | 30 x 950 x 950 | |
| Weight – Indoor / Outdoor / Panel | kg | 20 / 43 / 4.2 |
| Airflow [H / M / L] | l/s | 291 / 240 / 216 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 32 / 48 |
| Operating Range Cooling | oC db | -15 to 52 |
| Operating Range Heating | -20 to 24 | |
| Pipe Sizes (Liquid / Gas) | mm | 6.35 / 12.70 |
| Maximum Pipe Length / Lift | m | 50 / 30 |
| Maximum Pre-charged Length | 20 | |
| Power Supply | Ph / v / Hz | 1ph / 220-240V / 50Hz |
5.0 kW Cooling
5.6 kW Heating
Integrated drain pump | Energy Efficient | 1 Phase
