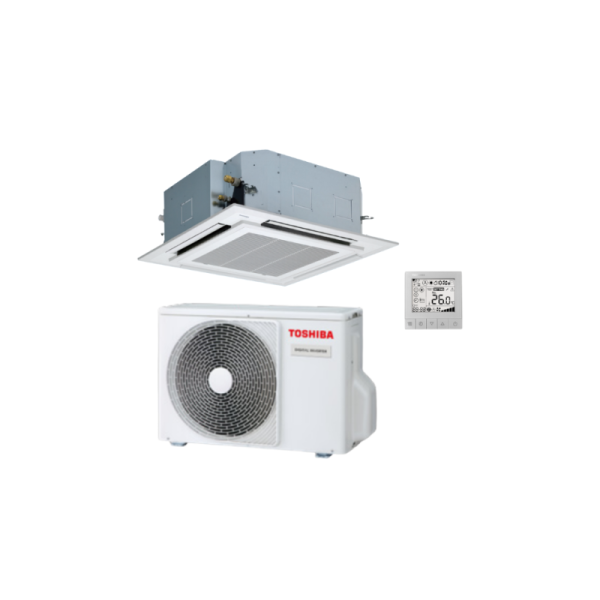

Toshiba GM561U 5.0kW Digital Inverter 4 Way Cassette Air Conditioner
5.0 kW Cooling | 5.3 kW Heating
Toshiba GM561U 5.0kW Digital Inverter 4 Way Cassette Air Conditioner
Indoor RAV-GM561UTP-A | Outdoor RAV-GM561ATP-A | Integrated drain pump | 1 Phase
Wired controller RBC-ASCU11-E | Fascia RBC-U32PGP-E
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM561UTP-A | |
| OUTDOOR UNIT | RAV-GM561ATP-A | |
| Cooling Capacity Range | kW | 5.0 [1.5 – 5.6] |
| Heating Capacity Range | kW | 5.3 [1.5 – 6.3] |
| EER | 3.5 | |
| COP | 4.31 | |
| Maximum Operating Current | A | 15.5 |
| Dimensions – Indoor [H x W x D] | mm | 256 x 840 x 840 |
| Dimensions – Outdoor [H x W x D] | 550 x 780 x 290 | |
| Dimensions – Panel [H x W x D] | 30 x 950 x 950 | |
| Weight – Indoor / Outdoor / Panel | kg | 20 / 40 / 4.2 |
| Airflow [H / M / L] | l/s | 291 / 240 / 216 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 32 / 48 |
| Operating Range Cooling | oC db | -15 to 46 |
| Operating Range Heating | -15 to 15 | |
| Pipe Sizes (Liquid / Gas) | mm | 6.35 / 12.70 |
| Maximum Pipe Length / Lift | m | 30 / 30 |
| Maximum Pre-charged Length | 20 | |
| Power Supply | Ph / v / Hz | 1ph / 220-240V / 50Hz |
- Optimal air distribution
- Optional external fresh air supply
- Corner pockets for easy access
- Self-clean operation
- Suitable for high ceiling installations
- Integrated drain pump
- Innovative air flow control panel design
$3,700.00 Bundle Price for Selected items
Description
5.0 kW Cooling
5.3 kW Heating
Integrated drain pump | 1 Phase
