INDOOR UNIT | RAV-GM561KRTP-A | |
OUTDOOR UNIT | RAV-GM561ATP-A | |
Cooling Capacity Range | kW | 5.0 [1 .5 – 5.6] |
Heating Capacity Range | kW | 5.3 [1 .5 – 6.3] |
EER | 3.31 | |
COP | 3.9 | |
Maximum Operating Current | A | 15.5 |
Dimensions – Indoor [H x W x D] | mm | 320 x 1050 x 250 |
Dimensions – Outdoor [H x W x D] | mm | 550 x 780 x 290 |
Weight – Indoor / Outdoor | kg | 14 / 40 |
Airflow [H / M / L] | l/s | 266 / 230 / 188 |
Sound Pressure Level Indoor / Outdoor | dB(A) | 42 / 48 |
Operating Range Cooling | °C db | -15 to 46 |
Operating Range Heating | °C db | -15 to 15 |
Pipe Sizes (Liquid / Gas) | mm | 6.35 / 12.70 |
Maximum Pipe Length / Lift | m | 30 / 30 |
Maximum Pre-charged Length | 20 | |
Power Supply | Ph/V/Hz | 1ph / 220-240V / 50Hz |

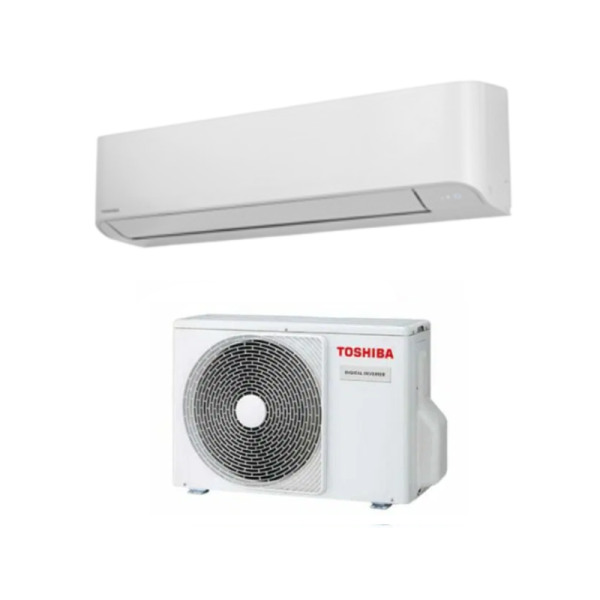

Toshiba GM561K 5.0kW Digital Inverter High Wall Air Conditioner
5.0 kW Cooling | 5.3 kW Heating
Toshiba GM561K 5.0kW Digital Inverter High Wall Air Conditioner
Indoor RAV-GM561KRTP-A | Outdoor RAV-GM561ATP-A | Wireless Controller
System GM301K | Single fan outdoor unit | Energy efficient | Commercial System
7 Years Manufacturer’s Warranty
- Self Cleaning Operation
- Connector Option
- Removable Drain Pan
- Comfort Sleep Operation
- Sleep Timer
- Power Saving Mode
- ON / OFF Timer
- Quiet Operation
- Hi-Power Operation
- Wireless Controller Included
$2,423.00 Bundle Price for Selected items
Description
5.0 kW Cooling
5.3 kW Heating
Single fan outdoor unit | Energy efficient
