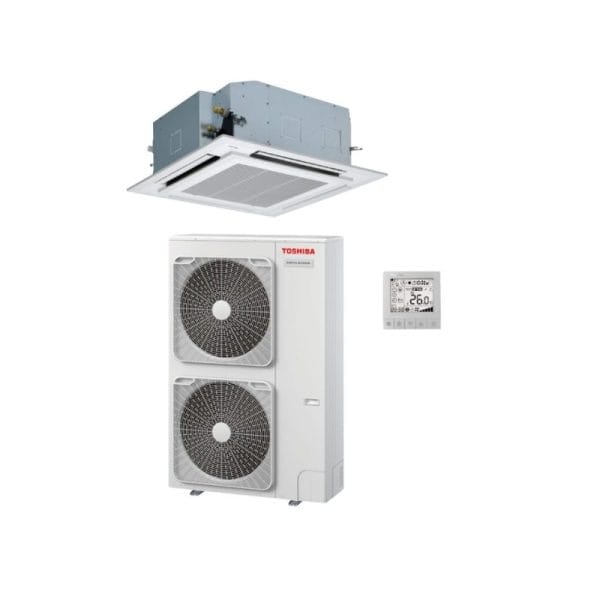

Toshiba GP1601U 14.0kW Super Digital Inverter 4 Way Cassette Air Conditioner
14.0 kW Cooling | 16.0 kW Heating
Toshiba GP1601U 14.0kW Super Digital Inverter 4 Way Cassette Air Conditioner
Indoor RAV-GM1601UTP-A | Outdoor RAV-GP1601ATP-A | Integrated drain pump | Energy Efficient | 1 Phase
Wired controller RBC-ASCU11-E | Fascia RBC-U32PGP-E
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM1601UTP-A | |
| OUTDOOR UNIT | RAV-GP1601ATP-A | |
| Cooling Capacity Range | kW | 14.0 [2.6 – 16.0] |
| Heating Capacity Range | kW | 16.0 [2.4 – 19.0] |
| EER | 3.23 | |
| COP | 3.74 | |
| Maximum Operating Current | A | 29 |
| Dimensions – Indoor [H x W x D] | mm | 319 x 840 x 840 |
| Dimensions – Outdoor [H x W x D] | 1340 x 900 x 320 | |
| Dimensions – Panel [H x W x D] | 30 x 950 x 950 | |
| Weight – Indoor / Outdoor / Panel | kg | 24 / 102 / 4.2 |
| Airflow [H / M / L] | l/s | 638 / 511 / 416 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 48 / 58 |
| Operating Range Cooling | oC db | -15 to 52 |
| Operating Range Heating | -20 to 24 | |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift | m | 75 / 30 |
| Maximum Pre-charged Length | 30 | |
| Power Supply | Ph / v / Hz | 1ph / 220-240V / 50Hz |
- Optimal air distribution
- External fresh air supply
- Corner pockets for easy access
- Self Clean operation
- High ceiling installations
- Integrated drain pump
- Innovative air flow control panel design
$5,639.00 Bundle Price for Selected items
Description
14.0 kW Cooling
16.0 kW Heating
Integrated drain pump | Energy Efficient | 1 Phase
