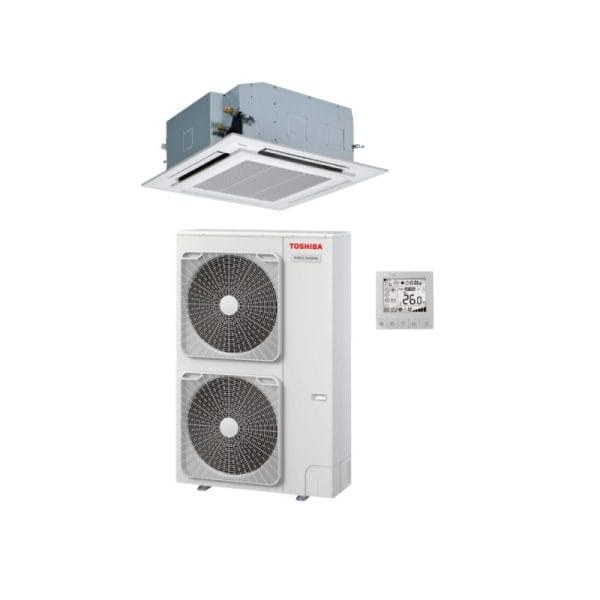

Toshiba GM1601AT8U 14.0kW Digital Inverter 4 Way Cassette Air Conditioner
14.0 kW Cooling | 16.0 kW Heating
Toshiba GM1601AT8U 14.0kW Digital Inverter 4 Way Cassette Air Conditioner
Indoor RAV-GM1601UTP-A | Outdoor RAV-GM1601AT8P-A | Integrated drain pump | 3 Phase
Wired controller RBC-ASCU11-E | Fascia RBC-U32PGP-E
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM1601UTP-A | |
| OUTDOOR UNIT | RAV-GM1601AT8P-A | |
| Cooling Capacity Range | kW | 14.0 [3.0 – 16.0] |
| Heating Capacity Range | kW | 16.0 [3.0 – 18.0] |
| EER | 3.20 | |
| COP | 3.65 | |
| Maximum Operating Current | A | 16.10 |
| Dimensions – Indoor [H x W x D] | mm | 319 x 840 x 840 |
| Dimensions – Outdoor [H x W x D] | 1340 x 900 x 320 | |
| Dimensions – Panel [H x W x D] | 30 x 950 x 950 | |
| Weight – Indoor / Outdoor / Panel | kg | 24 / 100 / 4.2 |
| Airflow [H / M / L] | l/s | 597 / 416 / 350 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 47 / 58 |
| Operating Range Cooling | oC db | -15 to 52 |
| Operating Range Heating | -20 to 24 | |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift | m | 50 / 30 |
| Maximum Pre-charged Length | 30 | |
| Power Supply | Ph / V / Hz | 3ph / 380-415V / 50Hz |
- Optimal air distribution
- Optional external fresh air supply
- Corner pockets for easy access
- Self-clean operation
- Suitable for high ceiling installations
- Integrated drain pump
- Innovative air flow control panel design
$5,919.00 Bundle Price for Selected items
Description
14.0 kW Cooling
16.0 kW Heating
Integrated drain pump | 3 Phase
