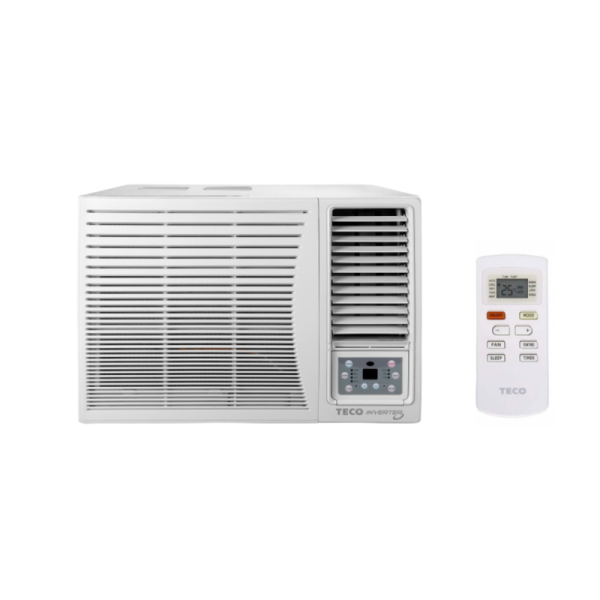

TECO TWW28HVAG 2.8kW Inverter Window Wall Reverse Cycle Air Conditioner
2.8 kW Cooling | 2.43 kW Heating
TECO TWW28HVAG 2.8kW Inverter Window Wall Reverse Cycle Air Conditioner
High Density Filters, Filter Dirty Alarm, Gold Fin Protection, Filter Dirty Alarm, Electronic Control with Remote
H375mm x W560mm x D708mm | 5 Year Domestic Warranty
| TECO INVERTER WINDOW WALL AIR CONDITIONER | — | 2.8kW | |
| TECO Model | — | TWW28HVAG | |
| TECO EAN Code | — | 9346998006732 | |
|
Power Supply
|
Rated Voltage | V | 220-240 |
| Rated Frequency | Hz | 50 | |
| Phases | — | 1 | |
| Cooling Capacity | W | 2800 | |
| Cooling Capacity Range | W | 2800(Rated)/1450(Mid) | |
| Cooling Power Input | W | 850 | |
| Cooling Power Input Range | W | 850(Rated)/420(Mid) | |
| Cooling Power Current | A | 4.5 | |
| Cooling Power Current Range | A | 4.5(Rated)/2.08(Mid) | |
| Heating Capacity | W | 2430 | |
| Heating Capacity Range | W | 2400(Rated)/1220(Mid) | |
| Heating Power Input | W | 770 | |
| Heating Power Input Range | W | 780(Rated)/330(Mid) | |
| Heating Power Current | A | 4.5 | |
| Heating Power Current Range | A | 4.5(Rated)/1.7(Mid) | |
| EER | W/W | 3.2941 | |
| AEER | W/W | 3.2426 | |
| Cooling Star Rating (Hot / Mixed / Cold) | 2.5/2/2 | ||
| Cooling Energy Consumption (Hot / Mixed / Cold) | kWh/year | 892/304/202 | |
| COP | W | 3.1558 | |
| ACOP | W | 3.1015 | |
| Heating Star Rating (Hot / Mixed / Cold) | 1.5/0.5/0.5 | ||
| Heating Energy Consumption (Hot / Mixed / Cold) | kWh/year | 71/559/1533 | |
| Noise (Energy Label – Indoor / Outdoor) | dB(A) | 60/66 | |
| Rated Input (Max) | W | 1250 | |
| Rated Current (Max) | A | 7 | |
| Inactive Energy (Avg) | W | 4 | |
| Air Flow Volume(H/M/L) | m3/h | 420/380/340 | |
| Air Flow Volume(H/M/L) | L/s | 117/106/94 | |
| Air Flow Volume(H/M/L) | CFM | 247/224/200 | |
| Dehumidifying Volume | L/h | 1.6 | |
| Dehumidifying Volume | Pint/h | 3.38 | |
| Application Area | m2 | 16-24 | |
| Permissible Excessive Operating Pressure for the Discharge Side | MPa | 4.3 | |
| Permissible Excessive Operating Pressure for the Suction Side | MPa | 2.5 | |
| Maximum Allowable Pressure | MPa | 4.3 | |
| Climate Type | — | T1 | |
| Isolation | — | I | |
| Moisture Protection | — | IPX4<outdoor> | |
| Evaporater Coil Hydrophilic Coating | — | Blue | |
| Condensor Coil Hydrophilic Coating | — | Gold | |
| Dimension (W×H×D) | mm | 560x375x708 | |
| Recommended Cut Out Size (W×H) | mm | 565×380 | |
| Dimension of Carton Box (L×W×H) | mm | 803x620x410 | |
| Dimension of Package (L×W×H) | mm | 806x623x425 | |
| Net Weight | kg | 38 | |
| Gross Weight | kg | 41 | |
| Stacking layers | 6 | ||
| Refrigerant | — | R32 | |
| Refrigerant Charge | kg | 0.55 | |
|
Indoor Side
|
Fan Type | Centrifugal | |
| Set Temperature Range | ℃ | 16～30 | |
| Sound Pressure Level (H/M/L) | dB (A) | 49/47/45 | |
| Sound Power Level (H/M/L) | dB (A) | 59/57/55 | |
|
Outdoor Side
|
|||
| Cooling Operation Ambient Temperature Range | ℃ | 18～43 | |
| Heating Operation Ambient Temperature Range | ℃ | -7～24 | |
| Sound Pressure Level (H/M/L) | dB (A) | 58/56/54 | |
| Sound Power Level (H/M/L) | dB (A) | 68/66/64 | |
| Container Loading Quantity (20GP/40GP/40HQ) | 125/260/312 | ||
| Electronic Control with Remote Controller | YES | ||
|
General Function
|
Auto | YES | |
| Cooling | YES | ||
| Heating | YES | ||
| Dehumidify | YES | ||
| Sleep | YES | ||
| Timer | YES | ||
| Auto Swing (Horizontal Auto Swing) | YES | ||
| Air Flow | YES | ||
| Memory | YES | ||
| Auto Fan | YES | ||
| Filter Dirty Alarm | YES | ||
| Soft Start | YES | ||
| Low Voltage Startup | YES | ||
| Intelligent Preheating | YES | ||
| Auto Restart | YES | ||
| Self Diagnosis | YES | ||
| Silver Ion Sterilizing Filter | YES | ||
- The TECO 2.8kW Inverter Window/Wall Air Conditioner is designed to deliver efficient and reliable cooling and heating for small to medium spaces. Featuring a compact design, this unit seamlessly integrates into any home or office setting. Its eco-friendly R32 refrigerant, coupled with the latest Inverter technology, ensures optimal energy performance and comfort all year round. Perfect for bedrooms or living spaces, this air conditioner offers intuitive operation through user-friendly electronic controls and a wireless remote.
Description
2.8 kW Cooling
2.43 kW Heating
Inverter Type
