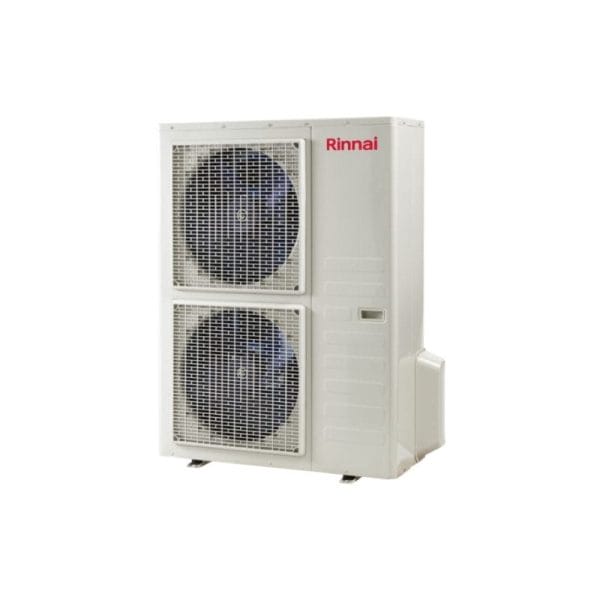

Rinnai MON6H18B 17.5kW Multi System Air Conditioner Outdoor Only

SKU: MON6H18B

17.5 kW Cooling | 20.0 kW Heating | 1 Phase
Rinnai MON6H18B 17.5kW Multi System Air Conditioner Outdoor Only
6 Max Connectable Indoors Units
Combination Table | Part of a multi system
7 Years Manufacturer’s Warranty

$4,065.00

Or own it from $156.35 weekly for 6 months*

Or pay in slices, no interest ever

Rinnai Air Conditioning> Rinnai Inverter Multi Split Systems> Rinnai Outdoor Unit Only Air Conditioner

Multi Outdoor Unit			MON6H18B
Number of connected Indoor Units		Qty	6
Power Supply (To Outdoor Unit)		V-Ph-Hz	220~240-1-50
Cooling	Rated Capacity (Range)	kW	17.5 (4.57~18.5)
	Rated Input Power	kW	5.0
	Rated Input Current	A	22.80
	AEER	W/W	3.45
Heating	Rated Capacity (Range)	kW	20.0 (4.98~20.7)
	Rated Input Power	W	5.10
	Rated Input Current	A	24.00
	ACOP	W/W	3.87
Maximum Input Current		A	33
Recommended Circuit Breaker		A	40
Compressor		Type	Inverter Twin Rotary
Sound Power Level		dB(A)	71
Dimensions	Net (W x D x H)	mm	952 x 415 x 1333
	Gross (W x D x H)	mm	1095 x 495 x 1480
	Net / Gross Weight	kg	110.6 / 124.9
Refrigerant Type			R32
Refrigerant Piping	Connection Size: Liquid Line	mm	6 x Φ6.35
	Connection Size: Gas	mm	4 xΦ9.52 + 2 x Φ12.7
	Maximum Total System Pipe Length	m	80
	Pre-Charged Length	m	45
	Maximum Length Per Indoor Unit	m	35
	Maximum Vertical Separation Outdoor Unit ABOVE Indoor Unit	m	10
	Maximum Vertical Separation Outdoor Unit BELOW Indoor Unit	m	15
	Maximum Height Difference Between Indoor Units	m	10
	Factory Precharge	g	4300
Ambient Temperature Limits	Cooling	°C	-15~50
Ambient Temperature Limits	Heating	°C	-25~30

Rinnai Multi Split Systems Outdoor Units are designed for powerful performance, durability, and energy efficiency. Built to withstand harsh Australian conditions, these units provide reliable cooling and heating for residential and commercial spaces. With advanced inverter technology, they ensure optimal temperature control while reducing energy consumption. Enjoy quiet operation, eco-friendly refrigerants, and seamless integration with Rinnai indoor systems for year-round comfort.

Rinnai MON6H18B 17.5kW Multi System Air Conditioner Outdoor Only – Brochure
