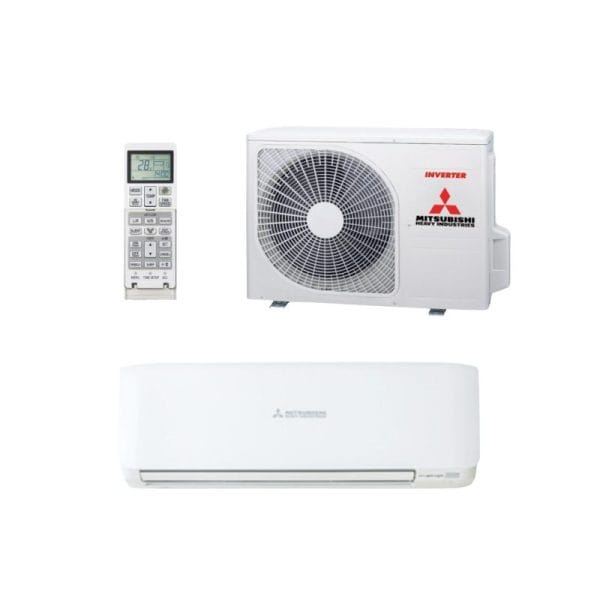

Mitsubishi Heavy Industries AVANTI SRK18YSA-W-Set 5.0kW Cool Only Inverter Split System Air Conditioner
5.0 kW Cooling
Mitsubishi Heavy Industries AVANTI SRK18YSA-W-Set 5.0kW Set Cool Only Inverter Split System Air Conditioner
Indoor: SRK18YSA-W | Outdoor: SRC18YSA-W | System: SRK18YSA-W-Set
Includes Wireless Controller
5 years manufacturer’s warranty
| CAPACITY | 5.0kW (Cool Only) | |||
| Indoor | SRK18YSA-W | |||
| Outdoor | SRC18YSA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.0 (1.2~5.5) |
| Heating H1 | N/A | |||
| Heating H2 | N/A | |||
|
Power Consumption
|
Cooling T1 | 1.39 (0.27~1.86) | ||
| Heating H1 | N/A | |||
| Maximum Power Consumption | 2.68 | |||
|
Running Current
|
Cooling T1 |
A
|
5.9 | |
| Heating H1 | N/A | |||
| Inrush Current, Maximum Current | 5.0, 14.5 | |||
| EER | Cooling T1 | 3.6 | ||
| COP | Heating H1 | N/A | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
61 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 43-36-28-22 | ||
| Outdoor | 47 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3.5 | |
| Heating | N/A | |||
|
Average
|
Cooling | -3 | ||
| Heating | N/A | |||
|
Cold
|
Cooling | -3 | ||
| Heating | N/A | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
290x870x230 | |
| Outdoor | 640×800(+71)x290 | |||
|
Net weight
|
Indoor |
kg
|
10 | |
| Outdoor | 40 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
213-175-113-93 | |
| Heating (Indoor) | N/A | |||
|
Installation Data
|
Refrigerant
(Type, Amount, Pre-charge Length) |
Quantity | kg | (R32) 1.05 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
25 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Enzyme Filter & Photocatalytic Washable Deodorizing Filter | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | |||
| Demand Response (AS4755) | Yes | |||
HIGH POWER OPERATION
Provides 15mins of boosted power allowing you to quickly heat or cool your home before returning to normal operation.
LED BRIGHTNESS CONTROL
Adjust the brightness of the LED display on the indoor unit to minimise disturbance and ensure a good nights sleep.
3D AUTO MODE
Activates three independent motors which de- liver an effective and efficient airflow through- out the room.
CLEAN AIR TECHNOLOGY
Captures and neutralises fine smoke particles, allergens, odours bacteria and viruses while also inhibiting growth of mould within the unit*
Description
5.0kW Cooling
3D Auto airflow | Even air distribution
