Mitsubishi Heavy Industries FDUM50ZSXAWVH 5kW Medium Static Ducted Air Conditioner System | Single Phase

SKU: FDUM50ZSXAWVH / FDUM50VH / SRC50ZSXA-W / RC-EXZ3A

5.0 kW Cooling | 5.4 kW Heating

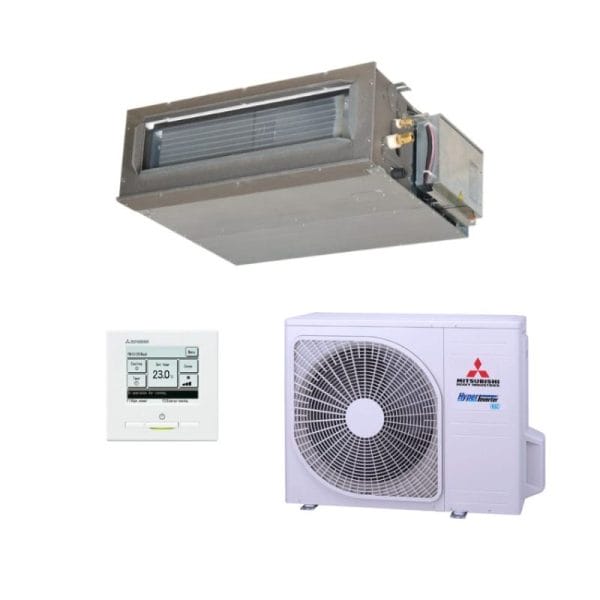

Mitsubishi Heavy Industries FDUM50ZSXAWVH 5kW Medium Static Ducted Air Conditioner System | Single Phase
Includes Indoor: FDUM50VH Outdoor: SRC50ZSXA-W
Includes RC-EXZ3A Wired Controller – Medium Static Ducted
Dry Operation to reduce Humidity | Silent Operation
5 Years Manufacturer’s Warranty | 15m Precharged and 30m max pipe length

$2,539.00

Or own it from $97.65 weekly for 6 months*

Or pay in slices, no interest ever

				5.0 KW
Set				FDUM50ZSXAWVH
Indoor				FDUM50VH
Outdoor				SRC50ZSXA-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	5.0 (1.1-5.6)
		Heating H1		5.4 (0.6-6.3)
		Heating H2		4.80
	Power Consumption	Cooling T1		1.51
		Heating H1		1.59
	Max Power Consumption			2.90
	Running Current	Cooling T1	A	6.9
		Heating H1		7.2
	Inrush Current, Maximum Current			5, 15
	EER	Cooling T1		3.31
	COP	Heating H1		3.39
	Sound Power Level (JS C9612)	Outdoor	dB(A)	63
	Sound Pressure Level (JS C9612)	Indoor		P-Hi:37 Hi:32 Me:29 Lo:26
		Outdoor		52
External Dimensions (HXWXD)		Indoor	mm	280x750x635
		Outdoor		640×800(+71)x290
Net Weight		Indoor	Kg	29
		Outdoor		45
Supply Air Connection			mm	170×680
Return Air Connection				200×660
External Static Pressure (Max)			Pa	100
Airflow		Indoor (Cooling)	l/s	P-Hi:217 Hi:167 Me:150 Lo:133
		Indoor (Heating)
Refrigerant (Type, Amount, Pre-charge Length)		Quantity	kg	(R32) 1.3
		Pre Charged To Pipe Length	m	15
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø6.35
		Gas Line		Ø12.7
	Connection Method			Flare Connection
	Maximum Pipe Length (One Way)		m	30
	Max vertical height diff. between O.U. and I.U.			20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				Yes
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to +46
		Heating		-20 to +24

The FDUM series of ducted systems are a quiet and compact solution for heating and cooling multiple rooms. Coming in 5.0kW and 5.6kW capacities, the FDUM series incorporates a range of convenient features and functions including Automatic Mode, High Power Mode, Silent Mode and a range of timer and scheduling functions making them the perfect climate solution for smaller Aussie homes.

POWER: Single Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 5.0kW | 5.6kW
