Mitsubishi Heavy Industries FDUA100AVNAWVH10.0kW High Static Ducted System | 1 Phase
10.0 kW Cooling | 11.2 kW Heating

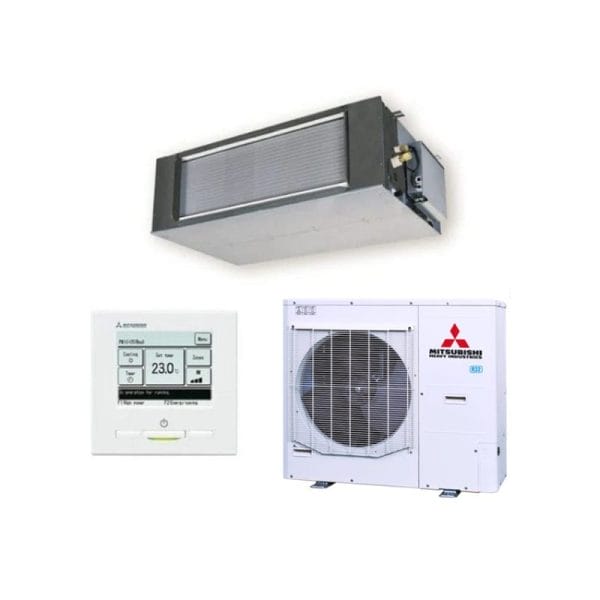

Mitsubishi Heavy Industries FDUA100AVNAWVH 10.0kW High Static Ducted System | 1 Phase
Includes Indoor FDUA100VH | Outdoor FDCA100VNA-W
Optional – No Controller | Standard Wired Controller | 4 Zone Wired Controller | 8 Zone Wired Controller
5 Years Manufacturer’s Warranty | Max Pipe length: 50m
Price range: $3,690.00 through $4,820.00
| CAPACITY | 10.0KW | |||||||||||||||||||||
| Set | FDUA100AVNAWVH | |||||||||||||||||||||
| Indoor | FDUA100VH | |||||||||||||||||||||
| Outdoor | FDCA100VNA-W | |||||||||||||||||||||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||||||||||||||||||||
|
*Operation Data
|
Nominal Capacity Range
|
Cooling T1 |
kW
|
10.0 (4.0-11.2) | ||||||||||||||||||
| Heating H1 | 11.2 (4.0-12.5) | |||||||||||||||||||||
| Heating H2 | 10 | |||||||||||||||||||||
|
Power Consumption
|
Cooling T1 | 3.05 | ||||||||||||||||||||
| Heating H1 | 2.87 | |||||||||||||||||||||
| Max Power Consumption | 6.4 | |||||||||||||||||||||
|
Running Current
|
Cooling T1 |
A
|
14.7 | |||||||||||||||||||
| Heating H1 | 14 | |||||||||||||||||||||
| Inrush Current, Maximum Current | 5, 26 | |||||||||||||||||||||
| EER | Cooling T1 | 3.28 | ||||||||||||||||||||
| COP | Heating H1 | 3.9 | ||||||||||||||||||||
| Sound Power Level (JS C9612) | Outdoor |
dB(A)
|
69 | |||||||||||||||||||
|
Sound Pressure Level (JS C9612)
|
Indoor | P-Hi:43 Hi:42 Me:40 Lo:37 | ||||||||||||||||||||
| Outdoor | 55 | |||||||||||||||||||||
|
External Dimensions (HXWXD)
|
Indoor |
mm
|
398x1150x650 | |||||||||||||||||||
| Outdoor | 845x970x370 | |||||||||||||||||||||
|
Net Weight
|
Indoor |
Kg
|
52 | |||||||||||||||||||
| Outdoor | 77 | |||||||||||||||||||||
| Supply Air Connection |
mm
|
348×898 | ||||||||||||||||||||
| Return Air Connection | 348×898 | |||||||||||||||||||||
| External Static Pressure (Max) | Pa | 200 | ||||||||||||||||||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
P-Hi:650 Hi:600 Me:550 Lo:483 |
|||||||||||||||||||
| Indoor (Heating) | ||||||||||||||||||||||
|
Refrigerant (R32)
|
Quantity | kg | 3.3 | |||||||||||||||||||
| Pre Charged To Pipe Length |
m | 30 | ||||||||||||||||||||
|
Installation Data
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø9.52 | ||||||||||||||||||
| Gas Line | Ø15.88 | |||||||||||||||||||||
| Connection Method | ||||||||||||||||||||||
| Maximum Pipe Length (One Way) |
m
|
50 | ||||||||||||||||||||
| Max vertical height diff. between O.U. and I.U. | 50 ( O.U. above I.U.) /15 (O.U. below I.U.) |
|||||||||||||||||||||
| Controller | ||||||||||||||||||||||
| Safety Pan (Optional) | UA-SP2-E | |||||||||||||||||||||
| Motion Sensor (Optional) | ||||||||||||||||||||||
| Demand response (AS4755) | Yes | |||||||||||||||||||||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 50 | |||||||||||||||||||
| Heating | -20 to 20 | |||||||||||||||||||||
Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.
■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE
Description
10.0 kW Cooling
11.2 kW Heating
Quieter Operation | Max pipe length 50m
