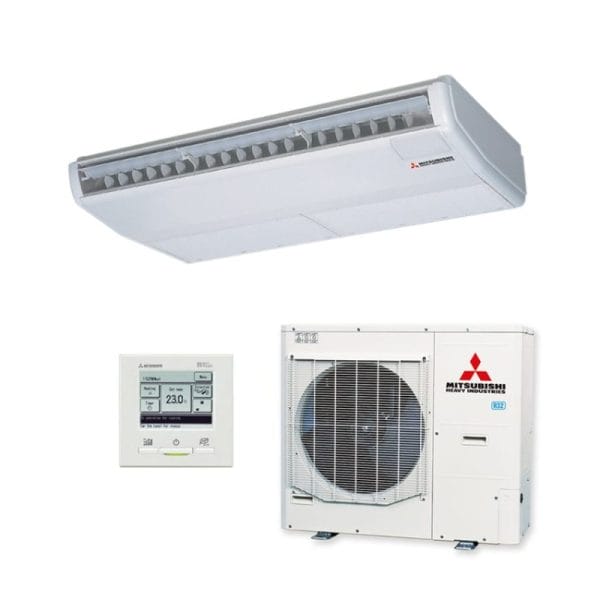

Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner - Single Phase
Air Conditioning Free Pickup Locations
Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner - Single Phase

Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner | Single Phase

SKU: FDE100AVNAWVH / FDE100VH / FDCA100VNA-W / RC-EXZ3A

10.0 kW Cooling | 11.2 kW Heating
Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner | Single Phase
Includes Indoor FDE100VH  | Outdoor FDCA100VNA-W
Includes RC-EXZ3A Wired Controller | Quiet Operation | High Power Mode
5 Years Manufacturer’s Warranty | Max Pipe length: 50m


$4,369.00

Or own it from $168.04 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > >
CAPACITY 10.0kW
Set FDE100AVNAWVH
Indoor FDE100VH
Outdoor FDCA100VNA-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation Data
Nominal Capacity (Range)
 Cooling T1
kW
 10.0 (4.0-11.2)
Heating H1 11.2 (4.0-12.5)
Heating H2 10
Power Consumption
 Cooling T1 2.85
Heating H1 2.54
Maximum Power Consumption 6.4
Running Current
 Cooling T1
A
 13.8
Heating H1 12.4
Inrush Current, Maximum Current 5, 24
EER Cooling T1
3.51
COP Heating H1 4.41
Sound Power Level (JIS C9612) Outdoor
dB(A)
 69
Sound Pressure Level (JIS C9612)
 Indoor P-Hi:48 Hi:43 Me:38 Lo:34
Outdoor 54
External dimensions (HXWXD)
 Indoor
mm
 250x1620x690
Outdoor 845×970×370
Net weight
 Indoor
kg
 43
Outdoor 77
Airflow
 Cooling (Indoor)
l/s
P-Hi:533 Hi:433 Me: 350 Lo:275
Heating (Indoor)
Installation Data
Refrigerant (R32)
 Quantity kg 3.3
Pre-Charged to Pipe m 30
Refrigerant Piping
 Liquid Line
mm
 Ø9.52
Gas Line Ø15.88
Connection Method Flare Connection
Maximum Pipe Length (One Way)
m
 50
Max Vertical Height Diff. Between O.U. and I.U. 50 ( O.U. above I.U. ) /
15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-E-E3
Motion Sensor (Optional) LB-E
Demand Response (AS4755) Yes
Outdoor air temperature (upper, lower limits)
 Cooling
oC
 -15 to 50
Heating -20 to 20

The FDE series of ceiling suspended systems offer a versatile solution for commercial spaces with limited floor or ceiling space such as restaurants, cafes and retail spaces.

With a reduction in weight and improved component design, the FDE series boasts easier installation, higher energy efficiency and quieter operation.

POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 7.1kW | 10.0kW | 12.1kW | 12.5kW | 14.0kW

Key features

  • Quiet operation
  • Various timer functions for convenience
  • High Power mode for rapid cooling/heating

Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner | Single Phase – Brochure

Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner - Single Phase
$4,369.00

Mitsubishi Heavy Industries FDE100AVNAWVH 10kW Ceiling Suspended Air Conditioner | Single Phase
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$429.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
$279.00

Mitsubishi Heavy Industries LB-E Motion Sensor for FDE Series
Mitsubishi Heavy Industries RCN-E-E3 Infrared Receiver Kit for FDE Series
$203.00

Mitsubishi Heavy Industries RCN-E-E3 Infrared Receiver Kit for FDE Series
$5,280.00 Bundle Price for Selected items

Description

10.0 kW Cooling
11.2 kW Heating

Quiet Operation | High Power Mode
