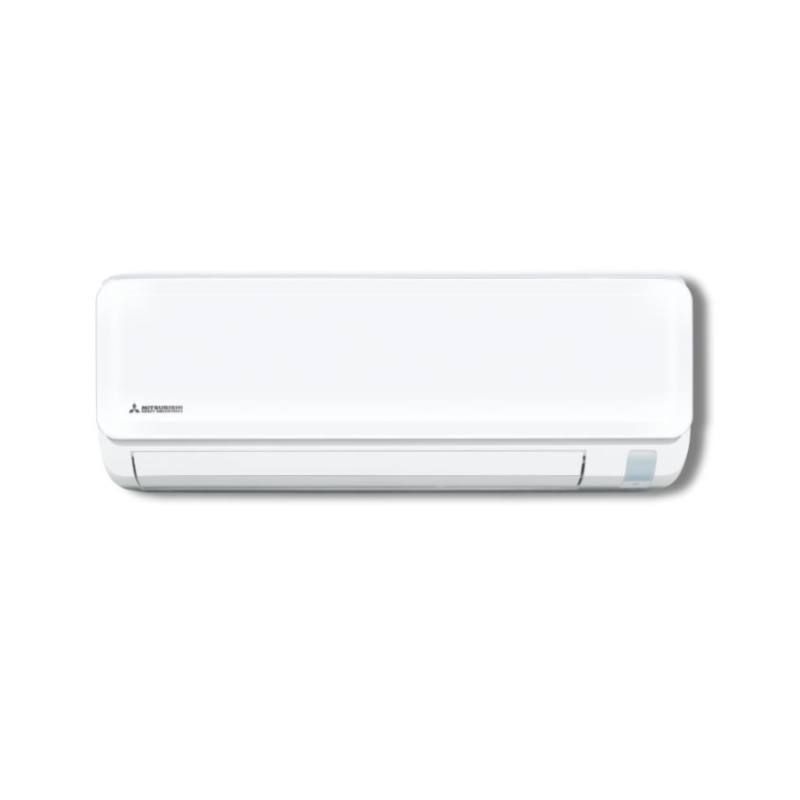

Mitsubishi Heavy Industries Ciara DXK18ZTLA-WF-Set 5.0kW Inverter Split System Air Conditioner
5.0kW Cooling Capacity | 5.8kW Heating Capacity
Mitsubishi Heavy Industries Ciara DXK07ZTLA-WF-Set 2.0KW Inverter Split System Air Conditioner
Indoor: DXK18ZTLA-WF | Outdoor : DXC18ZTLA-W | System: DXK18ZTLA-WF-Set
5 years manufacturer’s warranty
Includes Wireless Controller
Includes WIFI Built-in
| CAPACITY | 5.0kW | |||
| Indoor | DXK18ZTLA-WF | |||
| Outdoor | DXC18ZTLA-W | |||
| Power Source (Outdoor Unit) | 1 Phase, 220 – 240V, 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.0 (1.3~5.3) |
| Heating H1 | 5.8 (1.3~6.3) | |||
| Heating H2 | 4.6 | |||
|
Power Consumption
|
Cooling T1 | 1.59 (0.29-1.77) | ||
| Heating H1 | 1.62 (0.27~2.04) | |||
| Maximum Power Consumption | 2.25 | |||
|
Running Current
|
Cooling T1 |
A
|
6.7 | |
| Heating H1 | 6.8 | |||
| Inrush Current, Maximum Current | 5.0, 14.5 | |||
| EER | Cooling T1 | 3.14 | ||
| COP | Heating H1 | 3.58 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
64 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 47-40-32-25 | ||
| Outdoor | 52 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3.5 | |
| Heating | -3.5 | |||
|
Average
|
Cooling | -3 | ||
| Heating | -3 | |||
|
Cold
|
Cooling | -3 | ||
| Heating | -2.5 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
294x798x210 | |
| Outdoor | 595×780(+62)x290 | |||
|
Net weight
|
Indoor |
kg
|
9.5 | |
| Outdoor | 33 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
208-173-120-90 | |
| Heating (Indoor) | 210-192-148-107 | |||
|
Installation Data
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 0.9 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
25 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear Filter x 1, Wi-Fi | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Photocatalytic Washable Deodorizing Filter | |||
| Demand Response (AS4755) | Yes | |||
BUILT-IN WI-FI
Wi-Fi & voice control compatibility now includ- ed as standard*. Control your air-conditioner anywhere, anytime with your smartphone.
BACKLIT REMOTE CONTROL
Easy to use remote with backlit screen for dark/night time operation. Accurate tempera- ture control via 0.5°C increments.
SILENT MODES
Two levels of silent mode are available to further reduce the outdoor unit noise level.
COMPACT DESIGN
A compact and lightweight design allows for improved installation flexibility and installation into smaller spaces such as apartments.
Description
5.0 kW Cooling
5.8 kW Heating
Built In WIFI & Voice Control
