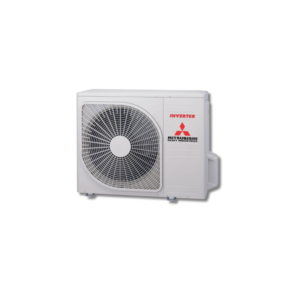

Mitsubishi Heavy Industries Ciara DXK05ZTLA-WF-Set 1.5KW Inverter Split System Air Conditioner - Image 2
Mitsubishi Heavy Industries Ciara DXK18ZTLA-WF 5.0KW Reverse Cycle
Air Conditioning Free Pickup Locations
Mitsubishi Heavy Industries Ciara DXK05ZTLA-WF-Set 1.5KW Inverter Split System Air Conditioner
Mitsubishi Heavy Industries Ciara DXK18ZTLA-WF 5.0KW Reverse Cycle

Mitsubishi Heavy Industries Ciara DXK05ZTLA-WF-Set 1.5KW Inverter Split System Air Conditioner

SKU: DXK05ZTLA-WF-Set | DXK05ZTLA-WF | DXC05ZTLA-W

1.5kW Cooling | 2.0kW Heating
Mitsubishi Heavy Industries Ciara DXK05ZTLA-WF-Set 1.5KW Inverter Split System Air Conditioner
Indoor: DXK05ZTLA-WF | Outdoor: DXC05ZTLA-W | System: DXK05ZTLA-WF-Set

5 years manufacturer’s warranty
Includes Wireless Controller
Includes WIFI Built-in


$726.00

Or own it from $27.92 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > >
CAPACITY 1.5kW
Indoor DXK05ZTLA-WF
Outdoor DXC05ZTLA-W
Power Source (Outdoor Unit) 1 Phase, 220 – 240V, 50Hz
*Operation Data
Nominal Capacity (Range)
 Cooling T1
kW
 1.5 (0.7~2.5)
Heating H1 2.0 (0.9 ~4.1)
Heating H2 3.1
Power Consumption
 Cooling T1 0.35 (0.20~0.85)
Heating H1 0.42 (0.21~1.39)
Maximum Power Consumption 1.55
Running Current
 Cooling T1
A
 1.9
Heating H1 2.3
Inrush Current, Maximum Current 2.4, 9.0
EER Cooling T1
4.29
COP Heating H1 4.76
Sound Power Level (JIS C9612) Outdoor
dB(A)
 56
Sound Pressure Level (JIS C9612)
 Indoor 36-30-23-19
Outdoor 43
Energy Label (GEMS 2019)
Hot
 Cooling
Stars
Heating
Average
 Cooling
Heating
Cold
 Cooling
Heating
External dimensions (HXWXD)
 Indoor
mm
 294x798x210
Outdoor 540×645(+57)x275
Net weight
 Indoor
kg
 8.5
Outdoor 22
Airflow
 Cooling (Indoor)
l/s
 158-125-82-63
Heating (Indoor) 167-145-97-73
Installation Data
Refrigerant (Type, Amount, Pre-charge Length)
 Quantity kg (R32) 0.43
Pre-Charged to Pipe m 10
Refrigerant Piping
 Liquid line
mm
 Ø6.35
Gas line Ø9.52
Connection Method Flare connection
Maximum Pipe Length (One Way)
m
 20
Max Vertical Height Diff. Between O.U. and I.U. 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Standard accessories Allergen Clear Filter x 1, Wi-Fi
Optional parts Interface kit (SC-BIKN2-E) / Photocatalytic Washable Deodorizing Filter
Demand Response (AS4755) No

BUILT-IN WI-FI
Wi-Fi & voice control compatibility now includ- ed as standard*. Control your air-conditioner anywhere, anytime with your smartphone.

BACKLIT REMOTE CONTROL
Easy to use remote with backlit screen for dark/night time operation. Accurate tempera- ture control via 0.5°C increments.

SILENT MODES
Two levels of silent mode are available to further reduce the outdoor unit noise level.

COMPACT DESIGN
A compact and lightweight design allows for improved installation flexibility and installation into smaller spaces such as apartments.

Mitsubishi Heavy Industries Ciara DXK05ZTLA-WF-Set 1.5KW Inverter Split System Air Conditioner – Brochure

Description

1.5 kW Cooling
2.0 kW Heating

Built In WIFI & Voice Control
