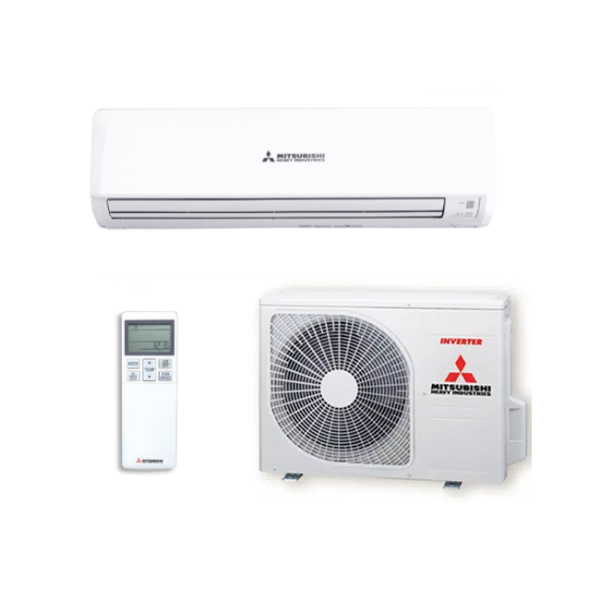

Mitsubishi Heavy Industries Bronte DXK21ZRA-W-Set 6.3kW Inverter Split System Air Conditioner

SKU: DXK21ZRA-W-Set / DXK21ZRA-W / DXC21ZRA-W

6.3kW Cooling | 7.1kW Heating
Mitsubishi Heavy Industries Bronte DXK21ZRA-W-Set 6.3kW Inverter Split System Air Conditioner
Includes Indoor  DXK21ZRA-W  | Outdoor – DXC21ZRA-W
Includes Wireless Remote | Clean Air Technology
5 Years Manufacturer’s Warranty



$2,061.00

> > > > >
CAPACITY 6.3kW
Indoor DXK21ZRA-W
Outdoor DXC21ZRA-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation Data
Nominal Capacity (Range)
Cooling T1
kW
6.3 (1.2~7.4)
Heating H1 7.1 (0.8 ~9.2)
Heating H2 7
Power Consumption
Cooling T1 1.58 (0.2~2.5)
Heating H1 1.60 (0.16~2.8)
Maximum Power Consumption 2.9
Running Current
Cooling T1
A
6.7
Heating H1 6.7
Inrush Current, Maximum Current 6.7, 14.5
EER Cooling T1
3.99
COP Heating H1 4.44
Sound Power Level
(JIS C9612)
Outdoor
dB(A)
64
Sound Pressure Level (JIS C9612)
Indoor 44-39-35-25
Outdoor 54
Energy Label (GEMS 2019)
Hot
Cooling
Stars
Heating
Average
Cooling
Heating
Cold
Cooling
Heating
External dimensions (HXWXD)
Indoor
mm
339x1197x262
Outdoor 640×800(+71)x290
Net weight
Indoor
kg
15.5
Outdoor 45
Airflow
Cooling (Indoor)
l/s
342-301-262-173
Heating (Indoor) 392-317-275-218
Installation Data
Refrigerant (Type, Amount, Pre-charge Length)
Quantity kg (R32) 1.25
Pre-Charged to Pipe m 15
Refrigerant Piping
Liquid line
mm
Ø6.35
Gas line Ø12.70
Connection Method Flare connection
Maximum Pipe Length (One Way)
m
30
Max Vertical Height Diff. Between
O.U. and I.U.
20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Standard accessories Allergen Clear & Photocatalytic Washable Deodorizing Filter
Optional parts Interface kit (SC-BIKN2-E) / Wi-Fi Kit
Demand Response (AS4755) Yes

Named by ProductReview as the best split system of 2021-24, the Bronte® series of split systems incorporates advanced fan blade technology to efficiently deliver an industry leading, long reach airflow of 18m*. Available in both reverse cycle and cool only models, the Bronte® is best suited to medium to larger spaces.

HIGH POWER OPERATION
Provides 15mins of boosted power allowing you to quickly heat or cool your home before returning to normal operation.

JET AIR TECHNOLOGY
Advanced blade technology used in development of jet engines to deliver industry leading long reach airflow of 18m*

SILENT OPERATION
Set periods of time where the unit will operate with even further reduced noise levels

CLEAN AIR TECHNOLOGY
Captures and neutralises fine smoke particles, allergens, odours, bacteria and viruses while inhibiting growth of mould within the unit**.

Mitsubishi Heavy Industries Bronte DXK21ZRA-W-Set 6.3kW Inverter Split System Air Conditioner – Brochure

Description

6.3kW Cooling
7.1kW Heating

Jet Air Technology | Silent Operation
