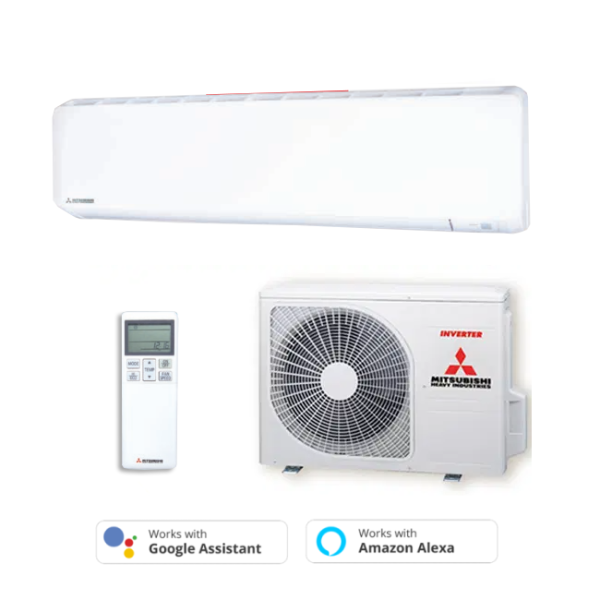

Mitsubishi Heavy Industries Bronte DXK21ZRA-WF1-Set 6.3kW Inverter Split System Air Conditioner
6.3kW Cooling | 7.1kW Heating
Mitsubishi Heavy Industries Bronte DXK21ZRA-WF1-Set 6.3kW Inverter Split System Air Conditioner
Includes Indoor DXK21ZRA-WF1 | Outdoor – DXC21ZRA-W
Includes Wireless Remote | Built In WIFI
5 Years Manufacturer’s Warranty
| Indoor | DXK21ZRA-WF1 | ||||
| Outdoor | DXC21ZRA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
6.3 (1.2~7.4) | |
| Heating H1 | 7.1 (0.8 ~9.2) | ||||
| Heating H2 | 7 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
1.58 (0.2~2.5) | ||
| Heating H1 | 1.60 (0.16~2.8) | ||||
| Maximum power consumption | kW | 2.9 | |||
|
Running current
|
Cooling T1 |
A
|
6.7 | ||
| Heating H1 | 6.7 | ||||
| Inrush current, maximum current | A | 6.7, 14.5 | |||
| EER | Cooling T1 | 3.99 | |||
| COP | Heating H1 | 4.44 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 64 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
44-39-35-25 | ||
| Outdoor | 54 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling | 4 | ||
| Heating | 3.5 | ||||
|
AVERAGE
|
Cooling | 3.5 | |||
| Heating | 3 | ||||
|
COLD
|
Cooling | 4 | |||
| Heating | 2.5 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
339x1197x262 | ||
| Outdoor | 640×800(+71)x290 | ||||
|
Net weight
|
Indoor |
kg
|
15.5 | ||
| Outdoor | 45 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
342-301-262-173 | ||
| Indoor (Heating) | 392-317-275-218 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.25 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.70 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 30 | |||
| Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen clear filter , NOVAShield Nano filter (PM2.5), Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
| * Operation data are conducted in accordance with AS/NZS 3823 standard. For testing conditions please refer to Page xxx | |||||
Named by ProductReview as the best split system of 2021-24, the Bronte® series of split systems incorporates advanced fan blade technology to efficiently deliver an industry leading, long reach airflow of 18m*. Available in both reverse cycle and cool only models, the Bronte® is best suited to medium to larger spaces.
Built In WIFI
HIGH POWER OPERATION
Provides 15mins of boosted power allowing you to quickly heat or cool your home before returning to normal operation.
JET AIR TECHNOLOGY
Advanced blade technology used in development of jet engines to deliver industry leading long reach airflow of 18m*
SILENT OPERATION
Set periods of time where the unit will operate with even further reduced noise levels
CLEAN AIR TECHNOLOGY
Captures and neutralises fine smoke particles, allergens, odours, bacteria and viruses while inhibiting growth of mould within the unit**.
Description
6.3kW Cooling
7.1kW Heating
Jet Air Technology | Clean Air Technology
Built In WIFI
