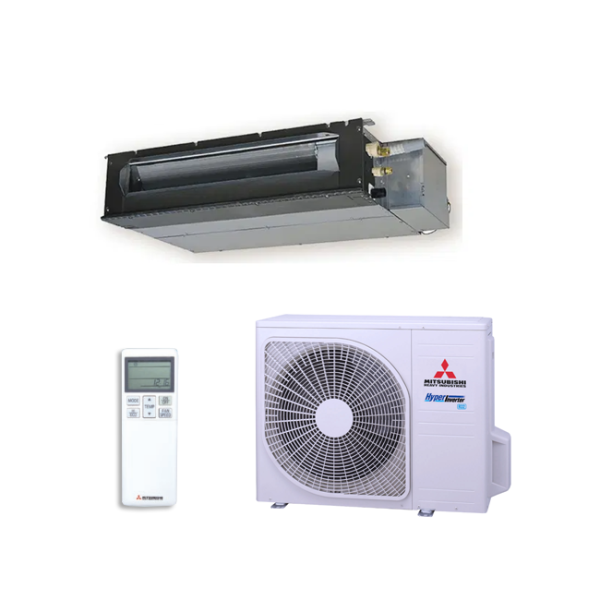

Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner
Air Conditioning Free Pickup Locations
Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner

Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner

SKU: SRR50ZS-W-Set / SRR50ZS-W / SRC50ZSXA-W

5.0 kW Cooling | 5.4 kW Heating
Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner
Includes: Indoor SRR50ZS-W | Outdoor: SRC50ZSXA-W
Includes Wireless Controller | Compact Design
5 Year’s Manufacturer’s Warranty


$1,943.00

Or own it from $74.73 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > >
CAPACITY 5.0kW
Indoor SRR50ZS-W
Outdoor SRC50ZSXA-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Opera- tion Data
Nominal Capacity (Range)
 Cooling T1
kW
 5.0 (1.2-6.0)
Heating H1 5.4 (1.0-8.2)
Heating H2 6
Power Consumption
 Cooling T1 1.42 (0.22-2.02)
Heating H1 1.39 (0.2-2.86)
Maximum Power Consumption 2.9
Running Current
 Cooling T1
A
 6
Heating H1 5.9
Inrush Current, Maximum Current 5.0, 15.0
EER Cooling T1
3.52
COP Heating H1 3.88
Sound Power Level (JIS C9612) Outdoor
dB(A)
 63
Sound Pressure Level (JIS C9612)
 Indoor 41-37-34-29
Outdoor 51
Energy Label (GEMS 2019)
Hot
 Cooling -3
Heating -3.5
Aver- age
 Cooling -3
Heating -2.5
Cold
 Cooling -3
Heating -2
External dimensions (HXWXD)
 Indoor
mm
 200×950(+120)x500
Outdoor 640×800(+71)x290
Net weight
 Indoor
kg
 24
Outdoor 45
Airflow
 Cooling (Indoor)
l/s
 225-183-167-125
Heating (Indoor) 233-208-183-142
Installa- tion Data
Refrigerant (Type, Amount, Pre- charge Length)
 Quantity kg (R32) 1.3
Pre-Charged to
Pipe		 m 15
Refrigerant Piping
 Liquid line
mm
 Ø6.35
Gas line Ø12.7
Connection Method Flare connection
Maximum Pipe Length (One Way)
m
 30
Max Vertical Height Diff. Between O.U. and I.U. 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Standard accessories Polypropylene net x1
Optional parts Interface kit (SC-BIKN2-E) / Wi-Fi Kit
Demand Response (AS4755) Yes

The Akari™ series of low profile bulkhead systems are designed to sit within your ceiling space and distribute air via discreet grilles. These compact units require no ducting and are perfect for renovated spaces and applications such as apartments where space is at a premium.

HIGH POWER OPERATION

Provides 15mins of boosted power allowing you to quickly heat or cool your home before returning to normal operation.

SUPER QUIET OPERATION

The Akari series offers some of the quietest operation levels on the market achieving 24 dB(A) on low fan mode.

SILENT OPERATION

Set periods of time where the unit will operate with even further reduced noise levels.

SELF CLEAN OPERATION

Dries the indoor unit internal components, preventing the growth of mould.

Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner – Brochure



Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner
$1,943.00

Mitsubishi Heavy Industries AKARI SRR50ZS-W-Set 5.0kW Bulkhead Air Conditioner
Insulated Pair Copper 6.35 x 12.7mm -1-4 x 1-2- 20 Meters length
$379.00

Insulated Pair Copper 6.35 x 12.7mm (1/4 x 1/2) 20 Meters length – Shipping Included
INSULATED PAIRED COPPER PIPE 6.35mm x 12.7mm -1-4 x 1-2- 5 Metre length
$149.00

INSULATED PAIRED COPPER PIPE 6.35mm x 12.7mm (1/4 x 1/2) 5 Meters length – Shipping Included
$2,471.00 Bundle Price for Selected items

Description

5.0 kW Cooling
5.4 kW Heating

Super Quiet Operation | Compact design
