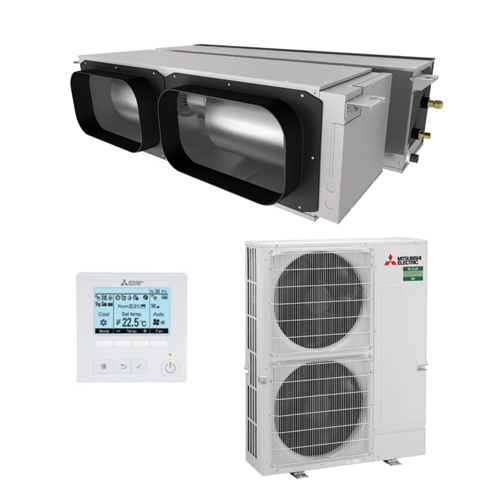

MITSUBISHI ELECTRIC PEA-M100GAA.TH / PUZ-ZM100VKA2-A.TH 10.0kW High Static Ducted Air Conditioner 1 Phase
10.0 kW Cooling | 11.2 kW Heating
MITSUBISHI ELECTRIC PEA-M100GAA.TH / PUZ-ZM100VKA2-A.TH 10.0kW High Static Ducted Air Conditioner 1 Phase
Includes Indoor PEA-M100GAA.TH | Outdoor PUZ-ZM100VKA2-A.TH
Quiet operation | High external static pressure up to 150 Pa | R32 Power Inverter Outdoor – ZM Series
Optional PAR-41MAAM Standard Wired Controller | PAC-ZC40L-E 24V, 4 Zone Controller | PAC-ZC40H-E 240V, 4 Zone Controller | PAC-ZC80L-E 24V 8 Zone Controller | PAC-ZC80H-E 240V 8 Zone Controller
5 Years Manufacturer’s Warranty
Price range: $3,875.00 through $4,440.00
| Indoor Unit | PEA-M100GAA | |||
| Outdoor Unit | PUZ-ZM100VKA2-A | |||
| Refrigerant | R32 | |||
|
Power Supply (V, Phase, Hz)
|
Source | Outdoor power supply | ||
| Outdoor | V: 230 V, Single-phase, 50 Hz | |||
|
Cooling
|
Capacity [Min-Rated*4-Max] |
kW | 4.90 – 10.00 – 11.40 |
|
| Total Input [Rated]*4 | kW | 2.39 | ||
| EER/AEER*1 | 4.18/4.01 | |||
| Running Current [Rated]*4 | A | 11.3 | ||
|
Sound Pressure Level*2
|
In (Lo – Hi) | dBA | 39 – 42 | |
| Out (PWL) | dBA | 49 (69) | ||
| Air Volume (In) Lo – Hi | L/s | 560 – 700 | ||
|
Heating
|
Capacity [Min-Rated*5-Max] |
kW | 4.50 – 11.20 – 14.00 |
|
| Total Input [Rated]*5 | kW | 2.51 | ||
| COP/ACOP*1 | 4.46/4.28 | |||
| Running Current [Rated]*5 | A | 11.5 | ||
|
Sound Pressure Level*2
|
In (Lo – Hi) | dBA | 39 – 42 | |
| Out (PWL) | dBA | 51 (69) | ||
| Air Volume In (Lo – Hi) | L/s | 560 – 700 | ||
| Max. Running Current | A | 29.78 | ||
|
Indoor Unit
|
Input [Rated] | kW | 0.21 | |
| Dimensions [HxWxD] | mm | 400 x 1400 x 634 |
||
| Weight | kg | 63 | ||
| Static Pressure | Pa | 50/100/150 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 1338 x 1050 x 330 (+40) |
|
| Weight | kg | 113 | ||
| Breaker Size | A | 32 | ||
|
Ext. Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø15.88 | |
| Max. Length/Height | m | 75/30 | ||
|
Guaranteed
Operating Range [Outdoor] |
Cooling*3 | °C | -15 ~ 52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 921 x 250 | ||
| Return Air Duct | mm | 1102 x 330 | ||
| Pre-Charge Refrigerant | kg | 4.0 (30m) | ||
| Additional Refrigerant | g/m | 40 | ||
- Capacity Range: 10.0 kW – 14.0 kW
- High external static pressure up to 150 Pa
- Flexibility in design
- Quiet operation
- Year round comfort
- Optional Wi-Fi Control*
One of the reasons why people love ducted air conditioning is because of its discrete yet highly efficient design. The Mitsubishi Electric range of PEA-M-GAA ducted air conditioners offers this and more, with advanced features and versatile customisation options. Choose the layout that best suits your home, and select various airflow options to ensure the best match for each area.
High external static pressure
External Static Pressure: 50/100/150 Pa
Flexible ducting design
With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
Longer maximum piping length
Refrigerant can be piped up to 75 metres to the concealed ceiling unit, therefore creating a wide range of layout possibilities for unit installation.
Optional PAR-41MAA Wall mounted controller
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.
Optional zone controller
Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Description
10.0 kW Cooling
11.2 kW Heating
Quiet operation | Power Inverter Outdoor – ZM Series
