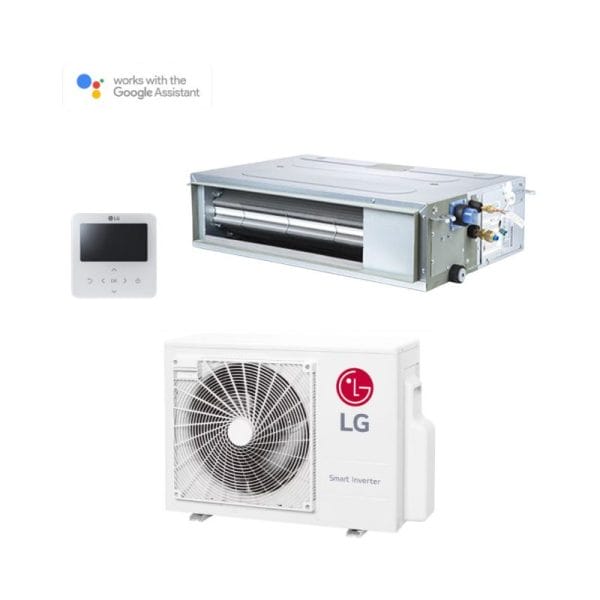

LG UBS50SET 5.0kW Single Bulkhead Air Conditioner System
Air Conditioning Free Pickup Locations
LG UBS50SET 5.0kW Single Bulkhead Air Conditioner System

LG UBS50SET 5.0kW Single Bulkhead Air Conditioner System

SKU: UBS50SET / UBN50L6 / UU50WR2 / PREMTB101

5.0kW Cooling | 5.8kW Heating
LG UBS50SET 5.0kW Single Bulkhead Air Conditioner System
Indoor: UBN50L6 | Outdoor: UU50WR2 | System: UBS50SET
Wired Controller Included PREMTB101

5 Years Manufacturer’s Warranty


Price range: $1,649.00 through $1,805.00

Or own it from $63.42 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
Model Unit UBN50L6
Rated Capacity Cooling kW 5.00
Heating kW 5.80
Capacity Range Cooling Min ~ Max kW 2.00~5.80
Heating Min ~ Max kW 2.30~6.70
Rated Power Input Cooling kW –
Heating kW –
AEER / ACOP Cooling / Heating – 3.658 / 3.264
EER / COP Cooling / Heating –  /
Rated Current Cooling / Heating A 7.40 / 8.30
Max. Current (Full Load Amps) Indoor Unit A 16.0
Set A –
Air Flow Rate L/s 250
External Static Pressure Pa 0~49
Indoor Sound Level at 1.5m H / M / L Pressure dB(A) – / 34.0 / 31.0 / 29.0
Dimensions W x H x D mm 1,100 x 190 x 460
Weight kg 20.9
Outdoor Sound Level at 1.5m Cooling / Heating Pressure dB(A) 47.0 / 52.0
Sound Power Level dB(A) –
Dimensions W x H x D mm 870 x 650 x 330
Weight kg 45.0
Power Supply V / Phase / Hz 1 , 50 Hz, 220-240 V
Circuir Breaker A 20
Compressor Type – Twin Rotary
Refrigerant Type – R32
Precharged Length m 7.5
Pipe Sizes Liquid mm/inch Φ6.35 (1/4)
Gas mm/inch Φ12.7 (1/2)
Drain OD / ID mm Ø 32(1-1/4) / 26(1-1/32)
Max. Pipe Length m 30
Max. Height Difference ODU ~ IDU m 30
Supply Air Opening H x W, Flange mm 148 x 1062
Return Air Opening H x W, Flange mm 190 x 1,007
Continuous Operating Range Cooling °C DB – 15 ~ 48
Heating °C WB – 18 ~ 18
Demand Response – –
  • Wifi Smart control Capability (check specifications)
  • Quiet Twin Rotary Compressor
  • Auto ESP setting
  • Corrosion Resistance Black Fin Coated
  • Two Thermistor Control

LG UBS50SET 5.0kW Single Bulkhead Air Conditioner System – Brochure

Description

5.0 kW Cooling
5.8 kW Heating
