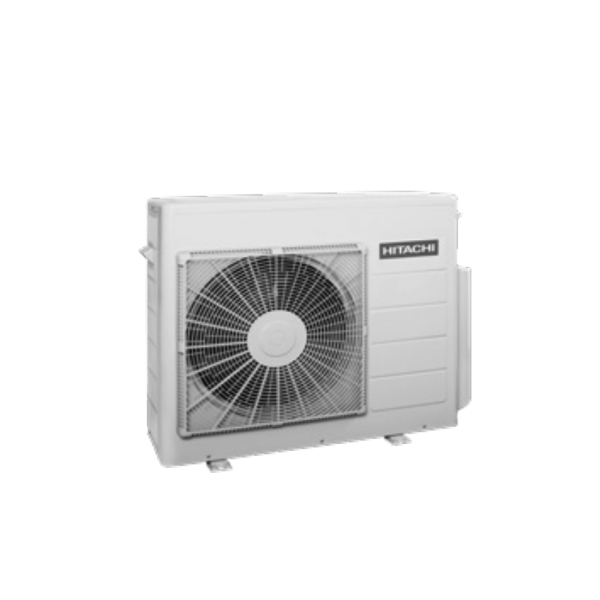

HITACHI RAM-70NP4E 7.0kW Multi Split Outdoor Only

SKU: RAM-70NP4E

$2,965.00

Or own it from $114.04 weekly for 6 months*

Or pay in slices, no interest ever

Model : Outdoor Unit	RAM-70NP4E
General Specifications
Cooling Capacity (kW)	7.0
Cooling Capacity Range (kW)	2.4 – 8.8
Heating Capacity (kW)	8.5
Heating Capacity Range (kW)	2.6 – 9.5
EER / AEER	3.70 / 3.68
COP / ACOP	4.20 / 4.19
No. Of Indoor Units (Min / Max)	2 / 4
Dimensions (H x W x D mm)	800 x 850 x 298
Weight kg	58
Sound Pressure level dB(a)	50 / 53
Cool / Heat
Sound Power dB(a)	63
Working range – Cooling (°C)	-10° / 46°
Working range – Heating (°C)	-15° / 24°

Model : Outdoor Unit	RAM-70NP4E
Installer Specifications
Piping Diameter Liquid Ømm	6.35 x 4
Piping Diameter Gas Ømm	9.52 x 3 + 12.7 x 1
Refrigerant	R 32
Max Total Pipe Length (m)	60
Max Pipe Length to Individual Indoor unit (m)	25
Number of Circuits	1
Max Pre Charged Length (m)	30
Max Pipe Lift (m)	20
Min. pipe Length per indoor (m)	3
Compressor Type	2-cylinder rotary
Power Supply	220-240V/1ph/ 50/60Hz
Run Current – Cooling / Heating (220-240V)	8.68-7.95 / 9.27-8.50

CONNECTIVITY – SPX-RAMHLK X1
A single adapter on each system allow connectivity to Hitachi’s H-link network. Suitable for commercial applications where multiple selected Hitachi products are required to be centrally controlled.

HIBERNATE MODE
Hibernate control allows improvement in energy savings by reducing standby power by 70%. This is achieved through the shutdown of non-active components.

COMPACT
Hitachi MultiZone outdoor units are compact so they are suitable for a wide range of residential and commercial applications where space is at a premium

VECTOR CONTROL
Hitachi inverter compressors achieved improved energy savings through vector control which optimises compressor operation for high performance and lower noise levels.

EXTREME OUTDOOR TEMPERATURE OPERATION
Hitachi air conditioners can operate in outside temperatures down to as low as -15˚C and as high as 46˚C ensuring you stay comfortable when you need it.

Flexibility in design
Hitachi MultiZone systems enable you to choose from a range of indoor unit types. You can select the temperature for each area, helping you create the perfect harmonious living environment.

HITACHI RAM-70NP4E 7.0kW Multi Split Outdoor Only – Brochure
