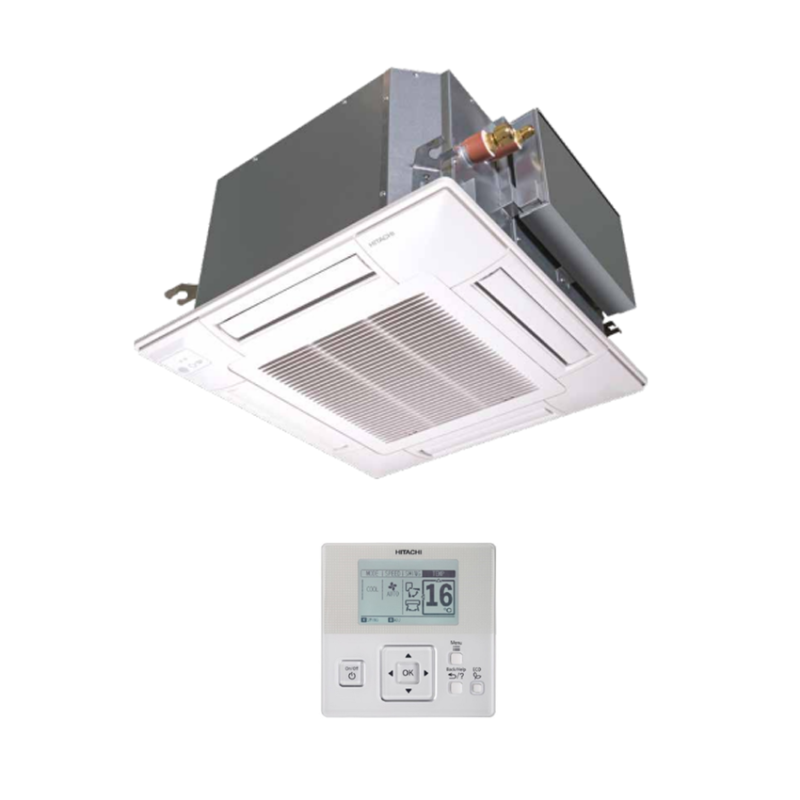

HITACHI RAI-25RPE 2.5kW 4-Way Compact Cassette Multi Split Indoor Only Air Conditioner
2.5 kW Cooling | 3.5 kW Heating
HITACHI RAI-25RPE 2.5kW 4-Way Compact Cassette Multi Split Indoor Only Air Conditioner
Wired Controller | High Efficiency | Low Noise | Condensate Drain Pump
Part of a Multi System | Unit Combinations
6 Years Manufacturer’s Warranty
| Model: Indoor Unit | RAI-25RPE |
| Nominal Cooling Capacity (kW | 2.5 |
| Nominal Heating Capacity (kW) | 3.5 |
| Airflow Cooling (l/sec) Hi / Med / Low / Super Low | 183 / 164 / 140 / 100 |
| Heating (l/sec) Hi / Med / Low / Super Low | 200 / 175 / 150 / 123 |
| Dimensions (H x W x D mm) | 285 x 570 x 570 |
| Weight | 17 |
| Adaptable Air Panel Model (Facia Panel) | P-AP56NAMS |
| Panel Size (mm) (H x W x D)mm | 30 x 620 x 620 |
| Panel Weight (kg) | 2.8 |
| Colour | White |
| Sound Pressure Level Cooling Level dB(A) Hi / Med / Low / Super Low | 38 / 35 / 31 / 27 |
| Heating Level dB(A) Hi / Med / Low / Super Low | 39 / 36 / 32 / 28 |
| Controller
Standard |
Wired Controller |
| Optional | Half Sized Wired / SPX-WKT3 |
| Pipe Connection Sizes: Liquid Ømm / Gas Ømm | 6.35 / 9.53 |
| Supplied Drain Pump pressure lift (mm | 115 |
High efficiency
Discreet and economical, our ceiling-mounted cassettes offer an effective solution for large open-plan areas or rooms with high ceilings.
Quiet airflow
These compact cassette units are designed for efficient airflow while minimising sound.
Compact size
The 600mm x 600mm ceiling units fit neatly inside a standard office tile, minimising installation time and rendering them perfect for shop and office applications.
One-touch panel
The panel can be swung open up to 90-degrees so that the washable filter can easily be removed for cleaning.
Condensate drain pump
Compact cassettes have inbuilt drain pumps to liftwater from the drain pan.
To view the Brochure
Click here
Description
2.5 kW Cooling
3.5 kW Heating
High Efficiency | Low Noise | Condensate Drain Pump
