IDU | PPIH-6.5UFA1NQ | |
ODU | PAS-6.5UFASNQ1 | |
Power supply (Indoor) | V/Ph/Hz | 220-240~,50 |
Power supply (Outdoor) | V/Ph/Hz | 220-240~,50 |
Cooling
|
Rated Capacity kW | 16 |
Capacity Range[Min~Max] kW | 6.0~18.0 | |
Heating
|
Rated Capacity kW | 18 |
Capacity Range[Min~Max] kW | 6.5~20.0 | |
AEER | Cooling | 3.21 |
ACOP | Heating | 3.85 |
TCSPF(Cooling) Residential
|
Hot | 4.46 |
Average | 4.12 | |
Cold | 4.27 | |
HSPF(Heating) Residential
|
Hot | 4.56 |
Average | 3.66 | |
Cold | 3.11 | |

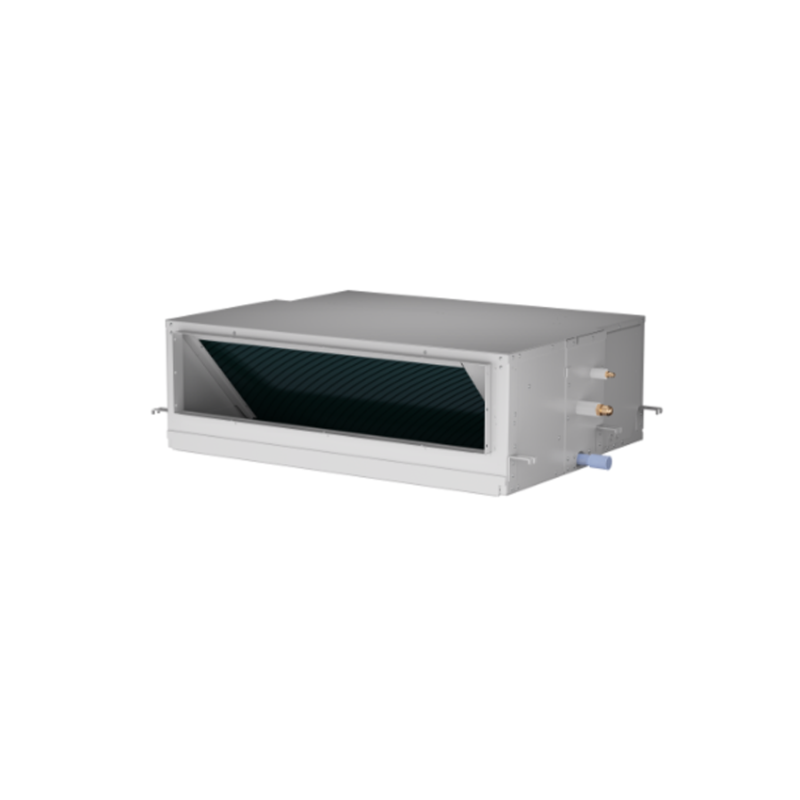

Indoor Unit
|
External Static Pressure Range Pa | 60~310 |
Air Flow Range L/s | 500~900 | |
Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A | 52/50/47/45/41/39 | |
Sound Power Level dB[A] | 65 | |
Dimension [W×H×D] mm | 1300×350×890 | |
Supply Air Spigot [W×H] mm | 1204×222 | |
Return Air Spigot [W×H] mm | 1135×308 | |
Net/Gross Weight kg | 79/88 | |

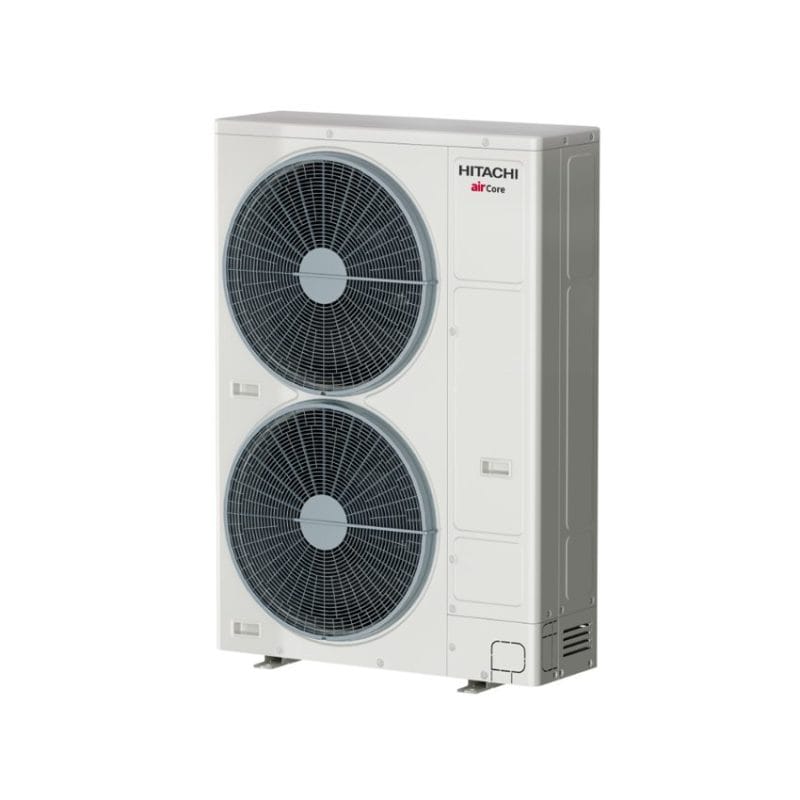

Outdoor Unit
|
Sound Pressure Level-Cooling dB[A] | 57 |
Sound Pressure Level-Heating dB[A] | 59 | |
Sound Pressure Level-Night dB[A | 54 | |
Dimension [W×H×D] mm | 950×1380×320 | |
Net/Gross Weight kg | 108.0/118.5 | |
Refrigerant type
|
Type | R32 |
Charge kg | 3.4 | |
Refrigerant pipe
|
Liquid side/Gas side mm | Φ9.52/Φ15.88 |
Max. pipe length m | 75 | |
Max. Height difference m | 30 | |
Add Refrigerant Amount g/m | 35 | |
Chargeless m | 30 | |
Guaranteed Temperature Operation Range
|
Cooling °C (db) | -5~52 |
Heating °C (wb) – | -15~15.5 |

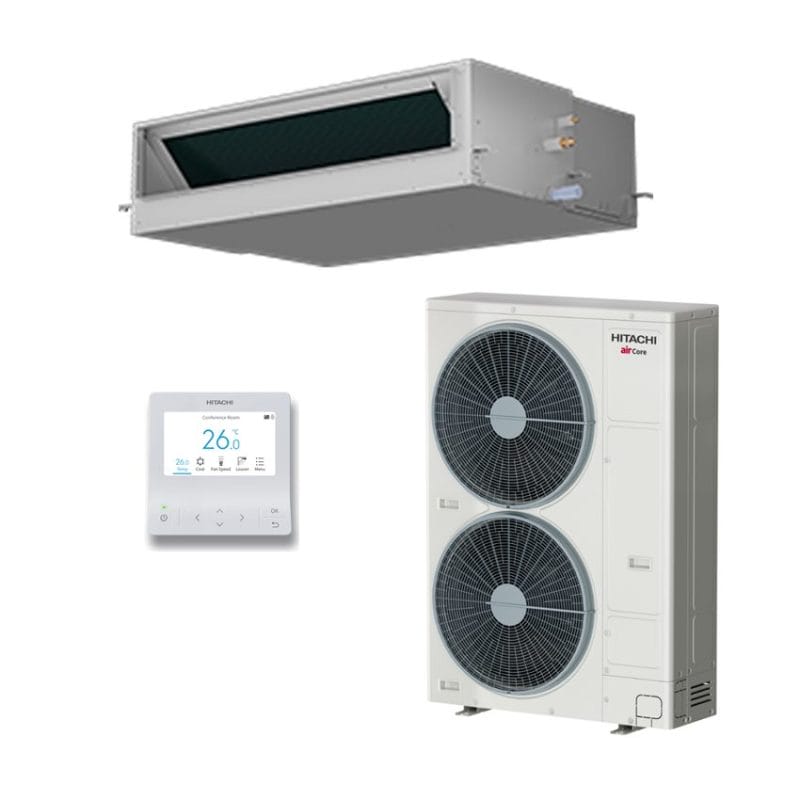

Hitachi PPIH-6.5UFA1NQ | PAS-6.5UFASNQ1 16.0kW airCore700 High Static Ducted System Air Conditioner
16.0 kW Cooling | 18.0 kW Heating | 1 Phase
Hitachi PPIH-6.5UFA1NQ | PAS-6.5UFASNQ1 16.0kW airCore700 High Static Ducted System Air Conditioner
Indoor PPIH-6.0UFA1NQ Outdoor PAS-6.0UFASNQ1

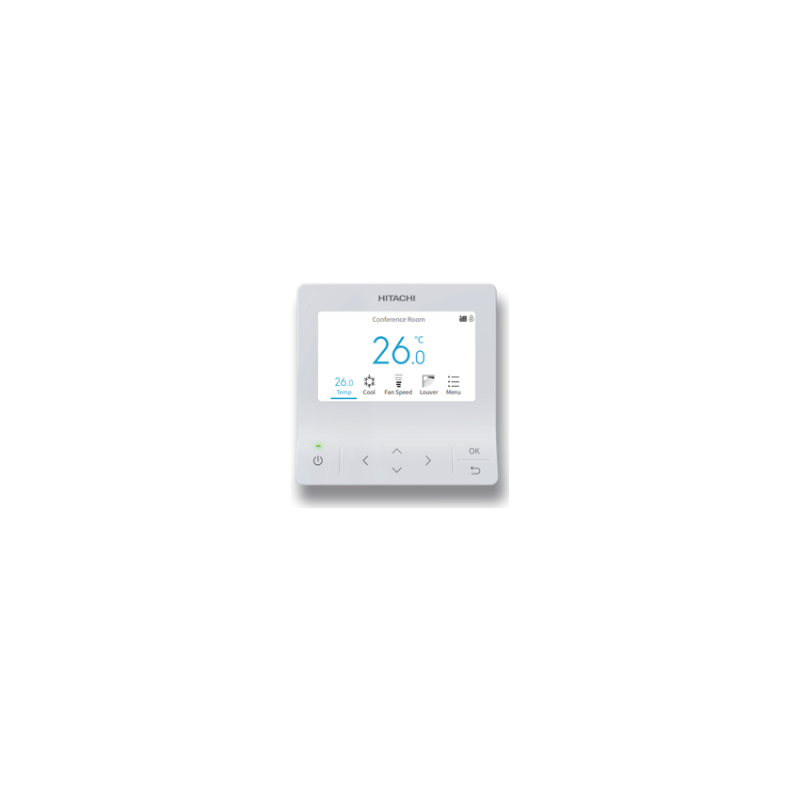

Indoor Unit Frostwash | Backlit Coloured Controller | Night Quiet Operation | Power Saving Setting
Optional Wired Controller | Optional Zone Controller
6 Years Manufacturer’s Warranty
airCore700 Light Commercial Inverter AC System (Single)
The airCore700 stands as Hitachi’s flagship light commercial split system range. It delivers outstanding cooling and heating performance, showcasing a wide capacity range and efficient operation in diverse ambient temperatures, while guaranteeing uncompromised comfort. Utilising R32 refrigerant, airCore700 units have a lower global warming potential compared to R410A refrigerant products.
Hitachi airCore 700 Ducted Air Conditioners – FrostWash™ Self-Cleaning Technology
The Hitachi airCore 700 ducted air conditioner range is designed for long-lasting performance and cleaner, healthier airflow. Every indoor ducted unit comes equipped with FrostWash™ self-cleaning technology, which freezes and removes dust and dirt from the heat exchanger before safely draining it away. This innovative feature maintains strong airflow, extends system life, and helps keep your home’s air fresher. FrostWash™ can be activated manually or set to operate automatically at scheduled intervals, providing peace of mind and minimal maintenance for your ducted system.
Energy-Efficient Climate Control with Smart Features
Engineered for the Australian climate, the airCore 700 ducted system uses advanced R32 DC inverter compressors with exclusive Hitachi multi-pulse control to deliver energy-efficient comfort in every season. With an improved heat exchanger fin design and optimised refrigerant path, this system reduces startup times, enhances performance in low ambient conditions, and ensures precise temperature control. The built-in power consumption display allows you to track energy use in daily, weekly, or yearly formats, while the 7-day operation schedule lets you program up to five settings per day for ultimate convenience. Quiet, efficient, and reliable, the Hitachi airCore 700 is the smart choice for homeowners seeking premium ducted air conditioning solutions.
Description
16.0 kW Cooling
18.0 kW Heating
Night Quiet Operation | Power Saving Setting
