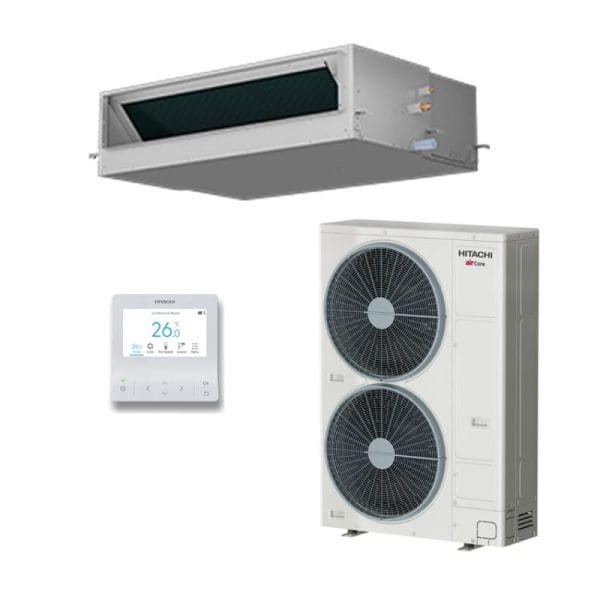

Hitachi PPIH-6.5UFA1NQ | PAS-6.5UFASMQ1 16.0kW airCore700 High Static Ducted System Air Conditioner

SKU: PPIH-6.5UFA1NQ / PAS-6.5UFASMQ1

16.0 kW Cooling | 18.0 kW Heating | 3 Phase
Hitachi PPIH-6.5UFA1NQ | PAS-6.5UFASMQ1 16.0kW airCore700 High Static Ducted System Air Conditioner

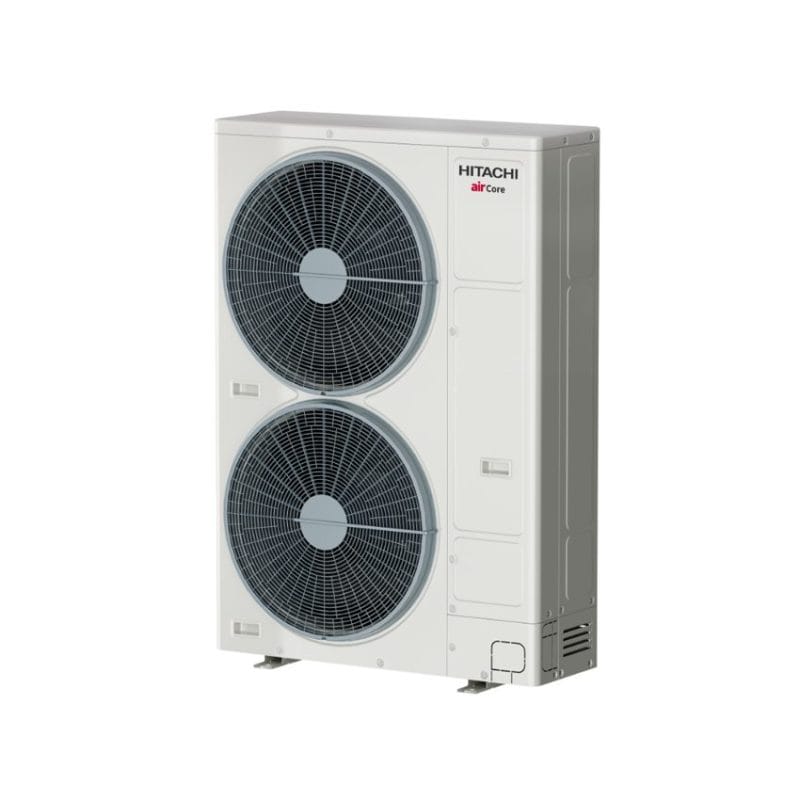

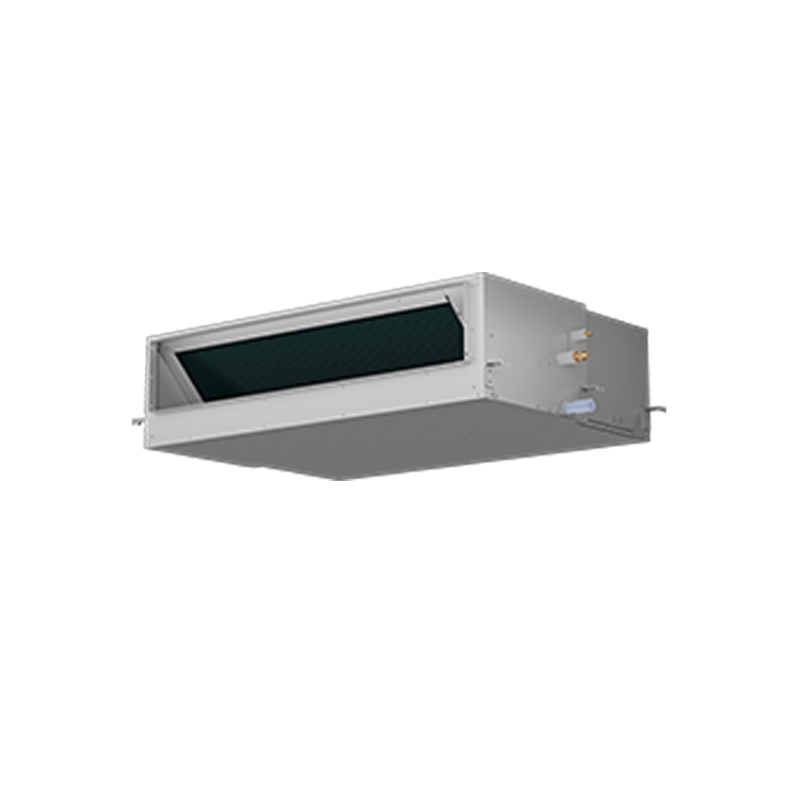

Indoor PPIH-6.5UFA1NQ Outdoor PAS-6.5UFASMQ1
Indoor Unit Frostwash | Night Quiet Operation | Power Saving Setting

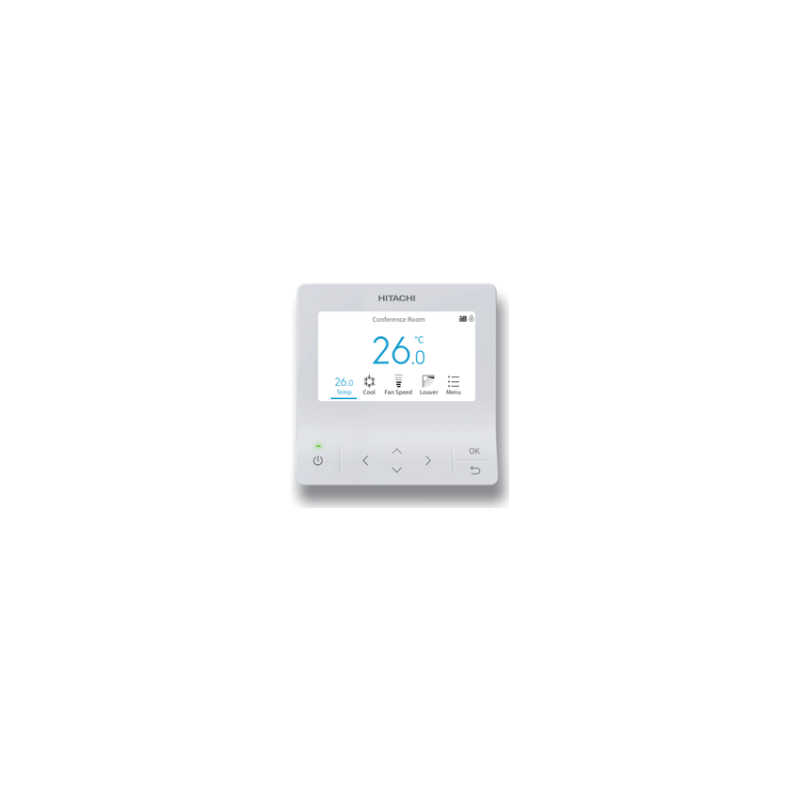

Optional Wired Controller | Optional Zone Controller
6 Years Manufacturer’s Warranty

Price range: $5,080.00 through $5,535.00

Select Controller

Clear

Insulated Copper Pair Coil

Quantity

Or own it from $195.38 weekly for 6 months*

Or pay in slices, no interest ever

IDU		PPIH-6.5UFA1NQ
ODU		PAS-6.5UFASMQ1
Power supply (Indoor)	V/Ph/Hz	220-240~,50
Power supply (Outdoor)	V/Ph/Hz	380-415,3N~,50
Cooling	Rated Capacity kW	16
Cooling	Capacity Range[Min~Max] kW	6.0~18.0
Heating	Rated Capacity kW	18
Heating	Capacity Range[Min~Max] kW	6.5~20.0
AEER	Cooling	3.20
ACOP	Heating	3.84
TCSPF(Cooling) Residential	Hot	4.79
	Average	4.33
	Cold	4.51
HSPF(Heating) Residential	Hot	4.67
	Average	3.72
	Cold	3.15
Indoor Unit	External Static Pressure Range Pa	60~310
	Air Flow Range L/s	500~900
	Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A	52/50/47/45/41/39
	Sound Power Level dB[A]	65
	Dimension [W×H×D] mm	1300×350×890
	Supply Air Spigot [W×H] mm	1204×222
	Return Air Spigot [W×H] mm	1135×308
	Net/Gross Weight kg	79/88
Outdoor Unit	Sound Pressure Level-Cooling dB[A]	57
	Sound Pressure Level-Heating dB[A]	59
	Sound Pressure Level-Night dB[A	54
	Dimension [W×H×D] mm	950×1380×320
	Net/Gross Weight kg	108.0/118.5
Refrigerant type	Type	R32
Refrigerant type	Charge kg	3.4
Refrigerant pipe	Liquid side/Gas side mm	Φ9.52/Φ15.88
	Max. pipe length m	75
	Max. Height difference m	30
	Add Refrigerant Amount g/m	35
	Chargeless m	30
Guaranteed Temperature Operation Range	Cooling °C (db)	-5~52
Guaranteed Temperature Operation Range	Heating °C (wb) –	-15~15.5

airCore700 Light Commercial Inverter AC System (Single)
The airCore700 stands as Hitachi’s flagship light commercial split system range. It delivers outstanding cooling and heating performance, showcasing a wide capacity range and eﬀicient operation in diverse ambient temperatures, while guaranteeing uncompromised comfort. Utilising R32 refrigerant, airCore700 units have a lower global warming potential compared to R410A refrigerant products.

Hitachi PPIH-6.0UFA1NQ 14.0kW R32 airCore 700 High ESP Ducted Air Conditioner System 3 Phase – Brochure

Description

16.0 kW Cooling
18.0 kW Heating

Night Quiet Operation | Power Saving Setting

Hitachi GC-AZKP Premium zone control interface box

Controller not included

$540.00

Add to cart

Hitachi GA-WFG airCloud Go WiFi adaptor kit for airCore 700

$330.00

Add to cart

INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included

$399.00

Add to cart
