Haier YR-E17A Wired RC, 7 Days Timelock

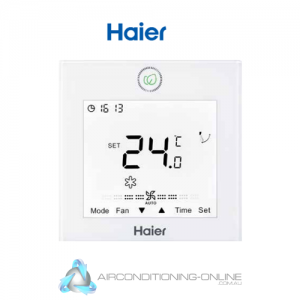

YR-E17A pictured. Screen icons subject to
change as the controller will self adapt to the
indoor unit connected.
Summary of features
• Touch Screen
• Backlit display for easier viewing.
Summary of buttons
1. On/Off : turn system on and off .
2. Mode: Change mode of operation from
Intelligent – Cooling – Heating – Fan – Dry
3. Fan: Alter airfl ow High-Medium-Low
4. Temperature up/down. Adjust the
set-point temperature is 0.5 degree
increments
5. Timer: Select Timer ON, Timer OFF,
Timer ON/OFF.
6. Set: To enter special functions like swing,
four (4) way louvre adjustment (cassette
model).
