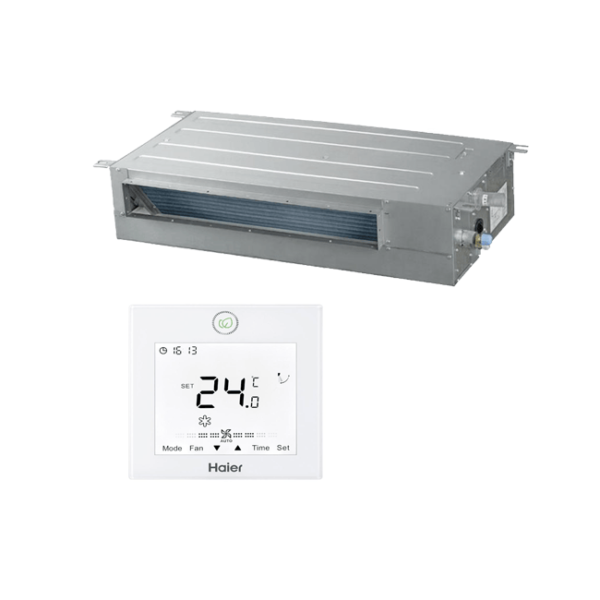

Haier AD35S2PS1FA 3.5kW Multi Head System Indoor Only

SKU: AD35S2PS1FA

$505.00

Model/Indoor unit			AD35S2PS1FA
Capacity electrical	Cooling	kW nom	3.5
	Heating	kW nom	4.0
	Sensible heat ratio (cooling)	W	0.71
	Dehumidifying capacity (cooling)	10-³x m³/h	1
	Power supply	Ph/V/Hz	1/220 – 240/50
Indoor unit	Air flow (H/M/L/Q)	m³/h	600/480/420/350
	External static pressure	pa	0/10/20/40
	External dimensions (L/W/H)	mm	850x420x185
	Shipping dimensions (L/W/H)	mm	1045x530x260
	Drainage Pipe (material. I.D/O.D)	mm	PVC 27/31
	Control type (Remote/Wired)		Remote YR-HQS01(O) Wired YR-E17A(S)
	W-FI		(O)
	Sound power level (H/M/L)	dB(A)	53 (51)
	Sound pressure cool (H/M/L)	dB(A)	33/28/25
	Net/Shipping weight	kg	16/21
Panel	Model		P1B-890IA/D
	External dimensions (WxDxH)	mm	890/190/100 (outlet panel) /
			890/290.5/32.4 (inlet panel)
	Shipping dimensions (WxDxH)	mm	938x335x220
	Net/Shipping weight	kg	4/5
Piping	Refrigerant type		R32
	Refrigerant liquid pipe	mm	Ø6.35 (¼)
	Refrigerant gas pipe	mm	Ø9.52
	Connecting Method		Flared

Sleek and Compact Design
This indoor unit is crafted to blend seamlessly with your space, featuring a slim profile that makes it perfect for tight ceiling spaces, such as those between floors in multi-level buildings.
Remote Control Convenience
Add the optional Wi-Fi accessory, and you can control your air conditioning system directly from your smartphone using the SmartHQ™ app or through voice commands via a smart home device.
Optimal Comfort in Every Climate
Adjust the indoor humidity with the Dry function, which removes excess moisture for a cooler and healthier environment—all while consuming less energy than the standard Cool mode.
Flexible Return Air Configuration
Designed for adaptability, this unit allows for easy conversion of the rear return air setup to a bottom return air configuration, ensuring it fits any installation need.
Includes a 5-Year Warranty

Description

3.5 kW Cooling
4.0 kW Heating

Super Match Slim Duct
