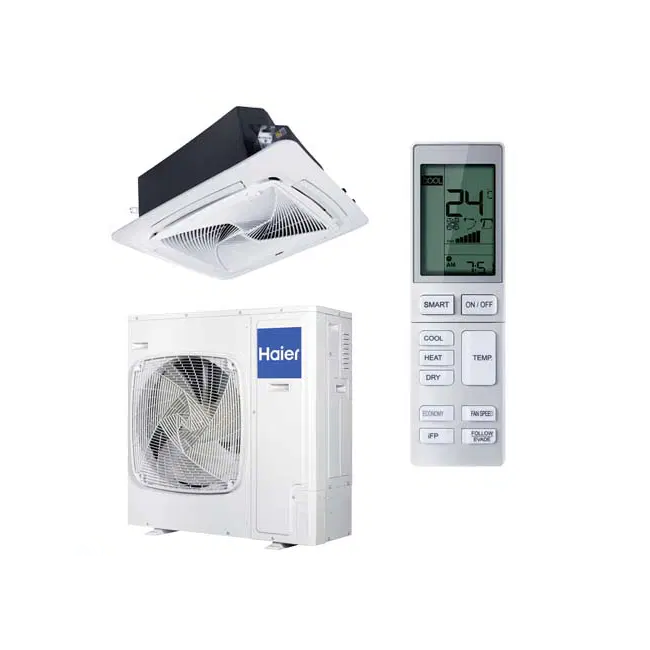

Haier ABH105KN5FA-SET 10kW Round Way Cassette Single Phase

SKU: ABH105KN5FA‐SET (ABH105K5ERG / 1U100S2SN5FA / PB-950KB)

7.1kW
10kW
12.5W
14kW

$3,080.00

Or own it from $118.46 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Haier Air Conditioning> Haier Smartpower Cassette Split Systems

			Set	ABH105KN5FA-SET
Model			Indoor	ABH105K5ERG
			Outdoor	1U100S2SN5FA
Rated Performance data	Capacity	Cooling	kW nor (min ~ max)	10.0 (2.5 ~ 11.0)
		Heating	kW nor (min ~ max)	11.5 (2.5 ~ 12.0)
	Rated power input	Cooling	kW nom (min ~ max)	3.16 (0.50 ~ 4.70)
		Heating	kW nom (min ~ max)	3.25 (0.50 ~ 4.70)
	EER		w/w	3.16
	COP		w/w	3.54
	Total cooling seasonal performance factor	Commercial	Hot/Mixed/Cold	4.598/4.668/4.979
		Residential	Hot/Mixed/Cold	4.284/3.953/4.083
	Heating seasonal performance factor	Commercial	Hot/Mixed/Cold	4.447/4.16/3.784
		Residential	Hot/Mixed/Cold	4.436/3.956/3.528
Indoor Unit				ABH105K5ERG
Performance	Air flow (H/M/L)		l/s	490/405/335/295
	Sound power level		dB(A)	62
	Sound pressure level (H/M/L)		dB(A)	45/42/38/34
Installation	External dimensions (WXDXH)		mm	840x840x288
	Shipping dimensions (WXDXH)		mm	990x990x380
	Net/shipping weight		kg	32/38
	Drain		mm	25
	Wireless controller		Supplied	YR-HQS01
	Wired controller		Optional	YR-E17A/YR-E16B
Panel	Panel model			PB-950KB
	External dimensions (WxDxH)		mm	950x950x50
	Shipping dimensions (WxDxH)		mm	1000x1000x110
	Net/shipping weight		kg	6.5/9
Outdoor Unit				1U100S2SN5FA
Electrical parameters	Power supply		Ph/V/Hz	1/220 ~ 240/50
	Rated current	Cooling	Amps	13.6
		Heating	Amps	13.6
	Maximum current		Amps	20
Performance	Air flow (H)		m3/h	4000
	Sound power level		dB (A)	68
	Sound pressure level		dB (A)	52
Installation	External dimensions (WxDxH)		mm	950x370x965
	Shipping dimensions (WxDxH)		mm	1050x450x1095
	Net/shipping weight		kg	83/94
	Compressor type			twin rotary
	Refrigerant type			R32
	Refrigerant liquid pipe		mm	9.52 (⅜)
	Refrigerant gas pipe		mm	15.88 (⅝)
	Max pipe length		m	50
	Max drop between I.U.&O.U		m	30
	Refrigerant pre charge		kg	2.3
	Chargeless length		m	20
	Refrigerant charge quantity for extra length		g/m	45
Working temp.	Cooling (min to max)		°C	-15 to 50
	Heating (min to max)		°C	-20 to 24
DRED	Peak smart (DRED) ready			Yes
