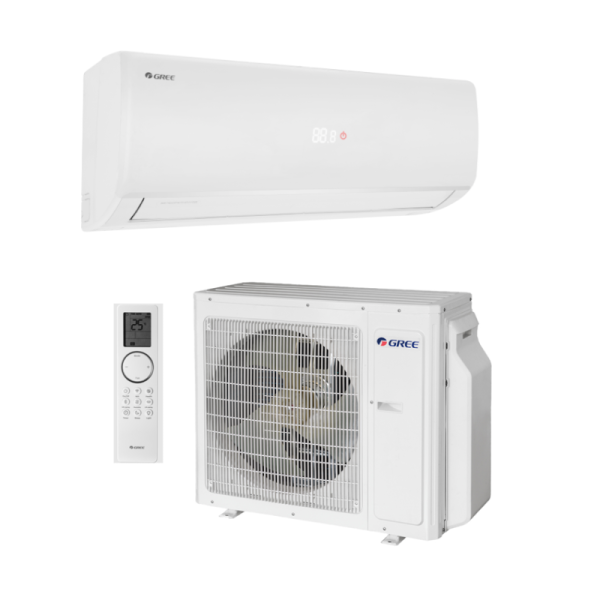

Gree Hyper GWH32QFXH-K6DNB2A 9.4kW Inverter Split System Air Conditioner

SKU: GWH32QFXH-K6DNB2A/I GWH32QFXH-K6DNB2A/O

9.4kW Cooling | 10.3kW Heating
Gree Hyper GWH32QFXH-K6DNB2A 9.4kW Reverse Cycle Split System Air Conditioner

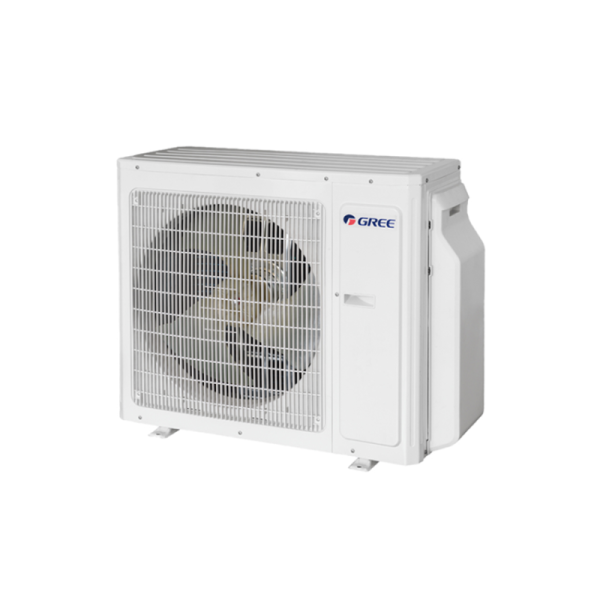

Indoor GWH32QFXH-K6DNB2A/I Outdoor GWH32QFXH-K6DNB2A/O
Wireless Remote | Healthy Filters | Built-in WIFI | Dehumidity Control
6 Years Manufacturer’s Warranty



$2,160.00

> > > > > > >
Model GWH32QFXH-K6DNB2A/I
GWH32QFXH-K6DNB2A/O
Cooling Capacity (range) kW 9.4 (2.10~12.20)
Heating Capacity (range) kW 10.3 (2.60~12.00)
Cooling power input (range) kW 2.47 (0.68~4.20)
Heating power input (range) kW 3.03 (0.63~4.10)
Cooling AEER W/W 3.8
Heating ACOP W/W 3.4
Heating Capacity H2 Ext Cap kW 7.97
Power input H2 Ext Cap kW 3.35
SERL Star Label Cool 4.5/4.0/4.0
Hot Ave Cold Heat 3.5/2.5/2.0
Dehumidifying Volume L/Hr 3
Air Flow Volumes (Sh/SL) L/sec 402/180
Sound Pressure (min/max) Ind dB(A) 34/57
Sound Power (min/max) Ind dB(A) 47/70
Sound Pressure / Power Out dB(A) 62/72
Electrical
Power Supply (Outdoor) V/Hz/Ph 220-240 / 50 / 1
Recommended Circuit Breaker A 20
Nominal Current (cool/heat) A 11.5/13.5
Control Wiring
3 Core plus Earth (4 Cores)
Dimensions and Weights
Dimensions (WxHxD) mm 1350x326x253
Net Weight kg 20
Dimensions (WxHxD) mm 1003×790×427
Net Weight kg 59.5
Installation
Operating Temp Range Cool °C -10~50
Operating Temp Range Heat °C -15~24
Refrigerant Type R32
Refrigerant Charge kg 1.9
Max Pipe Length (pre-charged) M 25(10)
Max Height M 10
Additional Refrigerant g/m 40
Pipe Connection mm 1/4” ~ 5/8”



“iChoose” LED Display
The Gree Hyper+ AI range features the new “I-Choose” LED displays. The display will show power and set point down to 0.1°C. Using the remote you can see the indoor set point temperature and when it’s time to sleep, the display can be switched off, leaving a pristine flat panel.

High Efficiency and Energy Savings
With the new Seasonal Energy Rating Label (SERL) showing 6.5 stars*, Gree Hyper+ AI air conditioners are some of the most energy efficient units on the market. The Gree Hyper+ AI range not only looks good, it also costs you less to run. With 8 models there is the perfect match for your environment.

*GWH09ABAXD-K6DNC8A

Smart Health
The Gree Hyper+ AI range comes standard with High Density Filters. These filters have a higher than normal density to filter dust and pollen from the air. Mini Photocatalytic filters are also standard. These filters oxidise and degrade organic contaminants eliminating bacteria, viruses and unpleasant smells. The Gree Hyper+ AI range has a drying function. When selected this automatically runs the fan for a set period of time after switching the unit off to help dry the coil and to prevent the build-up of mildew.

Intelligent Defrosting
Intelligent defrosting is designed to minimise the defrost time and reduce the number of defrost cycles; therefore, reducing energy waste.
G-AI Technology*
Gree Electrics independently developed AI technology brings un-paralleled comfort with increased energy savings. By adopting the G-AI algorithm and chipset, the Hyper+ AI air conditioners can adapt to complex and varied user environments. They can adjust the temperature flexibility to achieve a more constant temperature and a more comfortable environment.

The G-AI algorithm combines Deep Q-Learning and Expert System Theory to dynamically learn the different environmental parameters, actively taking the best control strategy to provide maximum comfort whilst using less energy. The G-AI is a self-learning system, so the more you use the system, the better it becomes at selecting the most suitable strategy to maintain a comfortable environment while achieving greater energy savings.
All Gree Hyper+ AI air conditioners feature “I-Feel” functionality in your hand held remote control. By pressing the “I-Feel” button on the remote control the temperature to control the unit is recorded from a sensor in the remote control rather than at the indoor unit on the wall. “I-Feel” gives intelligent temperature control where it is needed and provides a more comfortable environment. Smart comfort features like the “Turbo” function are designed to run the unit at super high speed to heat or cool the room quickly.

Dehumidity Control
Typically air conditioners dry out a room when cooling. Excessive dehumidification may occur if it is not controlled, which not only wastes power but also affects comfort.
To control humidity the Hyper+ AI series will select an appropriate operational frequency according to the heat load. When the desired condition is reached, the unit will reduce the frequency and improve the evaporative temperature in order to reduce dehumidification and thus keep the best humidity condition for you.

Reliably Smart
Hyper+ AI air conditioners incorporate Gree’s G10 inverter along with the new G-AI, high speed, DSP computer chip for precise inverter control and system learning. This ensures greater control which leads to greater efficiency.

The inverter PCB in the outdoor unit can work up to 85°C for greater reliability and both the indoor and outdoor PCB’s a coated to protect them from the ingress of moisture, dust and dirt.
The new Hyper+ AI range of outdoor units feature Gold Fin coating on the outdoor coil. This improves efficiency by accelerating the defrost process and offers greater resistant to corrosive elements. Gold fin coils perform 20x better under salt spray testing than Blue Fin Coils.

All Gree hi-walls come with a“Six Year, Parts and Labour Warranty”. And there are no strings attached, if your installer is industry qualified that’s ok by Gree. All motors and fan motors are DC for greater energy efficiency and better performance.

Gree Hyper GWH32QFXH-K6DNB2A 9.4kW Inverter Split System Air Conditioner – Brochure

Description

9.40 kW Cooling
10.3 kW Heating

Healthy Filters | Built-in WIFI | Dehumidity Control
