Fujitsu SET-AUTH45KRTA-3PH-YC 12.5kW Circular Flow Cassette Inverter Air Conditioner 3 Phase | R32
Fujitsu SET-AUTH45KRTA-3PH-YC 12.5kW Inverter Cassette Split Systems | R32

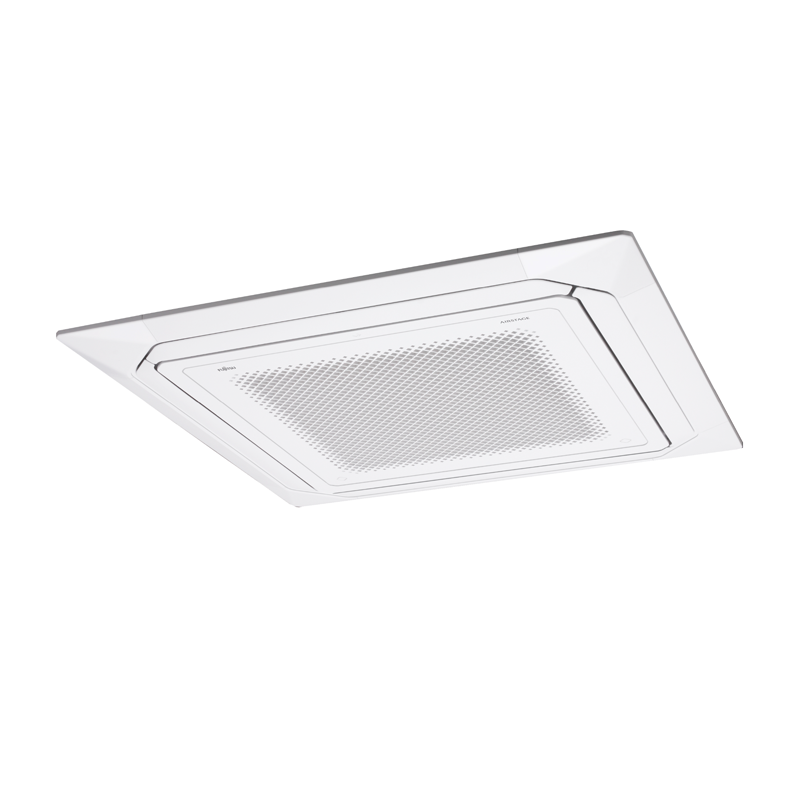

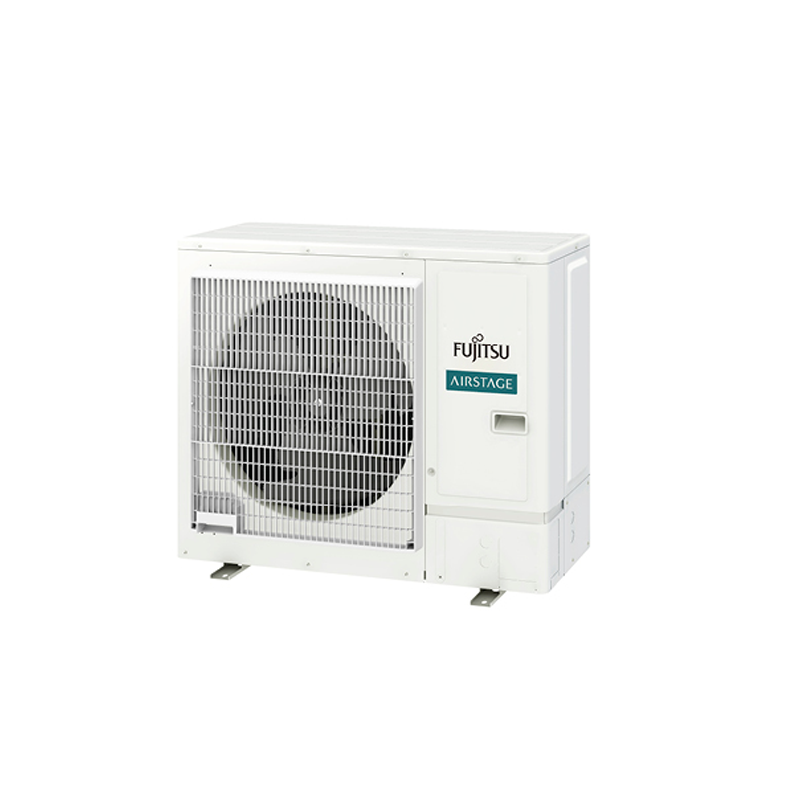

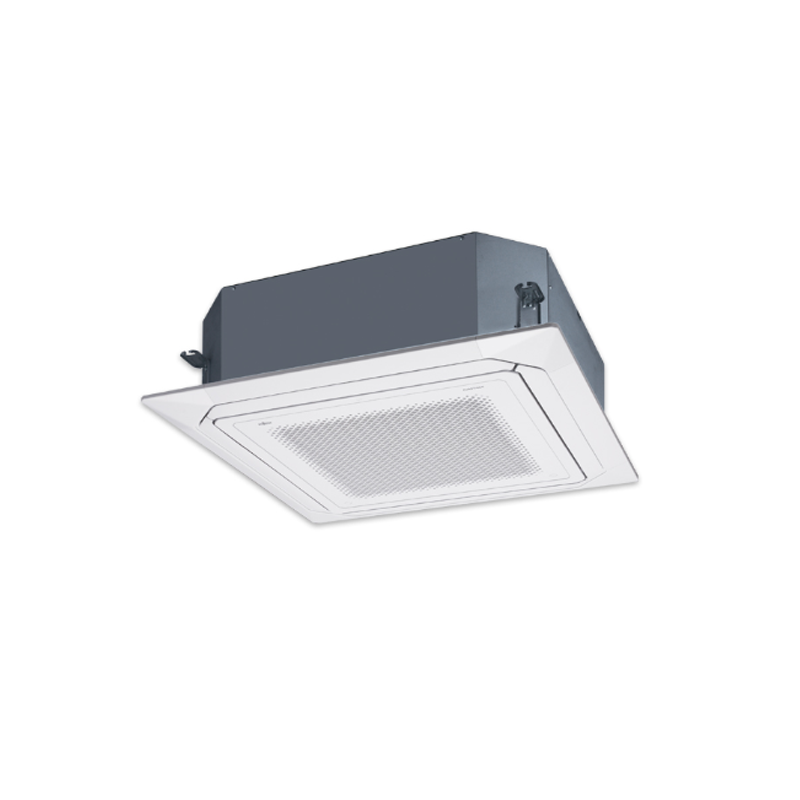

Indoor AUTH45KRTA – Outdoor AOTH45KRTA – Grille UTG-UKTB-W

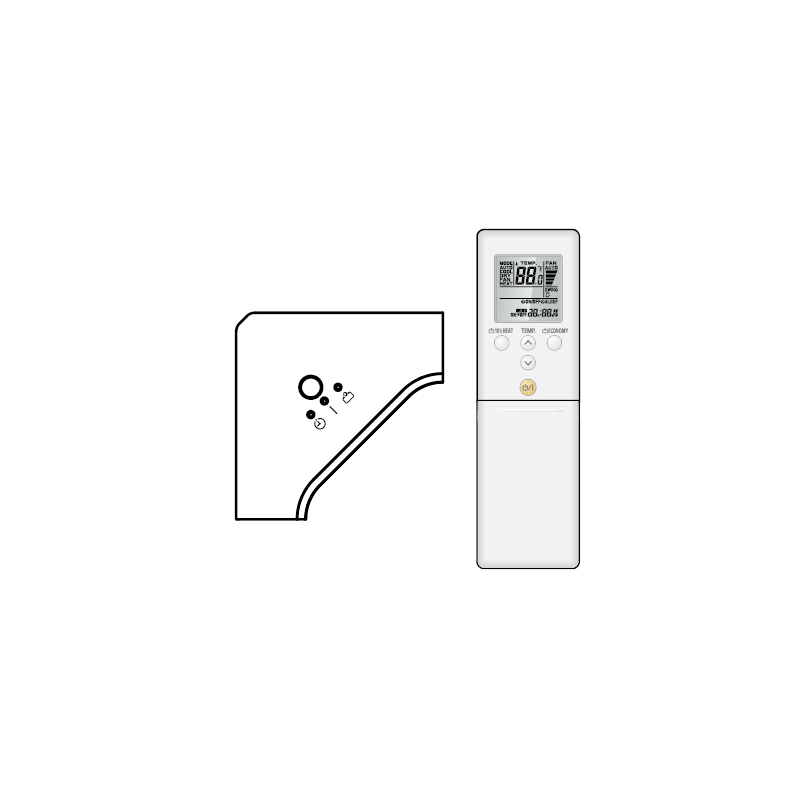

Wireless Controller: UTY-LBTYC
5 Years Manufacturer’s Warranty
| Fujitsu SET-AUTH45KRTA-3PH-YC
Indoor unit |
AUTH45KRTA |
| Outdoor unit | AOTH45KRTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 400 / 3 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 12.50 (4 – 14) |
| Heating Capacity kW (Rated (Min – Max)) | 14.00 (4.2 – 16.5) |
| Input Power Cooling kW (Rated (Min – Max)) | 3.89 (4.9) |
| Input Power Heating kW (Rated (Min – Max)) | 3.89 (4.9) |
| EER Cooling kW/kW | 3.21 |
| COP Heating kW/kW | 4.07 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 3 / 3 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.764 / 4.548 / 4.842 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.119 / 5.331 / 5.773 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.119 / 5.331 / 5.773 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.139 / 4.658 / 4.043 |
| Running Current amps (Cooling / Heating) | 6.4 / 5.5 |
| Moisture Removal l/hr | 4.8 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 46 / 36 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 46 / 36 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 55 / 57 |
| Outdoor Sound Power dBA | 71 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 542 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 542 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 288 x 840 x 840 |
| Indoor Unit Weight kg | 29 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 940 x 320 |
| Outdoor Unit Weight kg | 67 |
| Grill Weight | 6 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 2,180 |
Description
12.50kW Cooling
14.00kW Heating
CIRCULAR FLOW | R32 | WIRELESS CONTROLLER
