Fujitsu SET-AUTH45KRTA-3PH-T5 12.5kW Circular Flow Cassette Air Conditioner

SKU: SET-AUTH45KRTA-3PH-T5 / AUTH45KRTA / AOTH45KRTA / UTG-UKTB-W / UTY-RNRYT5

12.5 kW Cooling | 14.0 kW Heating | 3 Phase
Fujitsu SET-AUTH45KRTA-3PH-T5 12.50kW Circular Flow Cassette Air Conditioner

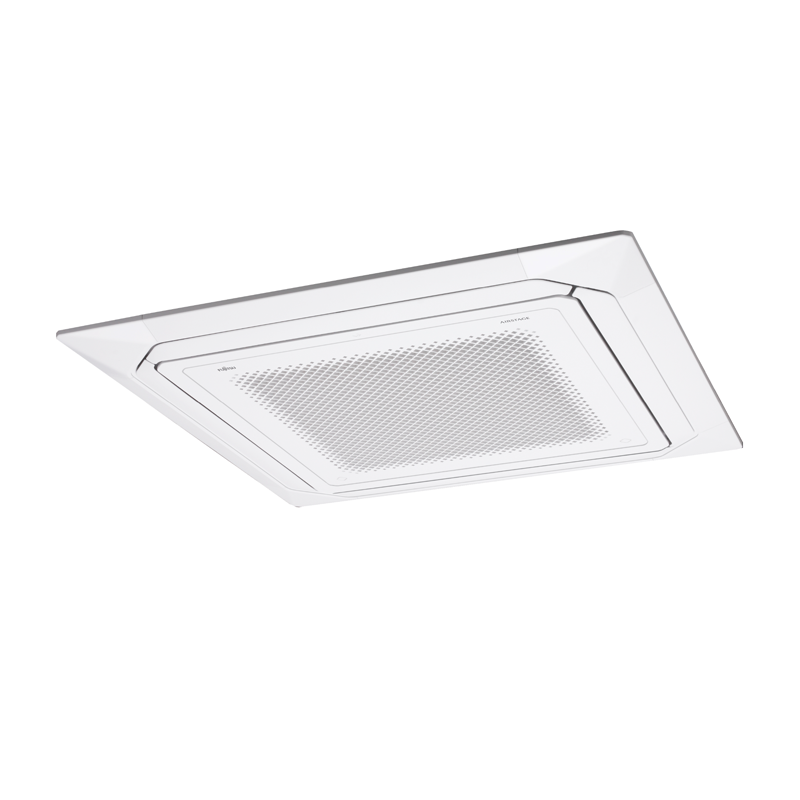

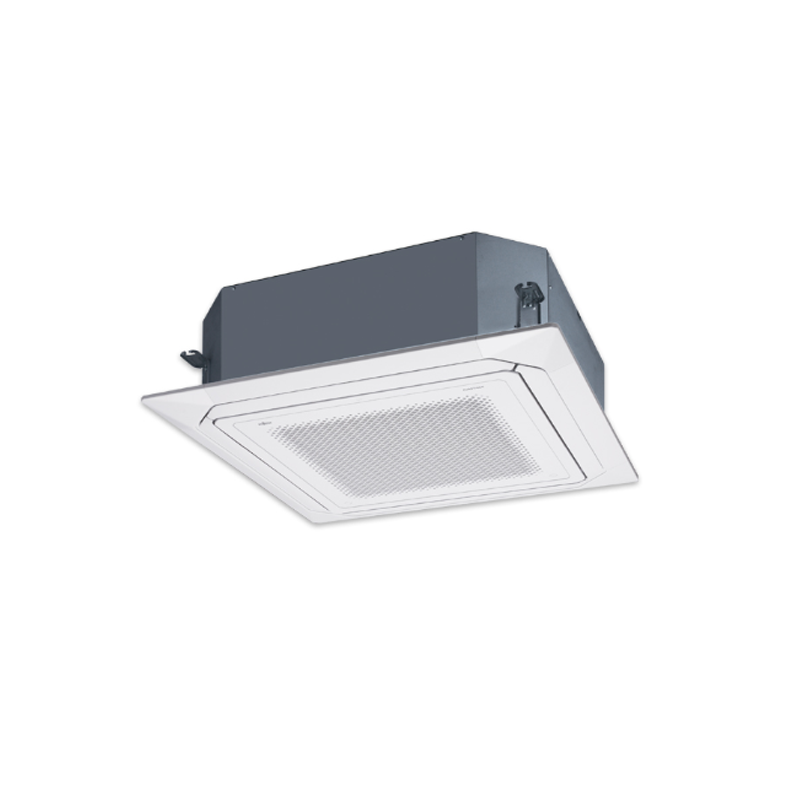

Indoor AUTH45KRTA Outdoor AOTH45KRTA Grill UTG-UKTB-W
Wired Controller | Grill | Washable Panel | Automatic Air Flow Adjustment | Automatic Fan Speed

  • Blue Fin Heat Exchanger
  • Economy Mode

5 Years Manufacturer’s Warranty



$4,845.00

> > >
Indoor Model AUTH45KRTA

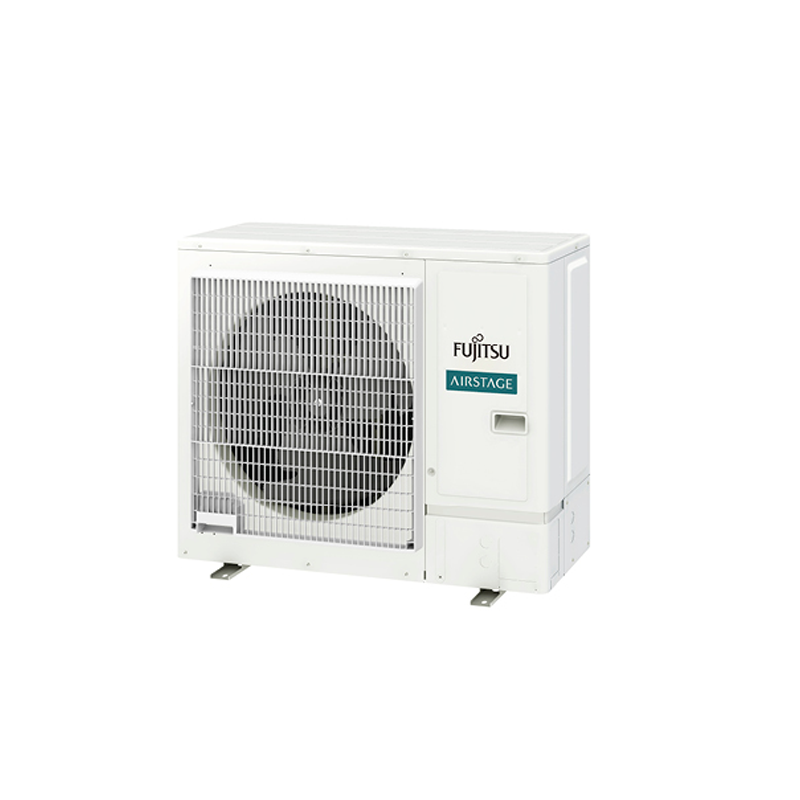

Outdoor Model AOTH45KRTA

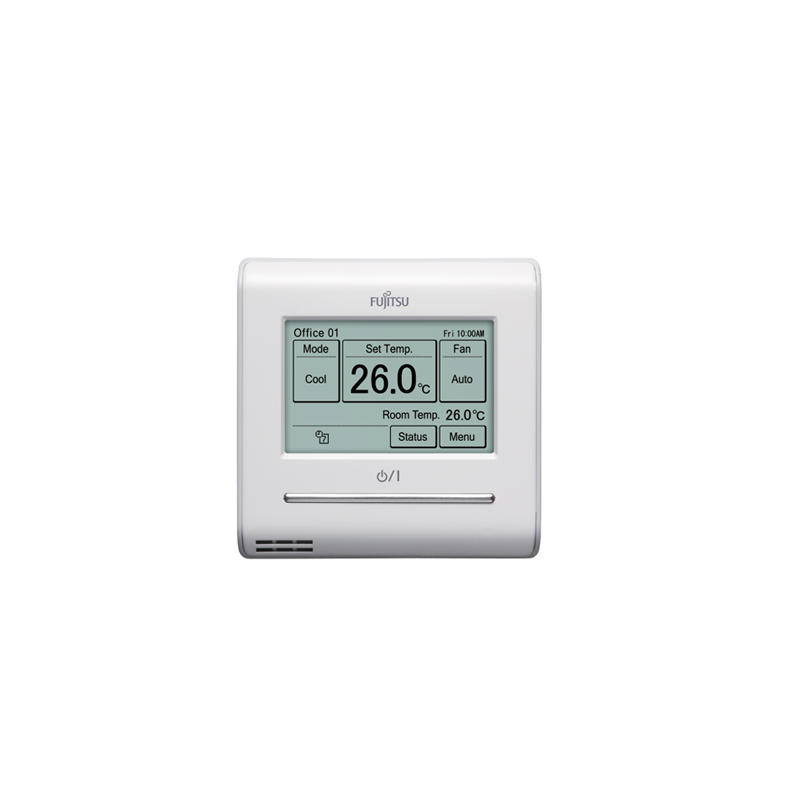

Controller Model UTY-RNRYT5
Operation Type Reverse Cycle
Power Source 400 / 3 / 50
Cooling Capacity 12.50 (4 – 14)
Heating Capacity 14.00 (4.2 – 16.5)
Input Power Cooling 3.89 (4.9)
Input Power Heating 3.89 (4.9)
EER Cooling 3.21
COP Heating 4.07
Star Rating Cooling 3 / 3 / 3
Star Rating Heating 3.5 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential 4.764 / 4.548 / 4.842
Heating Seasonal Performance Factor Residential 5.119 / 5.331 / 5.773
Total Cooling Seasonal Performance Factor Commercial 5.119 / 5.331 / 5.773
Heating Seasonal Performance Factor Commercial 5.139 / 4.658 / 4.043
Running Current 6.4 / 5.5
Moisture Removal 4.8
Indoor Sound Pressure Cooling 46 / 36
Indoor Sound Pressure Heating 46 / 36
Outdoor Sound Pressure 55 / 57
Outdoor Sound Power 71
Air Circulation (Indoor – High Fan) Cooling 542
Air Circulation (Indoor – High Fan) Heating 542
Indoor Unit Dimensions 288 x 840 x 840
Indoor Unit Weight 29
Outdoor Unit Dimensions 998 x 940 x 320
Outdoor Unit Weight 67
Grill Weight 6
Piping Connects 9.52 / 15.88
Pipe Length 50 (30)
Max Height Difference 30
Operation Range Cooling -10 to 50
Operation Range Heating -15 to 24
Refrigerant Type R32
Refrigerant Amount 2,180

Key features
Features a seamless airflow design that allows air to be directed to every corner of the room.

  • Auto Restart
    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
  • Auto Changeover The unit automatically switches between operating modes based on the temperature setting and room temperature.
  • Automatic Air Flow Adjustment The micro-processor automatically adjusts the air flow to follow changes in room temperature.
  • Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
  • Blue Fin Heat Exchanger Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
  • Circular Flow Distribution Creates a consistent and even temperature via multi-directional 360˚ airflow functionality.
  • Demand Response This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.
  • Economy Mode Limits the maximum operation current, and performs operation with the power consumption suppressed.
  • Filter Sign Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
  • On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
  • Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
  • Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
  • Washable Panel Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.
  • Weekly Timer Different ON-OFF times can be set for up to 7 days.
  • 10°C Heat Operation The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

Fujitsu SET-AUTH45KRTA-3PH-T5 12.50kW Circular Flow Cassette Air Conditioner – Brochure

Description

12.5kW Cooling
14.0kW Heating

Circular Flow | Economy Mode | Blue Fin Heat Exchanger | 3 Phase
