Fujitsu SET-AUTH24KVLA 7.1kW Compact Cassette Air Conditioner System | R32
7.10kW Cooling | 8.00kW Heating
Fujitsu SET-AUTH24KVLA Compact Cassette System

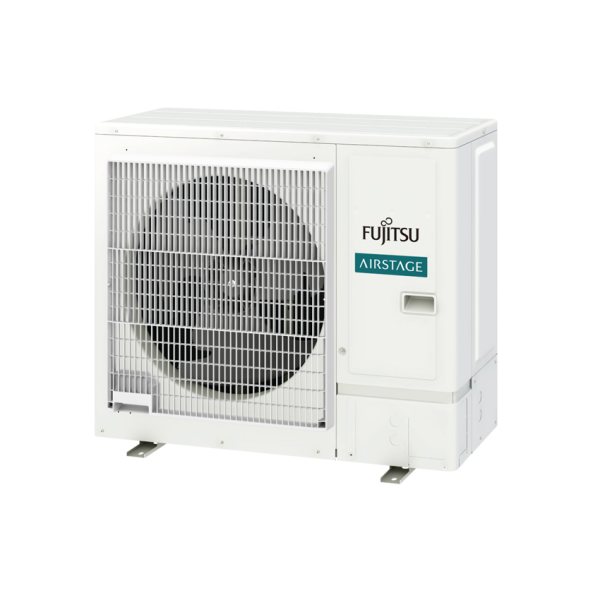

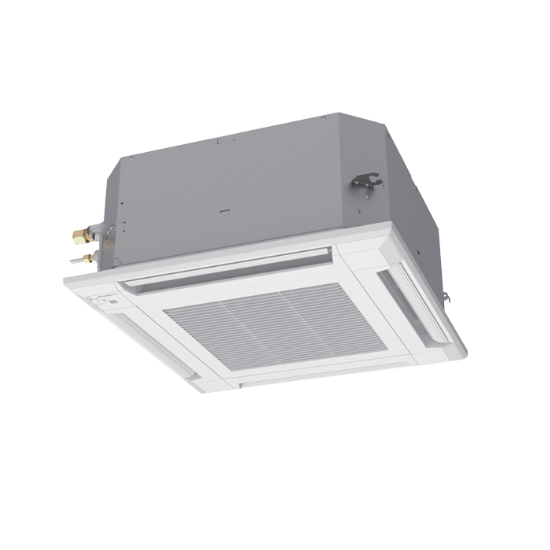

Includes Indoor – AUTH24KVLA | Outdoor – AOTH24KBTB

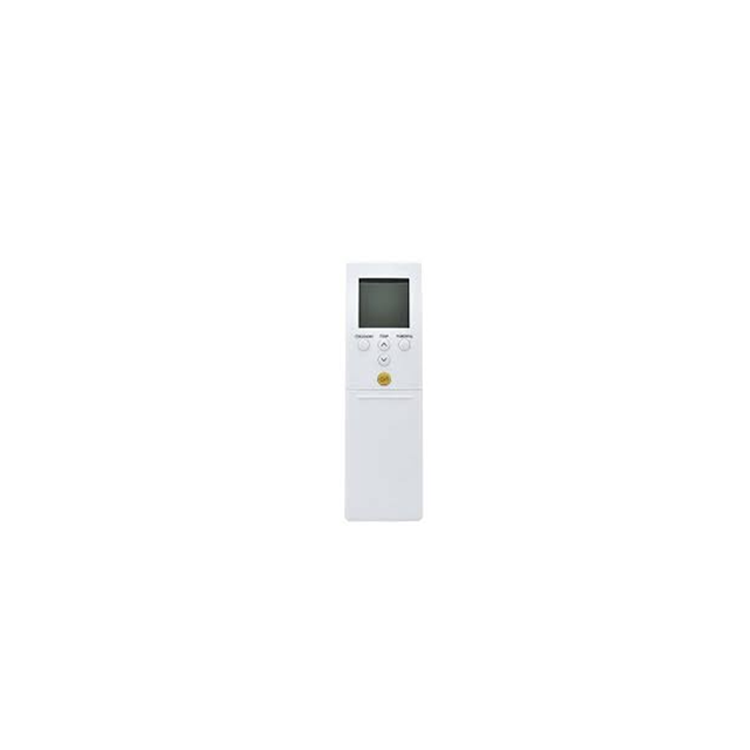

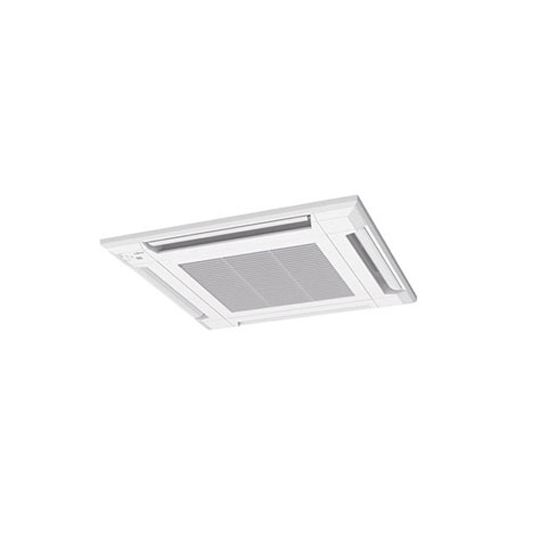

Grille UTG-UFYF-W | Controller AR-REJ1E
5 Years Manufacturer’s Warranty
| Indoor unit | AUTH24KVLA |
| Outdoor unit | AOTH24KBTB |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 7.10 (1.5 – 7.8) |
| Heating Capacity kW (Rated (Min – Max)) | 8.00 (1.4 – 8.4) |
| Input Power Cooling kW (Rated (Max)) | 2.16 (2.72) |
| Input Power Heating kW (Rated (Max)) | 2.21 (2.71) |
| EER Cooling kW/kW | 3.29 |
| COP Heating kW/kW | 3.62 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.401 / 4.187 / 4.365 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.58 / 4.044 / 3.533 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.685 / 4.789 / 5.119 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.588 / 4.265 / 3.822 |
| Running Current amps (Cooling / Heating) | 9.6 / 9.7 |
| Moisture Removal l/hr | 3.4 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 30 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 50 / 33 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 54 / 50 |
| Outdoor Sound Power dBA | 69 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 258 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 286 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 245 x 570 x 570 |
| Indoor Unit Weight kg | 16 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 53 |
| Grill Dimensions mm (Height x Width x Depth) | 49 x 620 x 620 |
| Grill Weight kg | 2.3 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,500 |
Key features
Easy installation and compact design. These compact cassette models are extremely discreet with a non-intrusive grille design that sits level with the ceiling. Air can be distributed throughout the space in up to four directions.
-
All DCWith All DC, electricity loss is decreased and power consumption reduced.
-
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
-
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
-
Automatic Air Flow AdjustmentThe micro-processor automatically adjusts the air flow to follow changes in room temperature.
-
Automatic LouvreThe position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
-
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
-
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
-
Filter SignSelect appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
-
i-PAMi-PAM inverter technology enables high output and high efficiency performance.
-
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
-
Program TimerThis timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
-
Removable Intake GrillThe indoor unit’s intake grille can be removed for easy cleaning and maintenance.
-
Sleep TimerThe micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
-
Super Quiet ModeThe indoor units fan can operate at a low speed to produce quieter operation.
-
Up/Down Swing LouvreThe up/down louvre automatically swings up and down.
-
V-PAMv-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.
-
Washable PanelDust that accumulates on the air conditioner can be easily cleaned with a damp cloth.
-
10°C Heat OperationThe room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
Description
7.10kW Cooling
8.00kW Heating
4-Way Flow Compact
