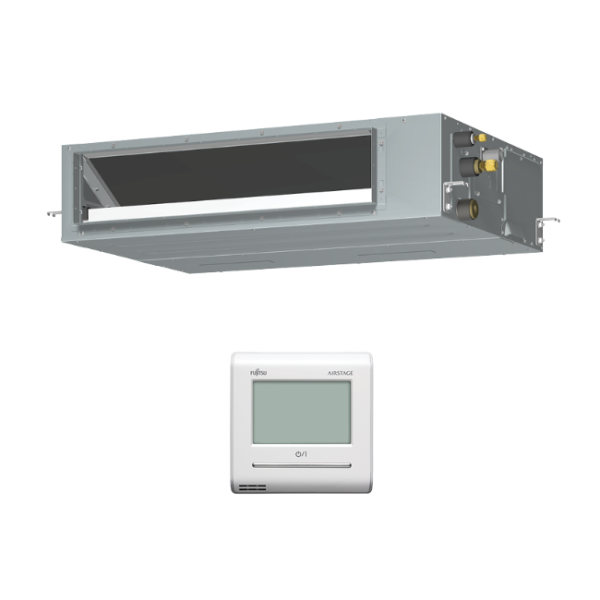

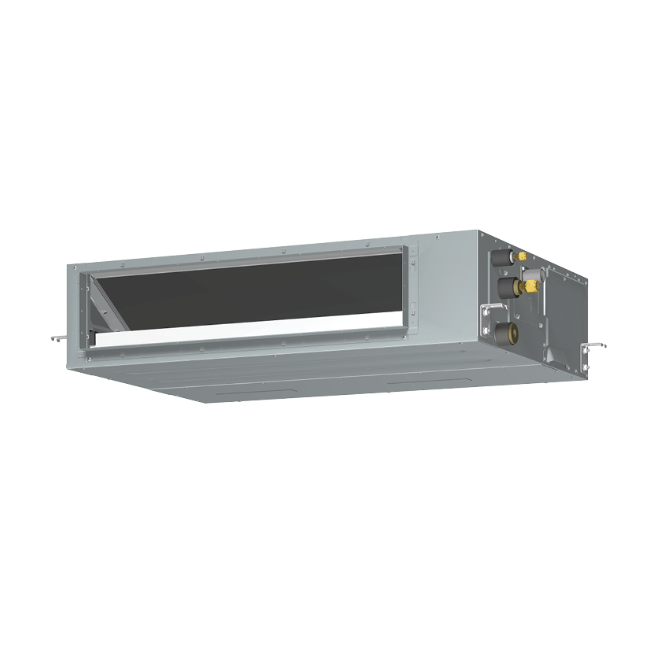

FUJITSU ARTH24KMTAP 7.0kW Multi System Ducted Mid Static Slimline Air Conditioner Indoor Only

SKU: ARTH18KMTAP-1

7.0 kW Cooling | 7.0 kW Heating
FUJITSU ARTH24KMTAP 7.0kW Multi System Ducted Mid Static Slimline Air Conditioner Indoor Only

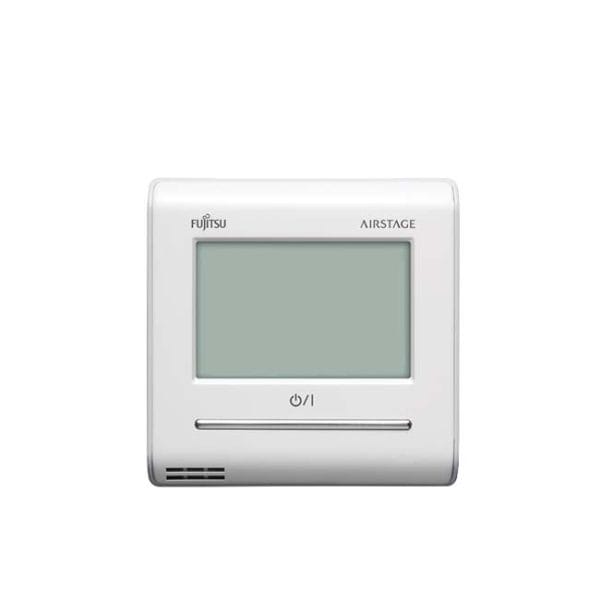

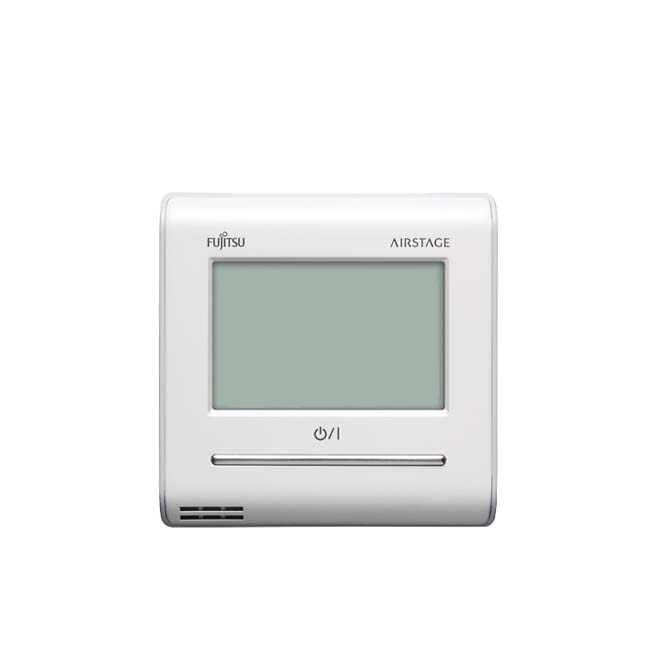

Wired Controller | Automatic Fan Speed | Auto Changeover | Combination Patterns

  • Narrow 240mm high chassis
  • 700mm Depth Indoor

5 Years Manufacturer’s Warranty
Part of a multi system



$1,310.00

> > > >
Operation Type Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Capacity Class kW 7
Running Current amps (Cooling / Heating) 0.6 / 0.6
Indoor Sound Pressure Cooling dBA (High / Quiet) 38 / 27
Indoor Sound Pressure Heating dBA (High / Quiet) 38 / 27
Static Pressure Range PA (Min to Max) 50 to 150
Air Circulation (Indoor – High Fan) Cooling l/sec 417
Air Circulation (Indoor – High Fan) Heating l/sec 417
Indoor Unit Dimensions mm (Height x Width x Depth) 240 x 1000 x 700
Indoor Unit Weight kg 31.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Operation Range Cooling °CDB (Min to Max) 18 to 32
Operation Range Heating °CDB (Min to Max) 16 to 30
Refrigerant Type R32

Key features
The Fujitsu General Mid Static Slimline R32 air conditioning models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.

  • Zone Control
    This function enables efficient air-conditioning by selecting specific zones from the various zones divided within the indoor space.
  • Auto Restart
    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
  • Auto Changeover
    The unit automatically switches between operating modes based on the temperature setting and room temperature.
  • Blue Fin Heat Exchanger
    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
  • Connectable Distributing Duct
    Systems are capable of attaching a field-supplied branch ducts distributing the airflow.
  • Connectable Fresh Air Duct
    Allows introduction of fresh air to the occupied space.
  • Demand Response
    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.
  • Economy Mode
    Limits the maximum operation current, and performs operation with the power consumption suppressed.
  • Filter Sign
    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
  • On-Off Timer
    ON-OFF timer can be set to operate once every 24 hours.
  • Program Timer
    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
  • Weekly Timer
    Different ON-OFF times can be set for up to 7 days.
  • In-Built Drain Pump
    The drain pump is in-built into the system.
  • Automatic Fan Speed Adjustment
    The micro-processor automatically adjusts air flow to follow changes in room temperature
  • Operating Temperature Range 50°C
    The maximum guaranteed operating temperature range to 50 degrees in cooling mode.
  • Demo Mode
    This function allows the indoor unit to be operated alone at exhibitions and showrooms.

FUJITSU ARTH18KMTAP 4.9kW Multi Type System Ducted Mid Static Air Conditioner Indoor Unit Only | R32 – Brochure

Description

7.0 kW Cooling
7.0 kW Heating

Ducted (700mm Depth Bulkhead) | Economy Mode | Auto Changeover
