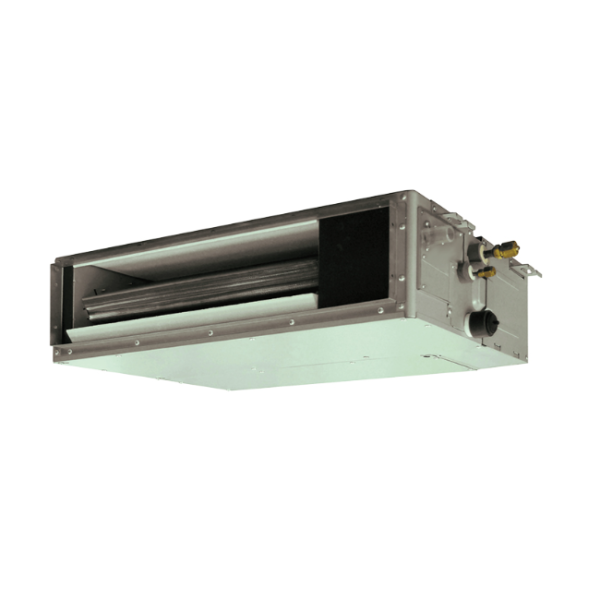

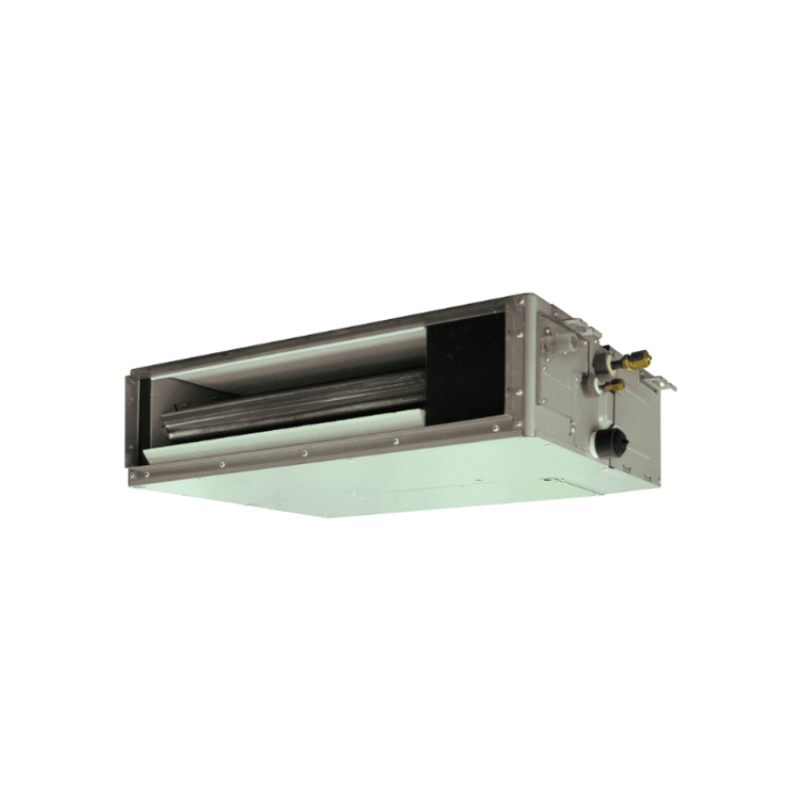

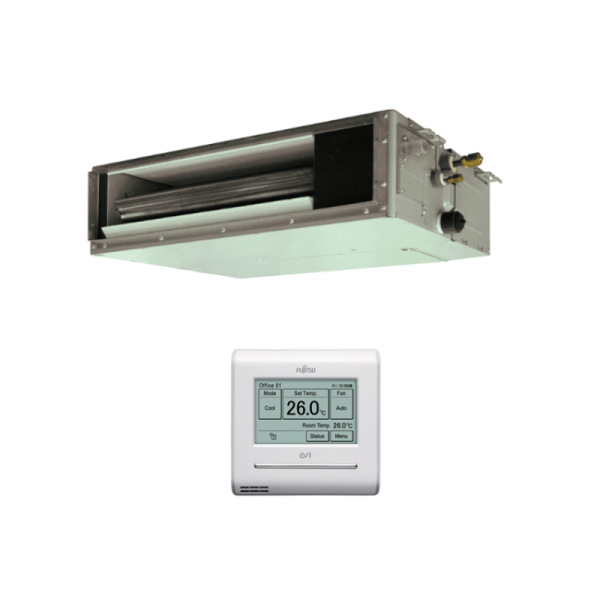

Fujitsu ARTH12KSLAP Multi Systems R32 Bulkhead Range (450mm Bulkhead) | Indoor Only
3.5kW Cooling – 4.2kW Heating Capacity.
Indoor Unit: ARTH12KSLAP | R32
Part of a Multi System
5 Years Manufacturer’s Warranty
| Model Number | ARTH12KSLAP |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 3.5 |
| Running Current amps (Cooling / Heating) | 0.38 / 0.38 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 31 / 23 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 31 / 23 |
| Static Pressure Range PA (Min to Max) | 0 to 30 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 181 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 181 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 198 x 700 x 450 |
| Indoor Unit Weight kg | 15.5 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Operation Range Cooling °CDB (Min to Max) | 18 to 32 |
| Operation Range Heating °CDB (Min to Max) | 16 to 30 |
| Refrigerant Type | R32 |
3.5 kW Cooling
4.2 kW Heating
Ducted (450mm Bulkhead) | R32 Range
9 Max Connectable Indoors Units
