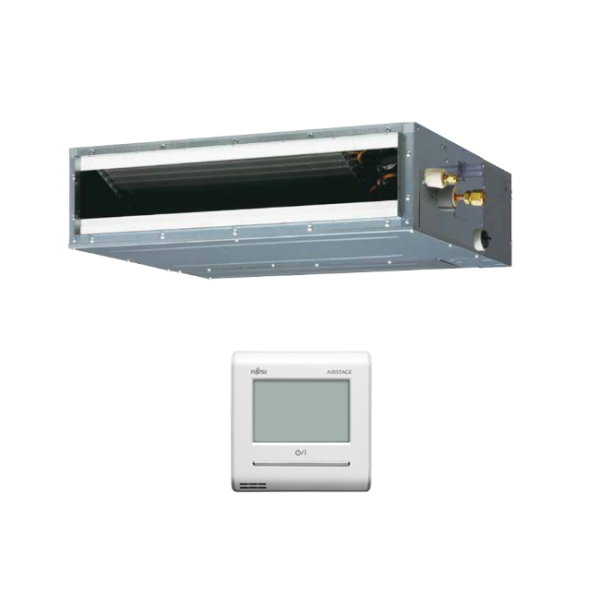

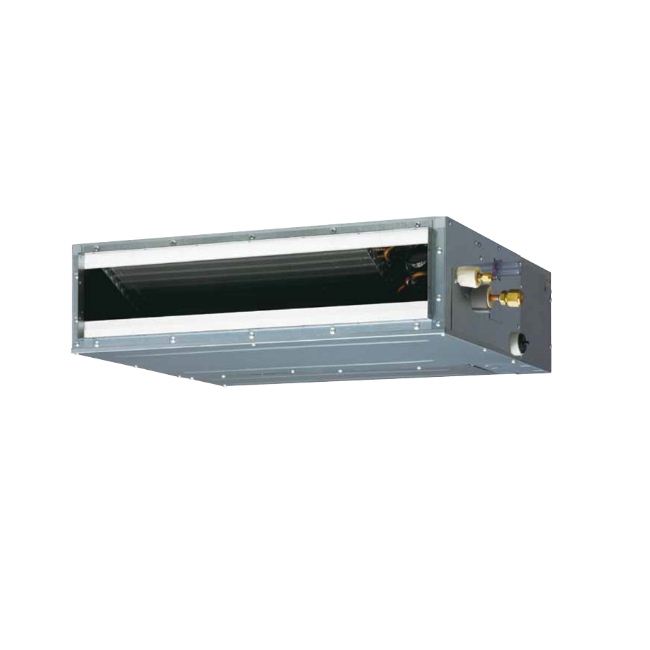

FUJITSU ARTH12KLLAP 3.5kW Multi Type System Bulkhead Air Conditioner Indoor Unit Only | R32
Fujitsu ARTH12KLLAP Multi Systems R32 Bulkhead Range (620mm Bulkhead) | Indoor Only
3.5kW Cooling – 4.2kW Heating Capacity.
Indoor Unit: ARTH12KLLAP | R32
Part of a Multi System
5 Years Manufacturer’s Warranty
| Model Number | ARTH12KLLAP |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 3.5 |
| Running Current amps (Cooling / Heating) | 0.35 / 0.35 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 29 / 26 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 29 / 24 |
| Static Pressure Range PA (Min to Max) | 0 to 90 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 181 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 181 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 198 x 700 x 620 |
| Indoor Unit Weight kg | 17 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Operation Range Cooling °CDB (Min to Max) | 18 to 32 |
| Operation Range Heating °CDB (Min to Max) | 16 to 30 |
| Refrigerant Type | R32 |
Description
3.5 kW Cooling
4.2 kW Heating
Ducted (620mm Bulkhead) | R32 Range
