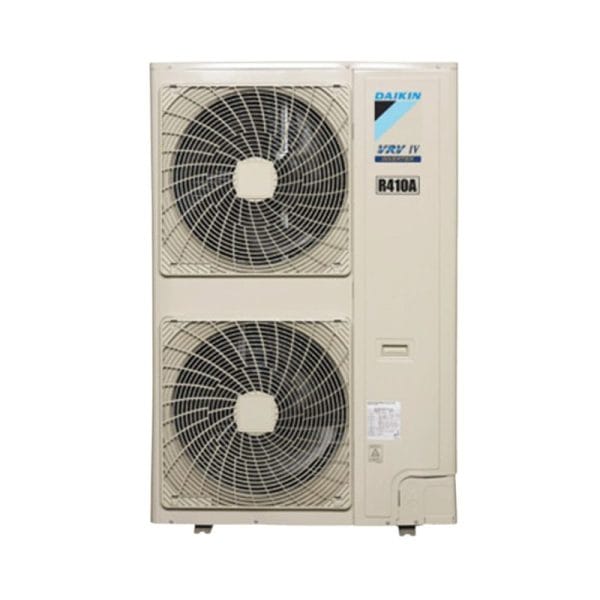

DAIKIN RXYMQ9AY1 24.0kW VRV IV-S Reverse Cycle Multi System Air Conditioner Outdoor Unit Only | R410A
24.0kW VRV IV-S Reverse Cycle Multi System Outdoor Only
Outdoor Unit RXYMQ9AY1 | R410A Refrigerant
Capacity Index: 107.5-280 (max of 14 indoor units connectable)
Part of a Multi System
5 Years Manufacturer’s Warranty
| MODEL | RXYMQ9AY1 | ||
| Power Supply | 3-phase, 380-415 V, 50 Hz | ||
| Cooling Capacity | kcal/h | 20,600 | |
| Btu/h | 81,900 | ||
| kW | 24 | ||
| Heating Capacity | kcal/h | 22,400 | |
| Btu/h | 88,700 | ||
| kW | 26 | ||
| Power Consumption | Cooling | kW | 6.88 |
| Heating | 6.82 | ||
| Capacity Control | % | 20 to 100 | |
| Casing Colour | Ivory white (5Y7.5/1) | ||
| Compressor | Type | Hermetically sealed scroll type | |
| Motor Output | kW | 4.8 | |
| Airflow Rate | l/s | 2,333 | |
| mᶟ/min | 140 | ||
| Dimensions (HxWxD) | mm | 1,430 x 940 x 320 | |
| Machine Weight | kg | 138 | |
| Sound level (Cooling/Heating) | dB(A) | 58/59 | |
| Sound power | dB(A) | 76 | |
| Operation Range | Cooling | °CDB | -5 to 46 |
| Heating | °CWB | -20 to 15.5 | |
| Refrigerant | Type | R-410A | |
| Charge | kg | 5.8 | |
| Piping connections | Liquid | mm | ø9.5 (Brazing) |
| Gas | ø22.2 (Brazing) | ||
| Connectable Units | Up to 14 | ||
Description
24.0kW Cooling
26.0 kW Heating
26.0 kW Heating
3 Phase
14 Max Connectable Indoors Units
