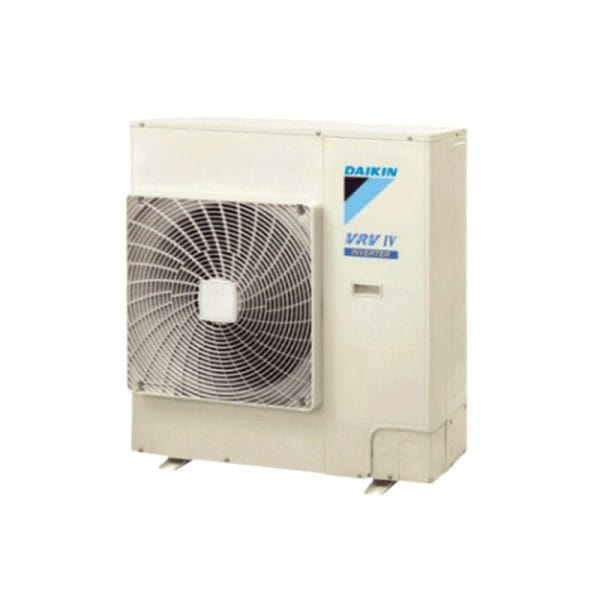

DAIKIN RXYMQ6B2VM 16.0kW VRV IV-S Reverse Cycle Multi System Air Conditioner Outdoor Unit Only | R410A

SKU: RXYMQ6B2VM

16.0kW VRV IV-S Reverse Cycle Multi System Outdoor Only

Outdoor Unit RXYMQ6B2VM
9 Indoor Units | R410A Refrigerant

Part of a Multi System
5 Years Manufacturer’s Warranty

MODEL			RXYMQ6B2VM
Power Supply			1-phase, 220-240 V/220-230 V, 50/60 Hz
Cooling Capacity
		Btu/h	54,600
		kW	16
Heating Capacity
		Btu/h	54,600
		kW	16.0
Power Consumption	Cooling	kW	4.51
Power Consumption	Heating	kW	3.59
AEER★ ACOP★ TCSPF★ (Cooling) Commercial / Residential Capacity Control		Cooling Heating Hot Average Cold %	3.31 4.09 5.16 / 4.7 5.11 / 3.97 5.40 / 3.99 15 to 100
HSPF★ (Heating) Commercial / ResidentialCasing colour	Hot Average Cold Ivory white (5Y7.5/1)		4.28 / 4.30 4.14 / 4.08 3.84 / 3.71
Compressor	Type		Hermetically sealed swing type
Compressor	Motor Output	kW	3.7
Airflow Rate		l/s	1,333
Airflow Rate		mᶟ/min	80
Dimensions (HxWxD)		mm	990×940×320
Machine Weight		kg	80
Sound level (Cooling/Heating)		dB(A)	55/56
Sound power		dB(A)	76
Operation Range	Cooling	°CDB	-5 to 46
Operation Range	Heating	°CWB	-20 to 15.5
Refrigerant	Type		R-410A
Refrigerant	Charge	kg	4.0
Piping connections	Liquid	mm	ø9.5 (Flare)
Piping connections	Gas	mm	ø19.1 (Flare)
Connectable Units			Up to 9

Description

16.0 kW Cooling
18.0 kW Heating

1 Phase

9 Max Connectable Indoors Units
