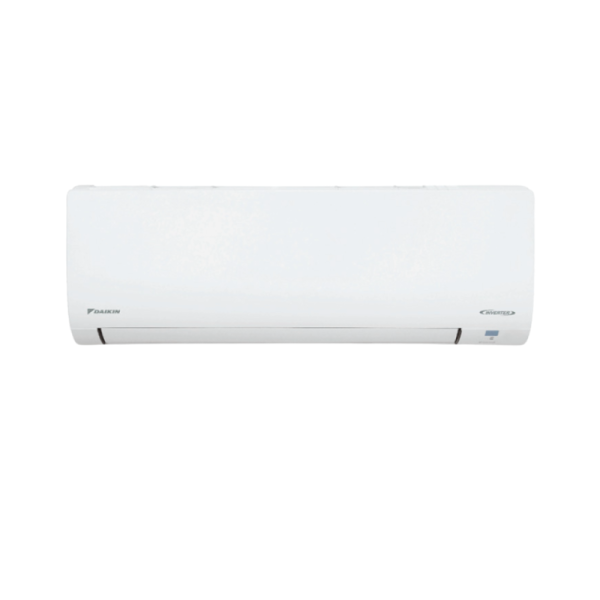

DAIKIN CTXF35TVMA 3.5kW Multi-Lite Air Conditioner Indoor Unit Only | R32

SKU: CTXF35TVMA

3.5 kW Cooling
3.5 kW Heating

DAIKIN Multi-Lite 3.5kW Indoor Unit Only
Indoor Unit CTXF35TVMA | Wireless Controller Included

Part of a Multi System
5 Years Manufacturer’s Warranty




> > > >
Indoor Unit CTXF35TVMA
Power Supply
1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 3.5
Front Panel Colour Pure White
Airflow Rate (H)
Cool (l/s) 177
Heat (l/s) 200
Sound Level (H/L/SL)
Cool (dBA) 42/28/19
Heat (dBA) 42/29/20
Sound Power Level (H)
Cool (dBA) 56
Heat (dBA) 56
Fan Speed 5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 285x770x223
Machine Weight (kg) 9
Piping Connections
Liquid (mm) 6.4 (Flared)
Gas (mm) 9.5 (Flared)
Drain (mm) 16

ECONOMICAL, COMPACT AND WHISPER QUIET

If you’re after air conditioning for two separate rooms, Daikin Multi Lite is the ideal solution. It takes only one outdoor unit to maintain comfort in both rooms.

R32 refrigerant

66% lower ‘Global Warming Potential Factor’ than R410A, providing less risk of harm to the environment.

Individual comfort

Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants in the household at anytime.*

Optional Wi-Fi control

Each indoor unit can be fitted with Daikin’s optional Mobile Controller (BRP072C42) allowing you to control your system from anywhere, anytime.

Lite Series Indoors

Indoor unit design is based on the Lite Series split system, harnessing all features and specifications and available in 20, 25, 35 and 50 Class models.

Connectability

Up to two wall mounted indoor units can be connected to Multi Lite with a maximum combination of 25 + 50 Class.

Energy efficient

With simultaneous operation of both indoor units, Multi Lite is still able to achieve EERs of up to 3.72 & COPs of up to 4.67 (25 & 50 Class indoor unit combination).

DAIKIN CTXF35TVMA 3.5kW Multi-Lite Air Conditioner Indoor Unit Only | R32 – Brochure

Description

3.5 kW Cooling
3.5 kW Heating

ECONOMICAL COMFORT | Whisper Quiet
