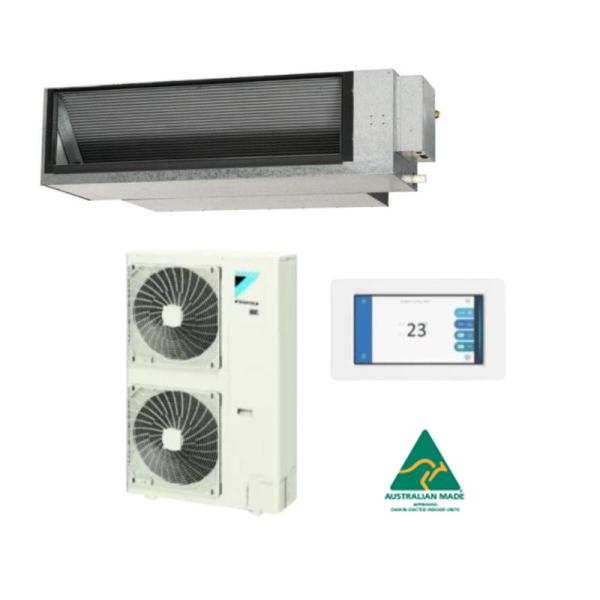

DAIKIN FDYUA160AV19 / RZAS160C2V1 15.5kW Premium Inverter Underfloor Ducted System 1 Phase

SKU: FDYUA160AV19 / RZAS160C2V1

15.5 kW Cooling | 18.0 kW Heating
R32 | SUPERIOR ENERGY PERFORMANCE
Indoor Unit: FDYUA160AV19 (Australia Made) | Outdoor Unit : RZAS160C2V1

Zone Box:
BRC24TLZ4B9 – Linear, Up to 4 Zones (24v) – Controller BRCMTZCB9
BRC24TLZ8B9 – Linear, Up to 8 Zones (24v) – Controller BRCMTZCB9
BRC24TZ4B9 – On / Off, Up to 4 Zones (24v) – Controller BRCMTZCB9
BRC24TZ8B9 – On / Off, Up to 8 Zones (24v) – Controller BRCMTZCB9
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
BRC230Z4B9 – Up to 4 Zones (240v)
BRC230Z8B9 – Up to 8 Zones (240v)





Or own it from $269.19 weekly for 6 months* zip money
Or pay in slices, no interest ever

Or own it from $269.19 weekly for 6 months* zip money
Or pay in slices, no interest ever
> >
INDOOR UNIT FDYUA160AV19
OUTDOOR UNIT RZAS160C2V1
Rated Capacity Cool (kW) 16
Heat (kW) 18
Capacity Range Cool (kW) 7.3-17.0
Heat (kW) 7.0-20.0
Power Input (Rated) Cool (kW) 4.85
Heat (kW) 4.65
E.E.R/C.O.P C/H 3.30/3.87
TCSPF (Residential) Hot/Average/Cold 4.77/4.37/4.55
HSPF (Residential) Hot/Average/Cold 4.55/3.97/3.41
Airflow Rate (Nominal/Max) l/s 950/1120
Indoor Sound Level (H) @ 1.5m dBA (C/H) 47.2/49.6
Piping Length m 75
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm 400x1505x980
Outdoor (mm) 1430x940x320
Weight Indoor (kg) 60
Outdoor (kg) 99
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 295×1152
Return Air Opening mm 2×400 (Oval)
Outdoor Operating Range Cool (CDB) -5 to 50
Heat (CWB) -15 to 16
EPA Sound Power Level dBA 75
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 56/58
  • Industry Leading

    Industry Leading Energy Performance

    Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.



  • Night Quiet Mode

    Night Quiet Mode

    Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.



  • Wide-Capacity Limit

    Increased Operation Limits

    The refrigerant cooled PCB technology incorporated in the outdoor unit enables continuous operations up to 50°CDB ambient.



  • Powerful Heating

    Heating Focus Option

    Heating Focus models are available from 18.0-24.0kW with improved heating performance, ideal for cold climates such as Canberra, Hobart & Melbourne.



  • R22-Retrofit Capability

    R22 Retrofit Capability

    Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).



  • Australian-Made

    Australian Made

    Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.

DAIKIN Ducted Air Conditioner Systems Features

DAIKIN FDYUA160A9-2V4AL24 15.5kW Premium Inverter Underfloor Ducted System 1 Phase – Brochure

Description

15.5 kW Cooling
18.0 kW Heating

R32
