Daikin FCTA50A-VC2V 5kW Premium Streamer Reverse Cycle Cassette Air Conditioner System | 1 Phase
5.0 kW Cooling
6.0 kW Heating

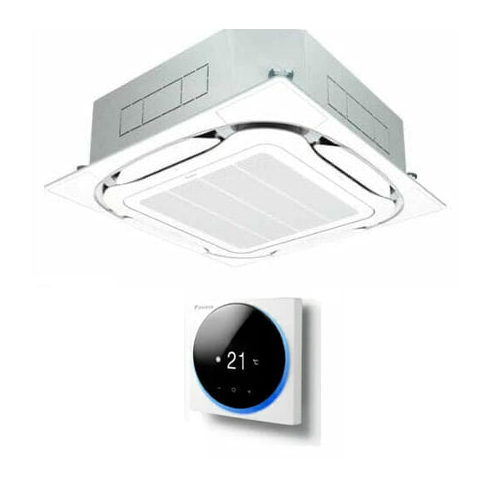

Daikin FCTA50A-VC2V 5kW Premium Streamer Cassette Reverse Cycle – 1 Phase
Includes Indoor – FCTA50AVMA | Outdoor – RZAV50C2V1 | 1 Phase
Fascia – BYCQ125EAF
Wired Controller – BRC1H63W
|
Model Name
|
Indoor unit
|
FCTA50AVMA | |
| FCA50CAVMA | |||
| Outdoor unit | RZAV50C2V1 | ||
| Power supply | 1 Phase, 220-240V, 50Hz | ||
| Cooling capacity1,3 Rated (Min. – Max.) | kW | 5.0 (1.4-6.0) |
|
| Heating capacity2,3 Rated (Min. – Max.) | kW | 6.0 (1.4-7.1) |
|
|
Power consumption
|
Cooling 1 | kW | 1.11 |
| Heating 2 | kW | 1.27 | |
| EER | Cooling | kW/kW | 4.5 |
| COP | Heating | kW/kW | 4.72 |
| AEER | Cooling | 4.3 | |
| ACOP | Heating | 4.53 | |
|
TCSPF (Cooling) Commercial / Residential
|
Hot | 6.31 / 5.72 | |
| Average | 6.09 / 4.64 | ||
| Cold | 6.35 / 4.55 | ||
|
HSPF (Heating) Commercial / Residential
|
Hot | 5.86 / 5.85 | |
| Average | 5.49 / 5.25 | ||
| Cold | 4.96 / 4.64 | ||
|
Indoor unit
|
Colour
|
Unit | ——— |
| Decoration panel | Fresh White | ||
|
Airflow rate (H / HM / M / ML / L)
|
/s | 383 / 350 / 308 / 267 / 225 | |
| m3/min |
23.0 / 21.0 / 18.5 / 16.0 / 13.5
|
||
| Sound pressure level4 (H / HM / M / ML / L) | dB(A) |
37.0 / 36.0 / 34.0 / 31.0 / 27.5
|
|
|
Dimensions (HXWXD)
|
Unit | mm | |
| Decoration panel | mm | ||
|
Machine weight
|
Unit | kg | |
| Decoration panel | kg | ||
|
Certified operation range
|
Cooling | °CWB | |
| Heating | °CDB | ||
| Outdoor | Colour | Ivory White | |
|
unit
|
Compressor
|
Type |
Hermetically sealed swing type
|
| Motor output | kW | ||
| Refrigerant charge (R-32) | kg | 1.35 (Charged for 30 m) |
|
|
Sound pressure level 4
|
Cooling / Heating | dB(A) | |
| Night quiet mode | dB(A) | ||
| Sound power level | dB(A) | 68 | |
| Dimensions (HXWXD) | mm | 595X845X300 | |
| Machine weight | kg | 45 | |
|
Certified operation range
|
Cooling | °CDB | |
| Heating | °CWB | ||
|
Piping connections
|
Liquid (Flare) | mm | o/ 6.4 |
| Gas (Flare) | mm | o/ 12.7 | |
|
Drain
|
Indoor unit | mm | |
| Outdoor unit 5 | mm | ||
| Max. interunit piping length | m | 50 (Equivalent length 70) | |
| Max. installation height difference | m | 30 | |
| Heat insulation | Both liquid and gas piping | ||
Key Features

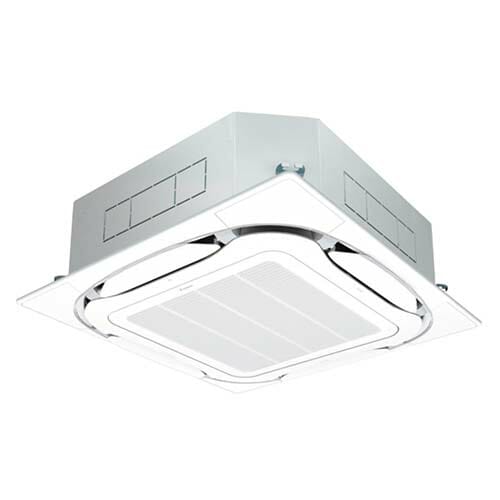

Round Flow Cassette with Streamer
-
Available in – Reverse Cycle (Heating & Cooling)
-
Capacities – Premium Inverter: 5.0kW-14.0kW
-
Refrigerant- R32
The SkyAir Round Flow Cassette with Streamer utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete. Additionally, its built-in Streamer technology facilitates powerful oxidative decomposition of pollutants present on the cassette’s filter for enhanced indoor air quality.
The Round Flow Cassette with Streamer are paired with our Premium Inverter (RZAV) condensers, offering building owners substantial operating efficiencies to help minimise operating costs. R22 retrofit capability is also available on these condensers allowing for a simplified cost effective replacement solution.
Description
